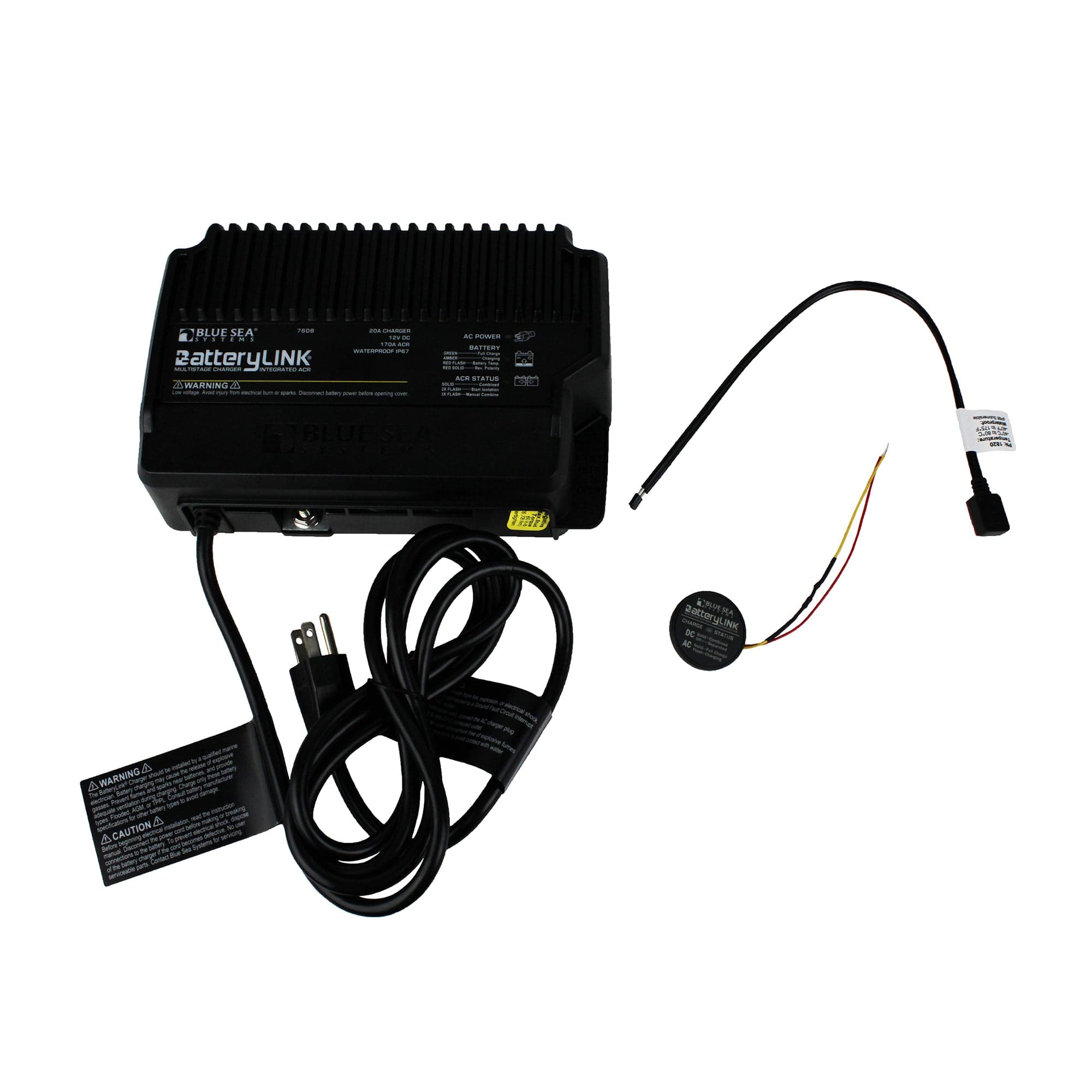

Blue Sea Systems 7608-BSS 12V 20A 2 Bank Battery Charger
Roll over image to zoom in Click on image to zoom
Blue Sea Systems 7608-BSS 12V 20A 2 Bank Battery Charger

Blue Sea Systems 7608-BSS 12V 20A 2 Bank Battery Charger

Blue Sea SystemsSKU: 7608-BSS
Price:
$334.49
Stock:
Sold out
Free Shipping* (Some exclusions apply)true

Description

This is a 12V DC 20A 2 bank battery charger

  • Charge two batteries at or away from the dock with a 20A multistage battery charger and integrated 170A Automatic Charging Relay (ACR)
  • AC charging at the dock: Use AC shore power to charge two isolated battery banks with the 3 Stage 20 Amp battery charger
  • DC charging away from the dock: Share the DC power from the alternator with both the Start and the Auxiliary battery through the integrated 170A ACR
  • Battery Temperature Compensation prolongs battery life
  • Start isolation protects sensitive electronics from voltage sags and spikes
  • Emergency parallel allows remote ability to jump start by combining both batteries if start battery is low
  • Includes LED remote indicator for charge status at the helm
  • Snap-on insulating cover
  • One-piece stainless flange nuts ensure safe and secure connections

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

AC Input Frequency 50/60Hz
ACR Combine Voltage 13.0V (2 min.) / 13.5V (30 sec.)
ACR Continuous Rating 170A
ACR Open Voltage 12.75V (30 sec.) / 12.35V if voltage is rising
Battery Types AGM / Flooded / TPPL
Max 1/4" Terminal Stud Torque 60 in-lb (6.78 Nm)
Max 3/8” Terminal Stud Torque 140 in-lb (15.82 Nm)
Maximum Battery Capacity Recommended: 400Ah (20h rate), Total of both banks
Minimum Battery Capacity Recommended: 100Ah (20h rate), Per bank
Negative Terminal Stud Size 1/4"-20
Nominal Output Voltage 12V DC
Operating Current (no AC power): 10mA
Output Connections 1 Negative / 2 Positive
Output Current 20A DC
Plug Style: North American NEMA 5-15P
Positive Terminal Stud Size 3/8"-16
Typical Absorption Voltage 14.4V DC
Typical Float Voltage 13.5V DC
Universal AC Input Voltage 100-240V AC
Warranty 5 Year from Manufacturer
