Description

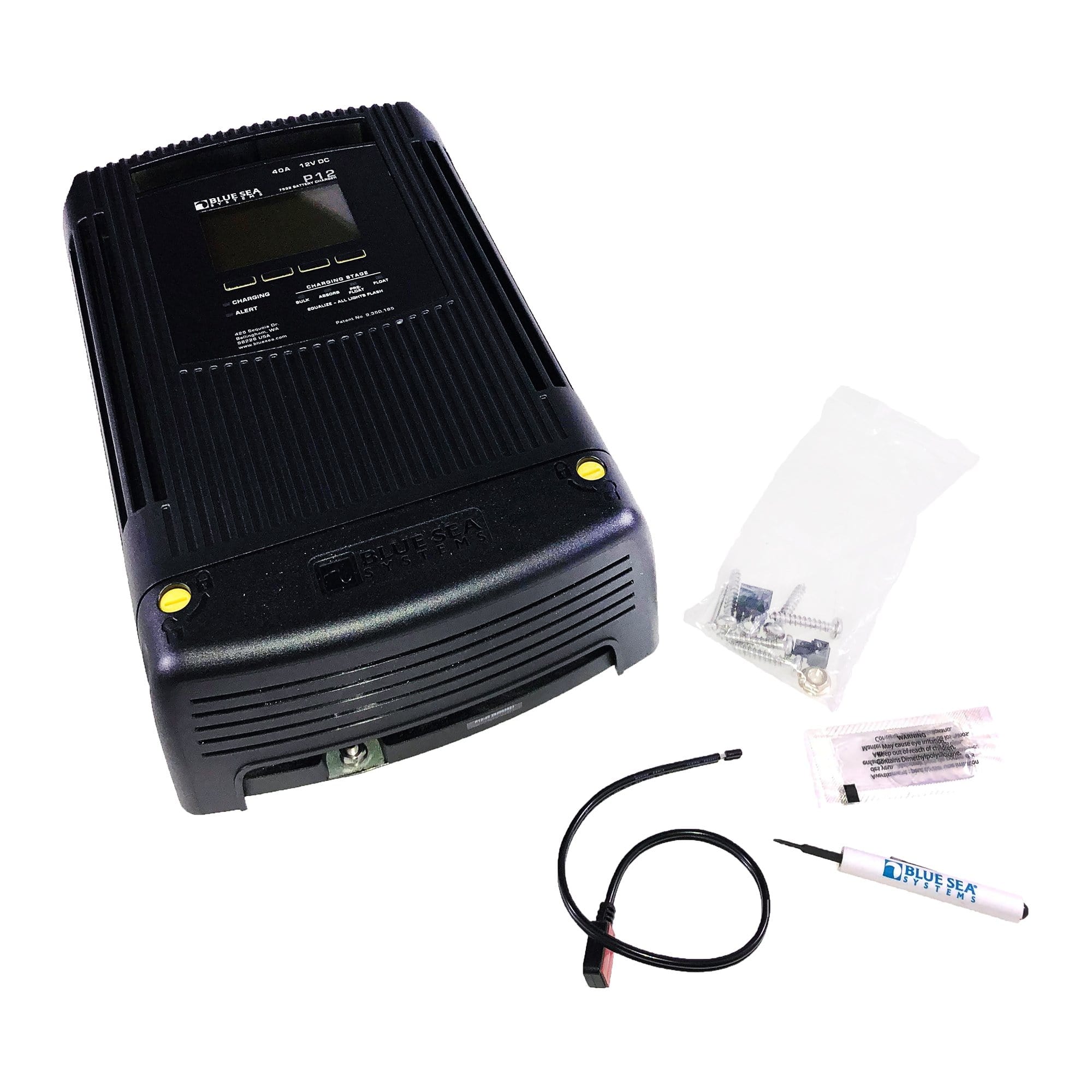

7532-BSS P12 Battery Charger 12V DC 40A
Features:
- Four stage, three output, dry mount design, for use in harsh environments.
- Rugged, finned aluminum case
- PreFloat™ stage prevents over charging
- Power factor corrected for efficient use of AC
- Intuitive diagnostic screens
- User defined charge profiles and customizable settings
- Provides charging for up to three battery banks
- Large, bright display
- Multi-language: English, French, German, Italian, Spanish
- Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper
- float stage for each battery
- Battery Temperature Compensation - adjusts charge voltage based on battery temperature
- AC over and under voltage shut down and automatic restart
- Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value
- DC over voltage and reverse polarity protection
- Surge and short circuit protection
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
ac input | 115-230V AC |
battery types | AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead) |
frequency | 45-65Hz |
ignition protected | Yes |
input ac current | 7.5A @ 100V AC / 3.75A @ 200V AC |
nominal voltage | 12VDC |
operating temperature range | -20┬░ C - 70┬░ C |
output | 1 negative / 3 positive |
output current | 40A |
output voltage | 16VDC |
storage temperature | -30°C - 80°C |
stud size | M6 |
voltage accuracy | 0.05V |
