Description

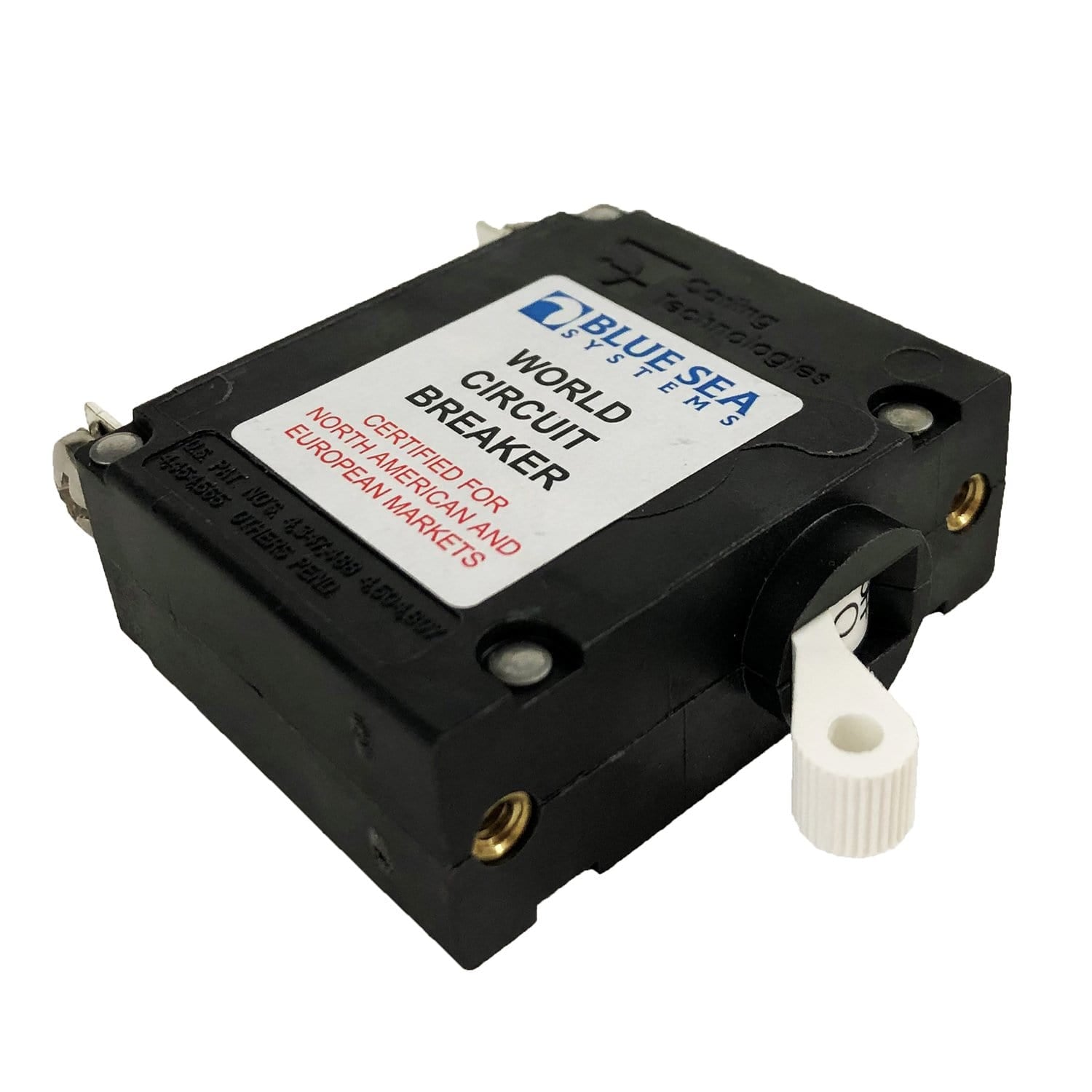

7214-BSS Toggle Circuit Breaker A-Series 20A White
Features:
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems' electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
amperage | 20A AC / 20A DC |
circuit breaker type | Magnetic Hydraulic - trip free |
color | White |
interrupt capacity | 3000A @ 120V AC, 1500A @ 240V AC [TUV], 3000A @ 240V AC [UL 1077], 7500A @ 65V DC |
maximum operating temperature | 85┬░ C |
maximum voltage | 240V AC / 65V DC |
minimum operating temperature | -40┬░ C |
mounting screws | #6-32 Stainless Steel |
mounting screw torque | 6 in-lb (0.68 Nm) |
poles | 1 |
screw terminal torque | 14 in-lb (1.58 Nm) |
style | (Actuator) Toggle |
switching cycles | 10000 |
terminal screws | #10-32 Stainless Steel |
weight | 0.17 lb |
