Description

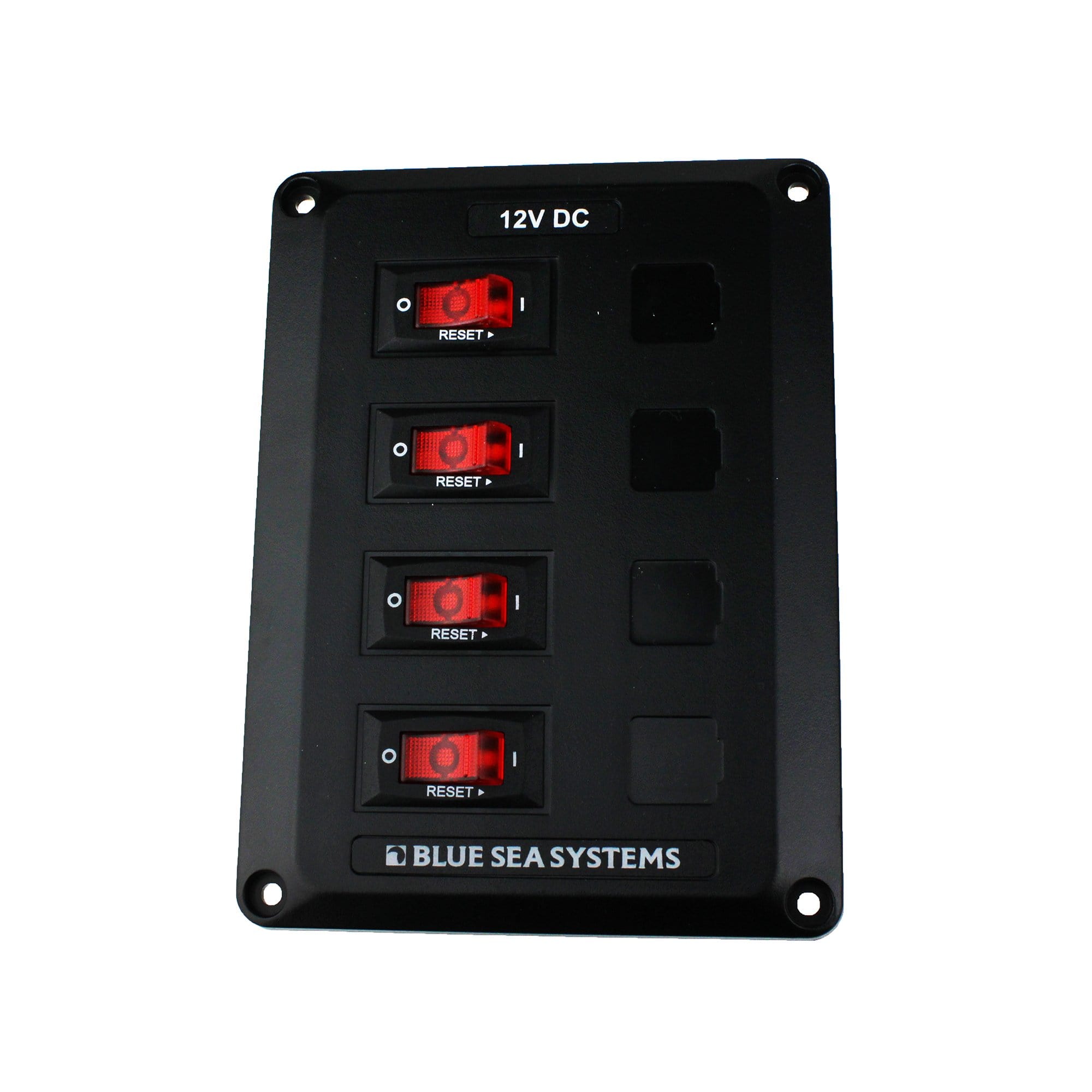

This is a 4 position below deck 12V DC circuit breaker panel. It is Durable, convenient, easy to install, and simple to use.
- Molded panel frame will stand up to UV and salt air
- Low profile makes it easy to install in tight spaces
- Fast-on circuit breaker connectors make it quick to wire
- Red “ON” indicating LEDs for safe operation in low light conditions
- 4 Carling Technologies™ 15A circuit breakers
- Illuminated ON indication
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode

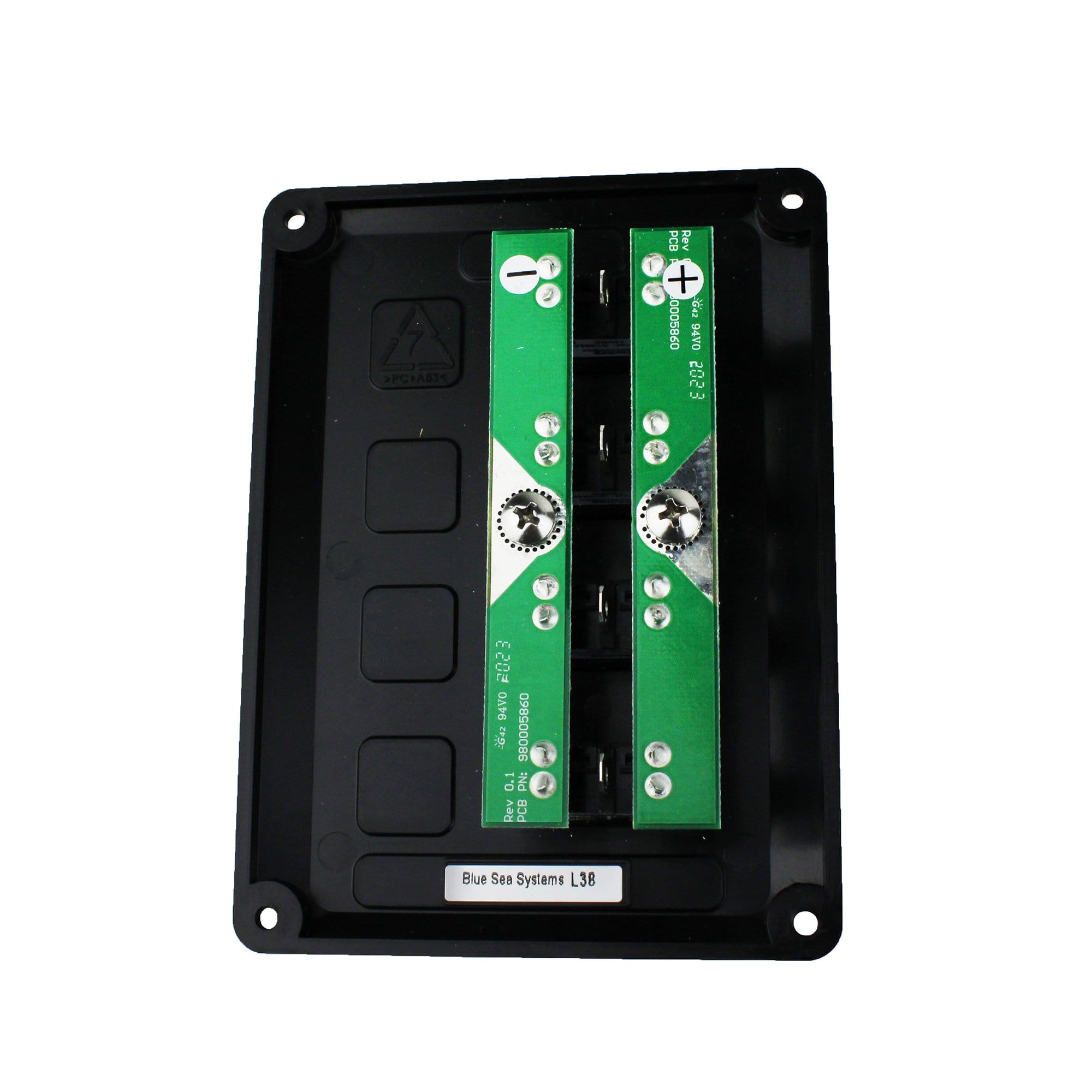

- Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
- Two-wire connection for powering all panels is simple and requires #5 ring terminals. Terminals screw to bus bars for secure connections

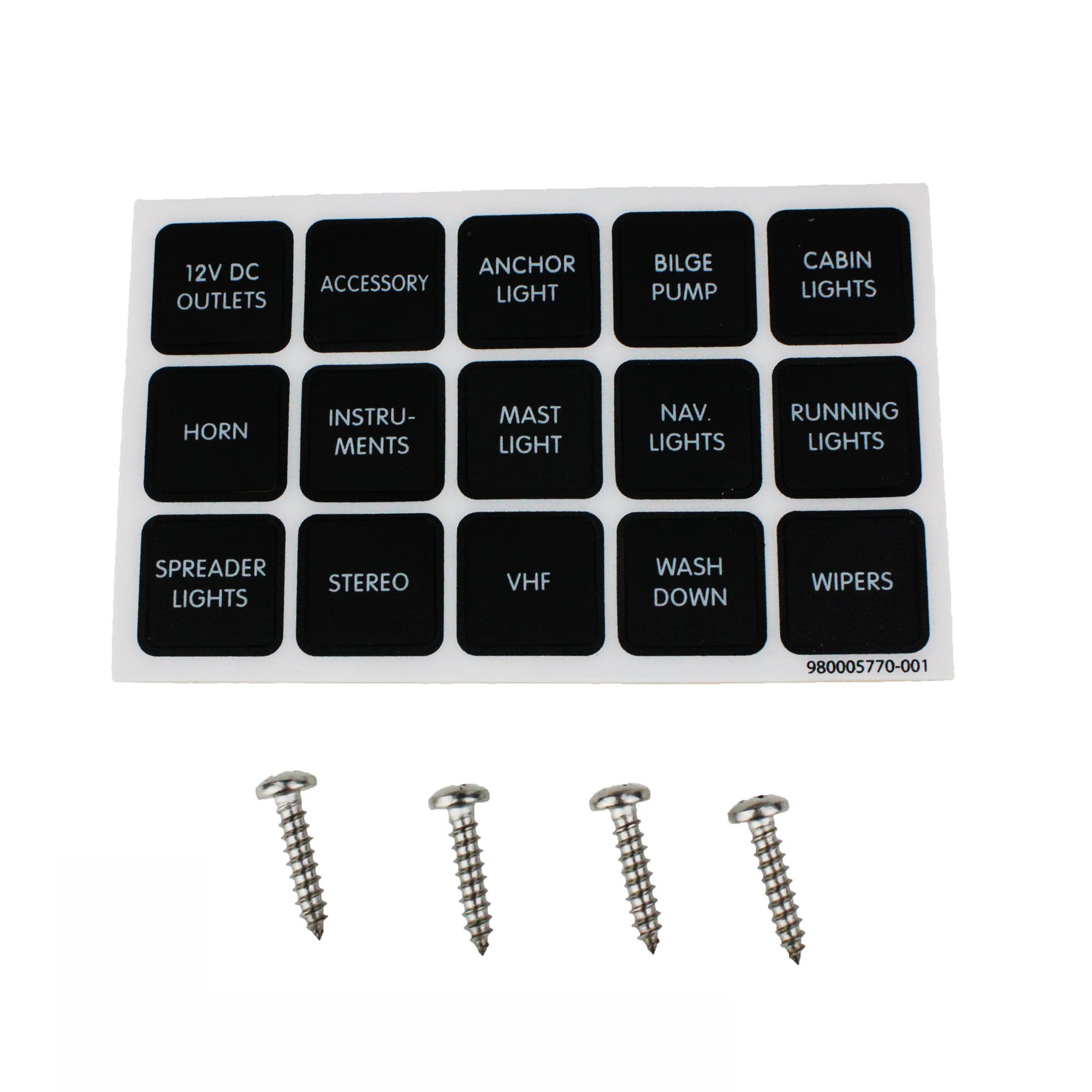

- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
- Stainless steel #6 x 5/8″ mounting screws included
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
Hardware | Stainless-Steel #6 x 5/8" Mounting Screws |
Max. Amperage | 45A |
Nominal Voltage | 12V DC |
Positions | 4 |
Product Depth | 1.75 In. (44.45 cm) |
Product Height | 5.7 In. (144.78 cm) |
Product Width | 4.25 In. (107.95 cm) |
Ring Terminal Size | M5 (#10) |
Terminal Type | 1/4" Male Quick Connect |
