Description

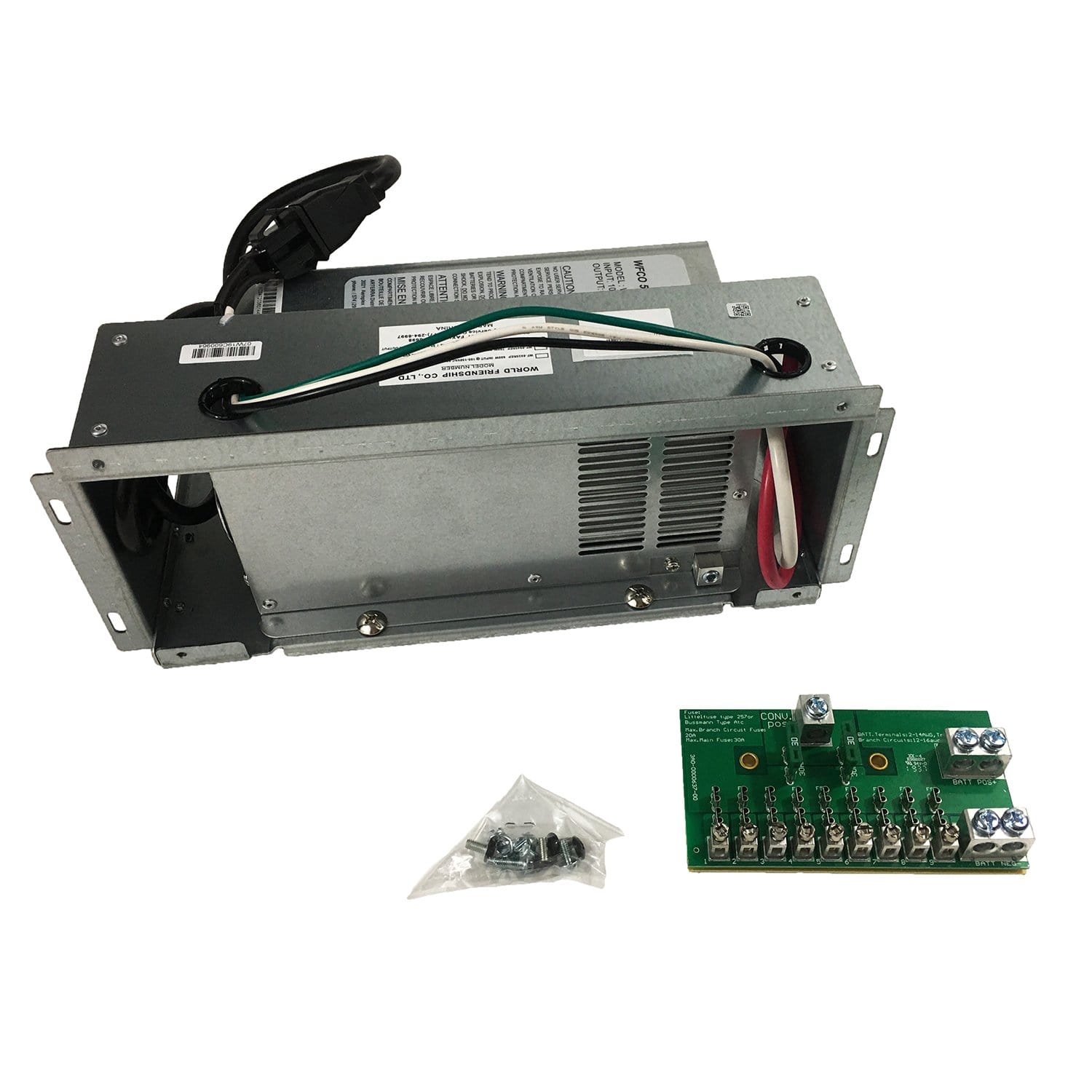

The WF-8955-REP is a replacement power converter kit with a 9855 Deckmount 55 AMP DC output and an 11 circuit fuse.
This replacement power converter kit is fully compatible with the WF-8955AN and features a next generation faceplate design.
The WF-8900 series revolutionized RV power centers featuring a lightweight design, decorative doors, and new features. With a clean and constant 55 Amps with a 13.6 VDC nominal output, this converter is a reliable option for your electronics and appliances. Automatic three-stage charging helps to extend the battery life of your battery with output voltages of 13.2 (VDC “float” mode), 13.6 VDC “absorption” mode, and 14.4 (VDC “bulk” mode).
FCC Class B compliance means the converter will not interfere with televisions, radios, or other signals. Electronic current limiting turns the power down during an overload/short-circuit protecting your power center and electrical system.
This converter can accommodate a 30 Amp main AC circuit breaker as well up to five branch circuits.
Replaces:
- Parallax 7355
- Parallax 6355
- Magnetek 6355
- Magnetek 7355
Specifications
| absorption voltage | 13.6V DC (Nominal Voltage) |
| case material | Plastic |
| certifications | Yes |
| converter type | Yes |
| dc circuits (quantity) | 1 main and 5 branch circuits |
| dc input voltage regluation | FCC |
| float voltage | 13.2V DC (Trickle Charge Voltage) |
| hertz | 60 Hz |
| input voltage | 105-130 VAC |
| max power | WF-8955-MBA (Main Board Assembly, 55 Amps) |
| output current | 55 A |
| output power | 940W |
| output voltage frequency | Three-Stage Converter Charger |
| over current | (2 30A max), 11 (9 20A max) |
| over temperature | Black, Brown |
| over voltage | Yes |
| reverse polarity | Yes |
| socket type | Yes |
| voltage output | 13.2 ΓÇô 14.4V DC Range |
| weight | 7 Ibs. |
