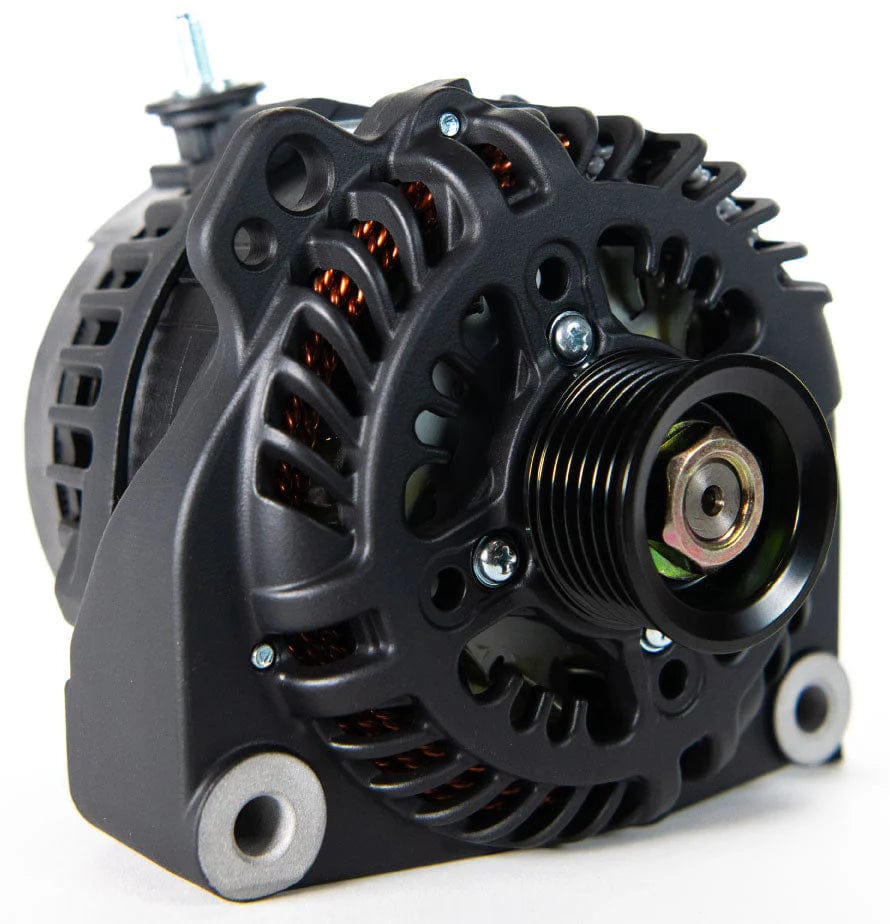

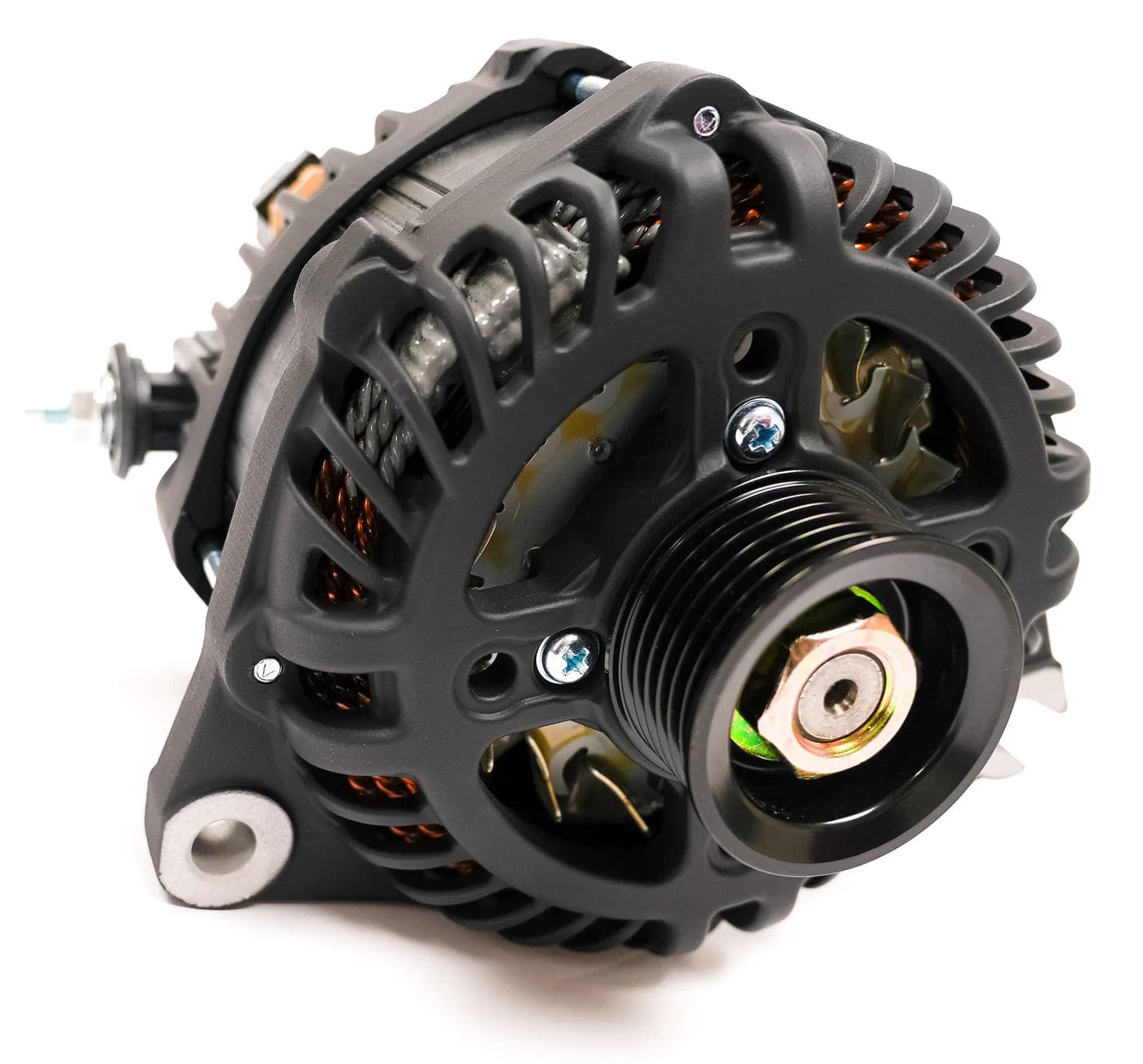

ARCO Marine Zeus High Output External Alternator A275L Transit with Terminal Block - A275L-12-TR-EX-49K6

Arco MarineSKU: ARC-A275L-12-TR-EX-49K6

Price:
Sale price$897.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)

Applications

Mounting: Transit
Replaces Ford Transit alternators 3.5L & 3.7L Gas engines 2015-2022

Description

This is the ARCO Marine Zeus High Output Alternator A275L Transit, featuring a durable terminal block for secure electrical connections. The A275L-12-TR-EX-49K6 model is designed for reliable performance and efficiency, ensuring your boat’s electrical systems operate smoothly and consistently. Built with marine-grade durability and precision, this alternator is an excellent choice for boat owners seeking dependable power solutions to enhance their marine experiences.

Features:

  • Engineered for High Energy Production.
  • Optimized for performance at idle speeds.
  • Rapidly charges large battery banks.
  • High-density, ultra-efficient stator winding
    produces maximum energy output.
  • Coolest operating temperatures for increased
    performance. Runs 8 - 20% cooler than
    incumbent alternators due to:
    •  Heat-shedding coatings
    •  Rectifier located on housing exterior
    • Dual cooling fans
    • OEM components
  • Unleash peak performance with E-Coat/ Cerakote. Our advanced coating dissipates heat, keeping the A275L cooler. This translates to more amperage for
    sustained periods.
  • For maximum performance or lithium battery charging, use an ARCO Zeus Alternator Regulator.
  • SAE J1171 Certified.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications:

Voltage 12V
Field Type P
Rotor Poles 16
Stator Size 138mm
Regulation Internal/External (IE) or External Only (EX)
Output Voltage 14.1V (default)
Cut-In Alt. RPM 1,061
Maximum Alt RPM 19,000
Battery Post M8 Thread Post, Side Mount
Standard Pulley 49K6 (6-groove, 49mm); 50mm Clutch Pulley (Optional)
Pulley Mount 17mm diameter shaft, 25mm long, threaded M17 x 1.5
Pulley Hardware M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
Diodes 6 positive, 6 negative, 50A Rated, Avalanche
Max Output (Cold, 9,000 RPM) 310 Amps
Sustained Cruising Output (Hot, 6,000 RPM) 235 Amps
Sustained Idle Output (Hot, 3,000 RPM) 198 Amps
Max Continuous Operating Temperature 110°C/230°F
Housing 3.15" J180
Dimensions (LxWxH) 6.8" x 8.5" x 5.6"
