Description

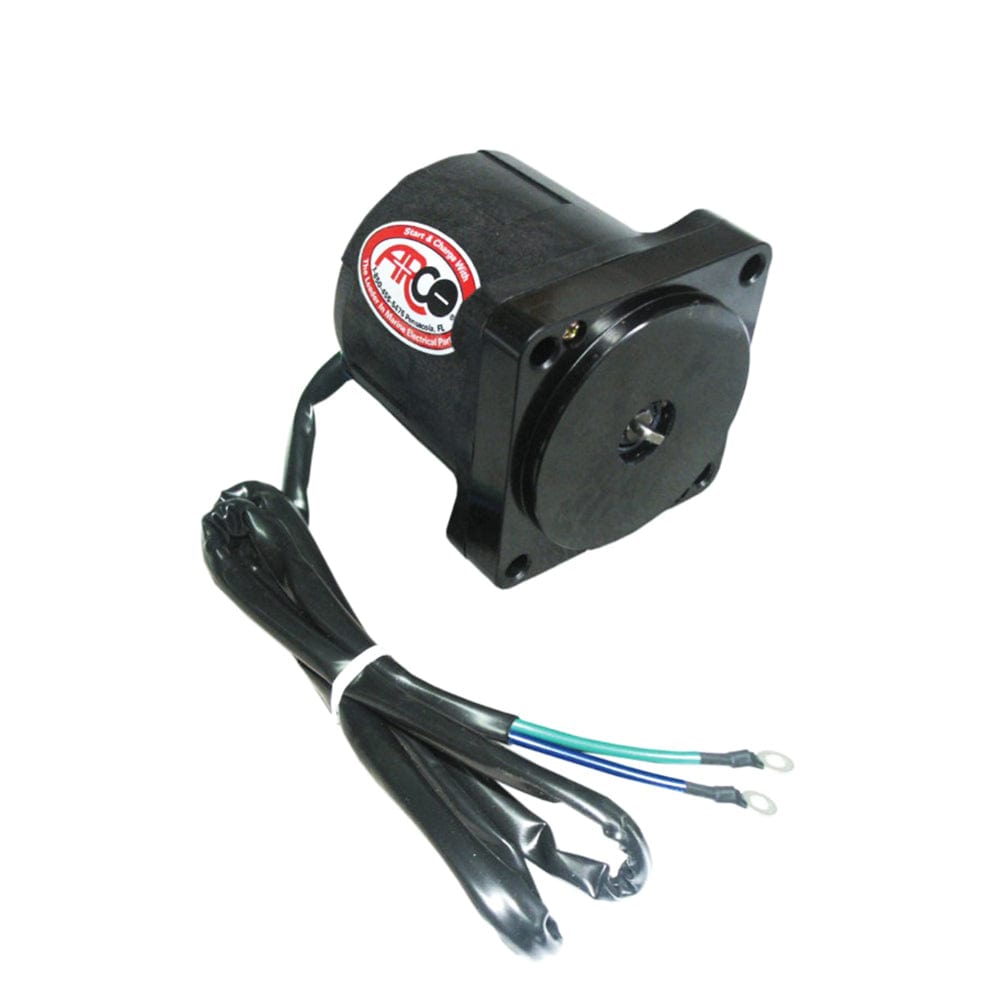

Replacement Tilt trim motor
1 year warranty from manufacturer
Replaces the following part numbers: YAMAHA 64E-43880-00, YAMAHA 64E-43880-01, YAMAHA 64E-43880-03, YAMAHA 64E-43880-04, YAMAHA 67H-43880-00, YAMAHA 67H-43880-01, YAMAHA 67H-43880-02, YAMAHA 67H-43880-03,YAMAHA 67H-43880-04, YAMAHA 67H-43880-10, YAMAHA 68V-43880-00, YAMAHA 68V-43880-01, YAMAHA 68V-43880-02, YAMAHA 68V-43880-03, YAMAHA 68V-43880-04, BRP - OMC 5036732, SIERRA 18-6783.
Fits: YAMAHA 1997-UP 115 HP. 2000-UP 115 HP 4-Stroke. 1997-2000 130 HP, 1997-UP 150-200 HP, 1998-UP 225 HP.
2-wire connection, bolt mount, ring Terminal Ends, includes O-ring.
- Epoxy Powder coated for maximum corrosion protection
- Motor shafts induction case hardened at bearing surfaces for superior wear resistance
- All armatures tested to withstand 50 times operation voltage (12 V)
- All motors performance tested at 5 different load levels
- All motors must meet or exceed OEM performance before being boxed
