AP Products 010-073 Gas Spring 17.13" EXT 6.30" Stroke 35Ibs.

AP ProductsSKU: 010-073

Price:
Sale price$16.22 Regular price$22.99 Save $6.77
Stock:
6 In stock Free Shipping

Description

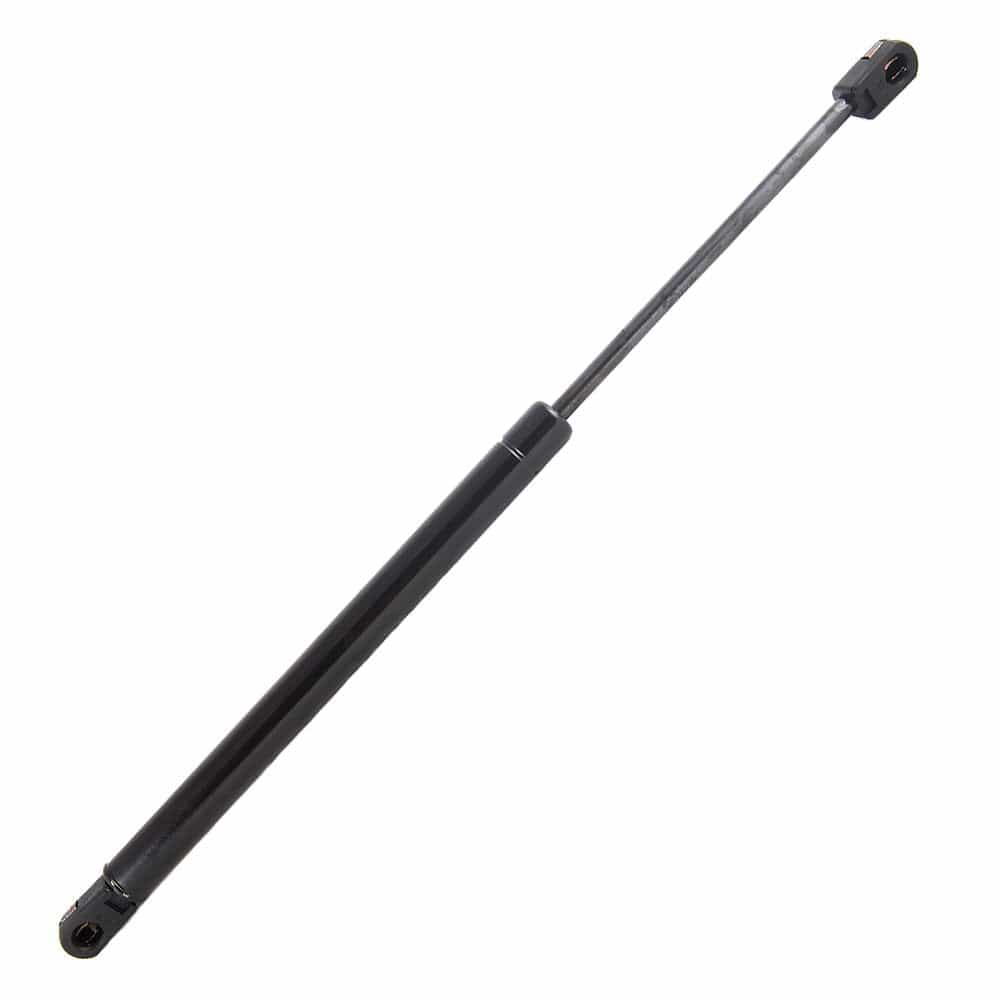

The 010-073 is a 10.8" to 17.13" EXT, 35 pound gas Spring with a 6.30" stroke from AP Products.

This gas spring allows the replacement of the lift supports from your RV’s storage compartment doors, beds, trunk lids, and rear hatches. The 010-073 will act as a dampener while providing lift support for propping your door open. The prop is a self-contained counterbalance product providing a great alternative to regular springs and mechanical devices.

Features:

  • Attaches to a 10 mm ball
  • Plastic 10 mm ball socket end fittings with integrated locking clip
  • Removable Ball Connectors

Warning: Product may contain materials cautioned by California Proposition 65

Installation:

Have someone hold the hatch, hood, trunk, or rear window open while replacing the lift support. Do not use a prop. Before removing the old lift support, examine any hardware provided to determine which components must be reused. The new lift support must be installed in the same position as the one which was removed. Do not scratch rod. When installing the rod, the chamber side must be placed upward while the rod side is down.

You can remove the old lift support by prying off the retaining ring, cap lock, or the security lock ring. Press the new lift support onto the ball stud and properly install the retainer.

Specifications

application Lift Support For Motor Homes
compressed length 10.8"
extended length 17.1"
load capacity 35 lbs.
mounting Eyelet
stroke 6.3"
