AIM PWRINV500048W 5000 WATT 48 VOLT MODIFIED SINE WAVE INVERTER
    The Aims PWRINV500048W is 5000 watt modified sine wave inverter that converts 48 volts DC power to 120 volts AC power. It features 5000 watts of continuous power with a 10,000 watt surge rating. It comes equipped with volt and amp meters on the front panel that show both your battery voltage and use rate. The unit also features 4 ac outlets, a terminal block for hardwiring, LED indicators and a auto reset on most fault conditions. The PWRINV500048W is backed by a manufacturers 1 year warranty.
  • Free Shipping
  • 5000 Watt max continuous power
  • 48 Volt Power Inverter
  • Modified sine wave

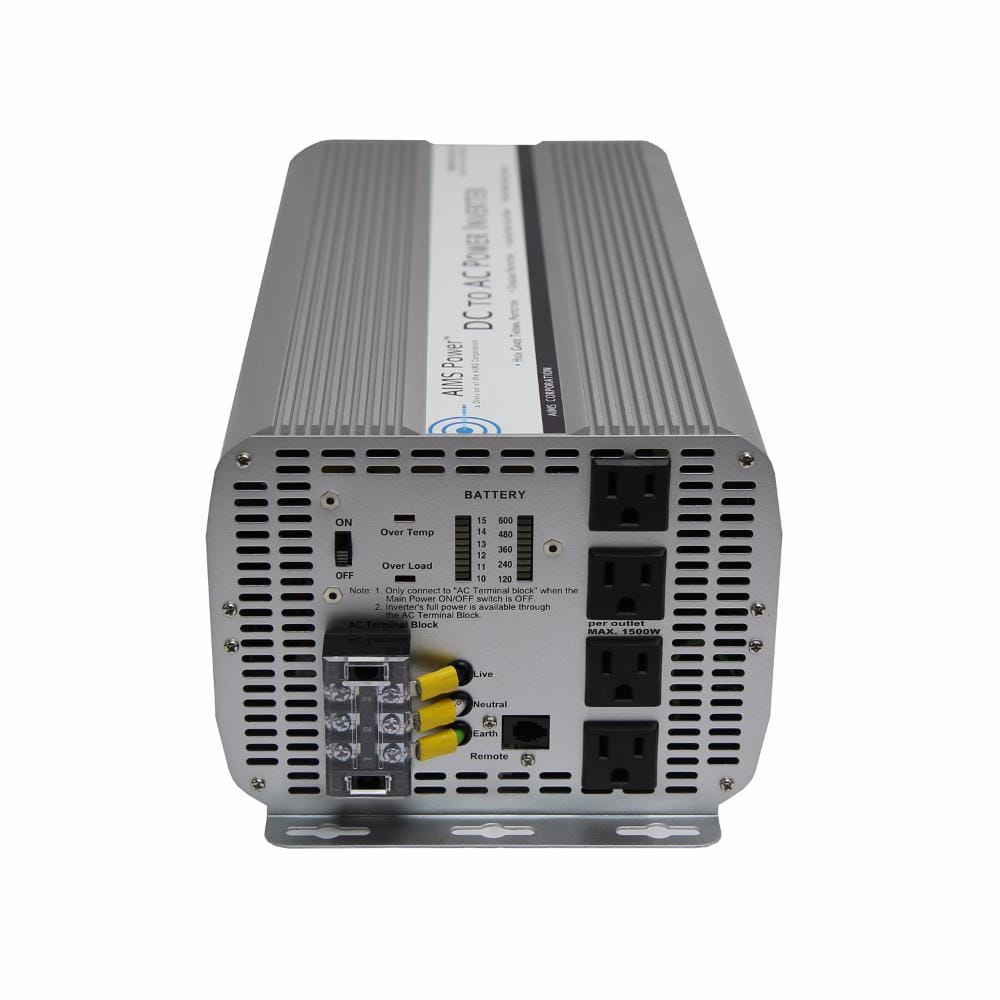

  • Volt meter on front panel to monitor your battery voltage
  • Amp meter on front panel to monitor your current use (rate at which battery is drained)
  • AC Direct Connect Terminal
  • Over Temperature LED indicator
  • Over Load LED indicator
  • Quadruple AC receptacles that can be used with any separate spliter to provide even more outlets
  • On/off switch
  • Over Temperature protection
  • Over Load protection

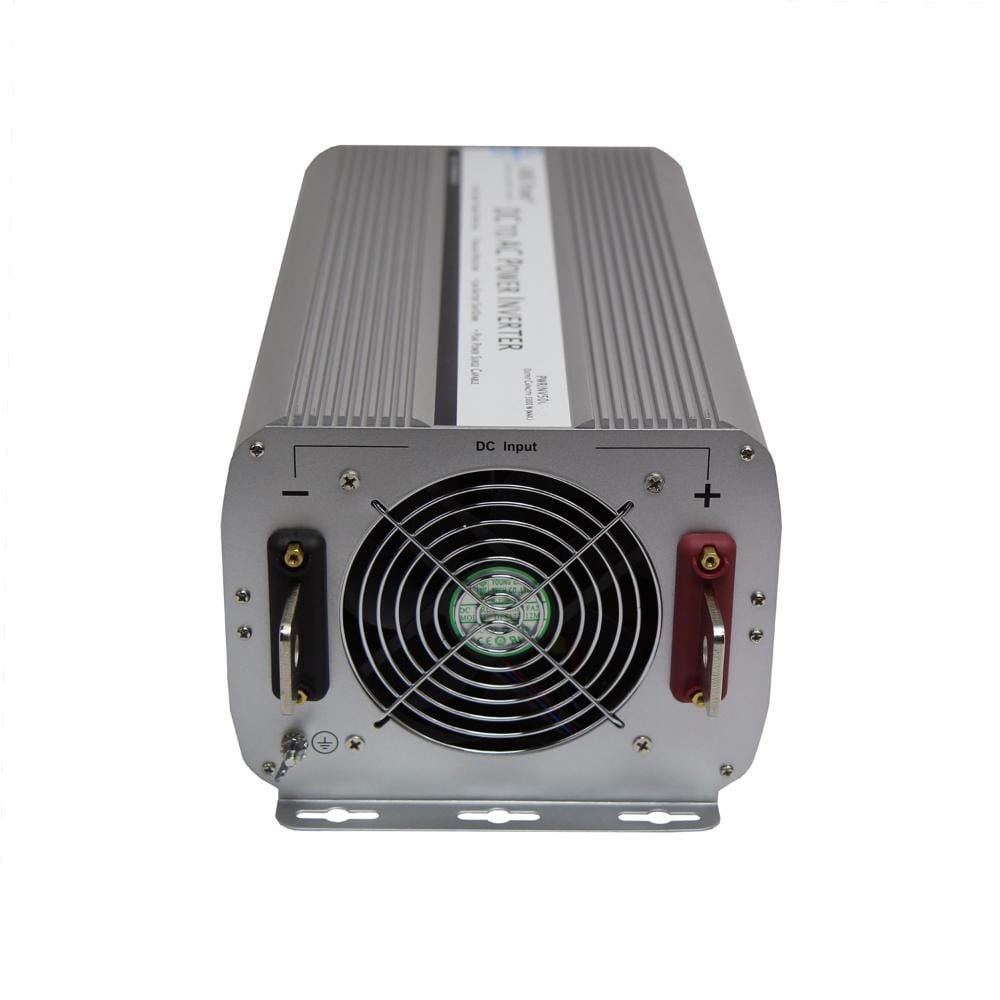

  • Single cooling fan operation thermally controlled
  • Internally fuse protected AC output
  • Short circuit protection
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • Continuous output power: 5000 Watts
  • Surge power capability (peak power): 10,000 Watts
  • DC input / operating voltage: 39 to 64 Volts
  • Output voltage: 120 Volts ac +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz
  • Battery low voltage alarm: 40 +/- 0.5 Volts
  • Battery low voltage shutdown: 38 +/- 0.5 Volts
  • No load current: < 0.2 Amps
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: -15 degrees Celsius
  • Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
  • AC Output Socket Type: quadruple Type 2 -3 prong
  • High input voltage protection: 64 volts
  • Low input voltage shutdown: 38 volts
  • Internal fuse protection
  • Product size (L x W x H): 17�X 7.75�X 6�
  • Weight: unit 18 lbs. boxed 20 lbs.
  • UL maximum recommended per outlet 1500W
  • Free Shipping
  • Output Voltage : 48 Volts
  • Wattage : 5,000 Watts
  • Type : Modified Sine Wave
