Aims PWRINV500024W 5000 Watt 24-Volt Modified Sine Wave Power Inverter

          Be the first to write a review
You Pay $449.00
$539.00 Save 17%
Free Shipping
10 In Stock!

Would you like to calculate shipping for this item?

Aims PWRINV500024W 5000 Watt 24-Volt Modified Sine Wave Power Inverter

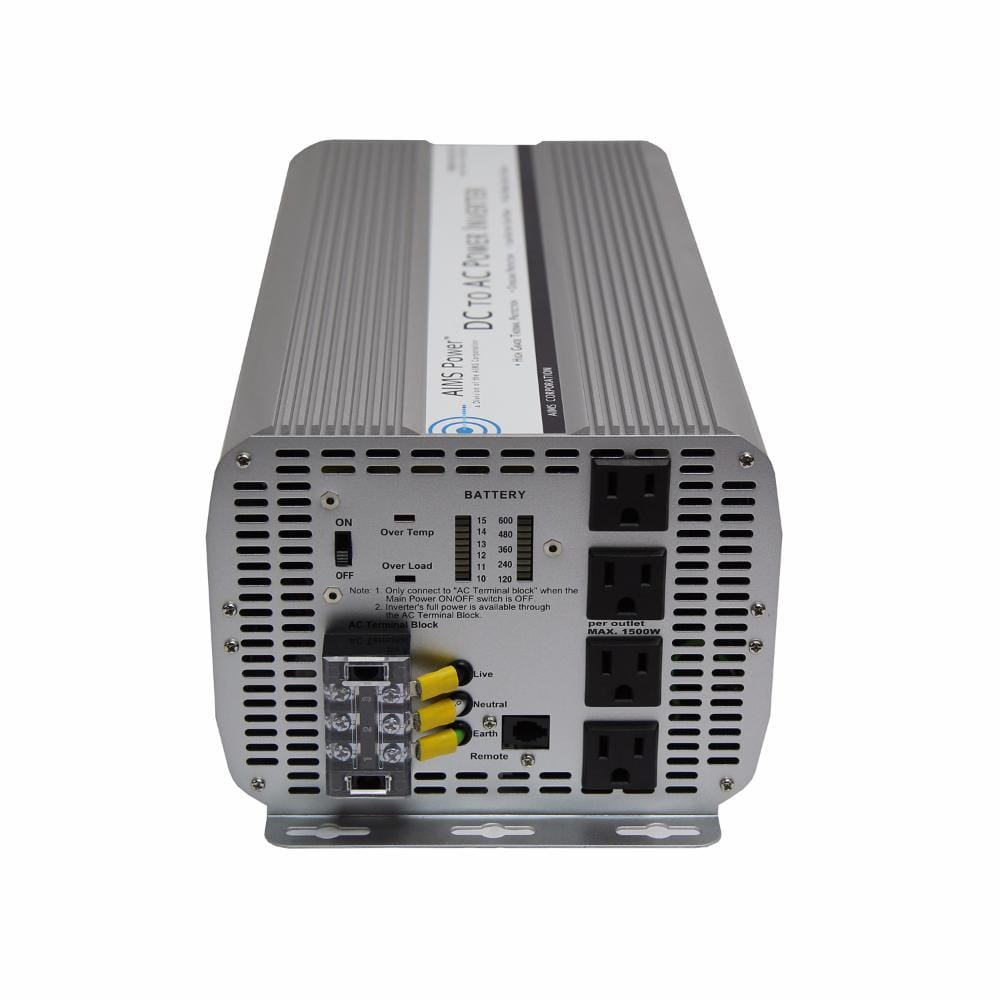

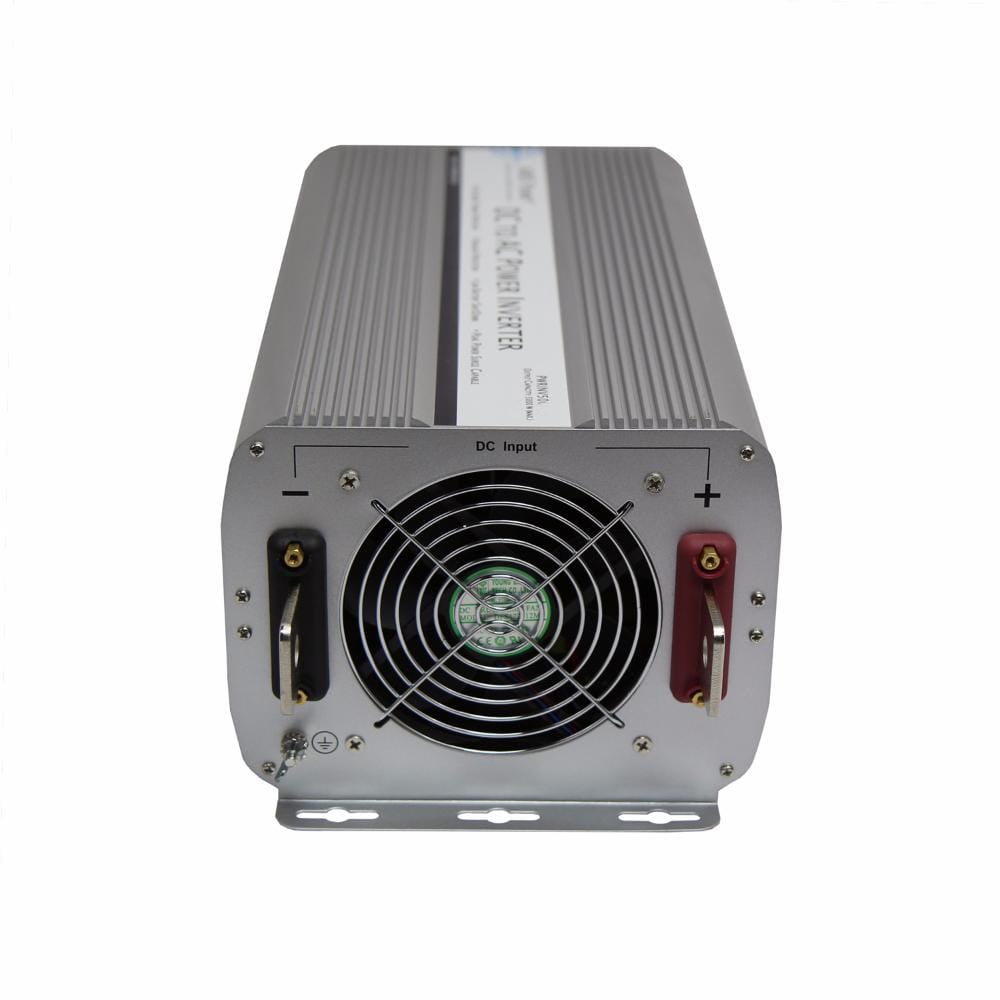

    The Aims PWRINV50002424W is a 5000 watt inverter that converts 24 volt DC power to 120 volt AC power. The unit is equipped with a volt meter on the front panel that monitors your battery voltage. This inverter also features an AC direct connect terminal block for hard wiring, quadruple AC receptacles that can be used with any separate splitter to provide even more outlets, thermally controlled cooling fan and an aluminum case for optimal cooling. The surge power on the PWRINV500024W is 10,000 watts. The unit also features several protections including over temperature protection, over load protection and short circuit protection.
  • Free Shipping
  • 5000W max continuous power
  • Modified sine wave
  • Volt meter on front panel to monitor your battery voltage
  • Amp meter on front panel to monitor your current use (rate at which battery is drained)
  • AC Direct Connect Terminal Block
  • Over Temperature LED indicator
  • Over Load LED indicator
  • Quadruple AC receptacles that can be used with any separate splitter to provide even more outlets
  • On/off switch
  • Over Temperature protection
  • Over Load protection
  • Single cooling fan operation thermally controlled
  • Internally fuse protected
  • AC output short circuit protection
  • Auto reset on most fault conditions
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor
  • Continuous output power: 5000 Watts
  • Surge power capability (peak power): 10,000 Watts
  • DC input / operating voltage: 34 to 20 Volts
  • Output voltage: 120 Volts ac +/- 10%
  • Output wave form: modified sine wave with phase correction
  • Output frequency: 60 Hz +/- 1 Hz
  • Battery low voltage alarm: 21.0 +/- 0.5 Volts
  • Battery low voltage shutdown: 20.0 +/- 0.5 Volts
  • No load current @ 24V: < 0.4 Amps
  • Full load efficiency: 90%
  • 1/3 load efficiency: 95%
  • No load minimum operating temperature: -15 degrees Celsius
  • Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown)
  • AC Output Socket Type: quadruple Type 2 -3 prong
  • High input voltage protection: 34.5V
  • Low input voltage shutdown: 20.0V
  • Internal fuse protection
  • Product size (L x W x H): 17.5�X 8�X 6�
  • Unit Weight 17 lbs.
  • Boxed Weight 19 lbs.
  • UL maximum recommended per outlet 1500W
  • Free Shipping
  • Output Voltage : 24 Volts
  • Wattage : 5,000 Watts
  • Type : Modified Sine Wave
