Description

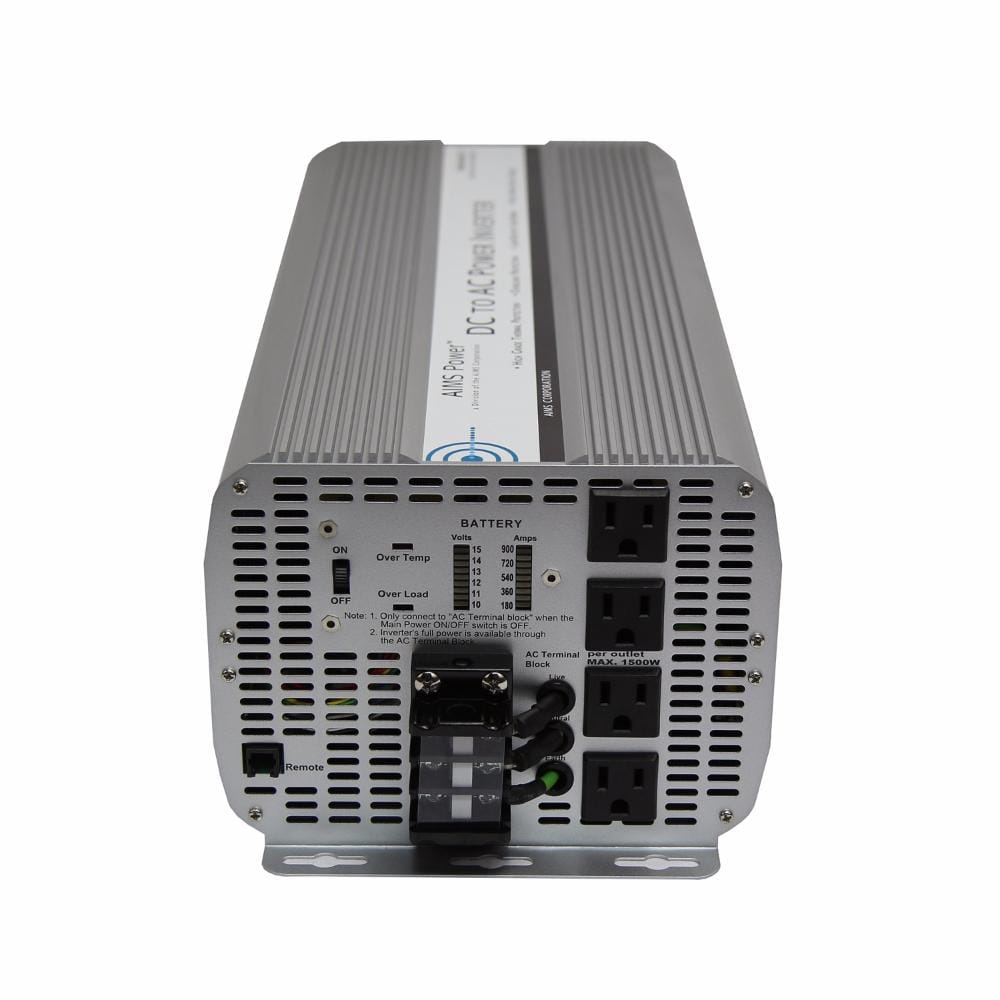

The Aims PWRINV8KW12V inverter converts 12 volt DC power to 120 volt AC power.
Specifications
| 1/3 load efficiency | 0.95 |
| ac output socket type | Quadruple Type 2 -3 Prong |
| battery low voltage shutdown | 10.0 +/- 0.5 Volts |
| brand | Aims |
| dc input / operating voltage | 10 to 15 Volts |
| dimensions | 19" L x 7" W x 6.5" H |
| full load efficiency | 0.9 |
| high input voltage protection | 15V-17V |
| input voltage | 12 Volts |
| low battery alarm | 10.5 +/- 0.5 Volts |
| low input voltage shutdown | 10V Internal fuse protection |
| maximum operating temperature | 55┬░ +/- 5┬░ Celsius (automatic shutdown) (Full Load) |
| minimum operating temperature | -15┬░ Celsius (No Load) |
| no load current | < 1.3 DC amps |
| output frequency | 60 Hz +/- 1 Hz |
| output voltage | 120 Volts |
| surge power | 16000 Watts (Peak Power) |
| wattage | 8000 Watts |
| waveform | Modified Sine Wave |
| weight | 19 lbs |
