Description

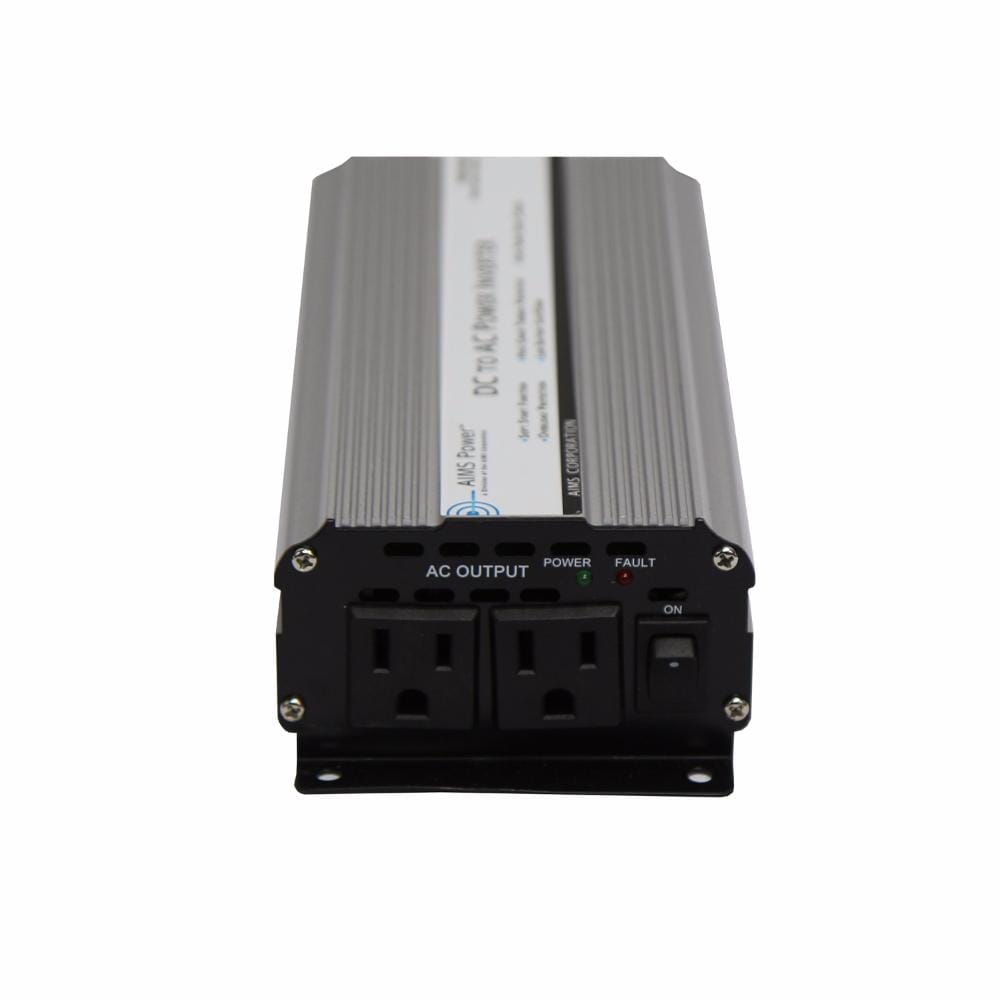

The Aims PWRIN800W is a 12 volt 800 watt modified sine wave inverter that converts 12 volt power to 120 volt ac power.
This inverter comes equipped with dual ac receptacles, cooling fan, aluminum case and an on/off switch. The PWRINV800W is internally fuse protected and features a battery low voltage alarm, pre slotted mounting plate and ac output short circuit protection.
- 800 watt continuous power
- Modified sine wave
- LED: Green power on and red heavy load/fault condition
- Dual ac receptacle with rubber protective covers
- On/off switch
- Over Temperature protection
- Over Load protection
- Convenient cooling fan operation
- Convenient 42"" cables with alligator clamps included for direct connect to battery
- Internally fuse protected
- AC output short circuit protection
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Isolated ground neutral
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- Short circuit protection
- Internal fuse protection
Specifications
1/3 load efficiency | 0.95 |
ac output socket type | Dual Type 2 -3 Prong |
battery low voltage shutdown | 10.0 +/- 0.5 Volts |
brand | Aims |
dc input / operating voltage | 10 to 15 Volts |
dimensions | 9.25" L x 5" W x 3" H |
full load efficiency | 0.9 |
high input voltage protection | 15.5V |
input voltage | 12 Volts |
low battery alarm | 10.5 +/- 0.5 Volts |
low input voltage shutdown | 10.5V |
maximum operating temperature | 55┬░ +/- 5┬░ Celsius (automatic shutdown) (Full Load) |
minimum operating temperature | -15┬░ Celsius (No Load) |
no load current | @ 12V: < 0.7 dc Amps |
output frequency | 60 Hz |
output voltage | 120 Volts |
surge watts (peak power) | 1600 Watts (Not meant for start up applications) |
wattage | 800 Watts |
waveform | Modified Sine Wave |
weight | 2.6 lbs. |
