Description

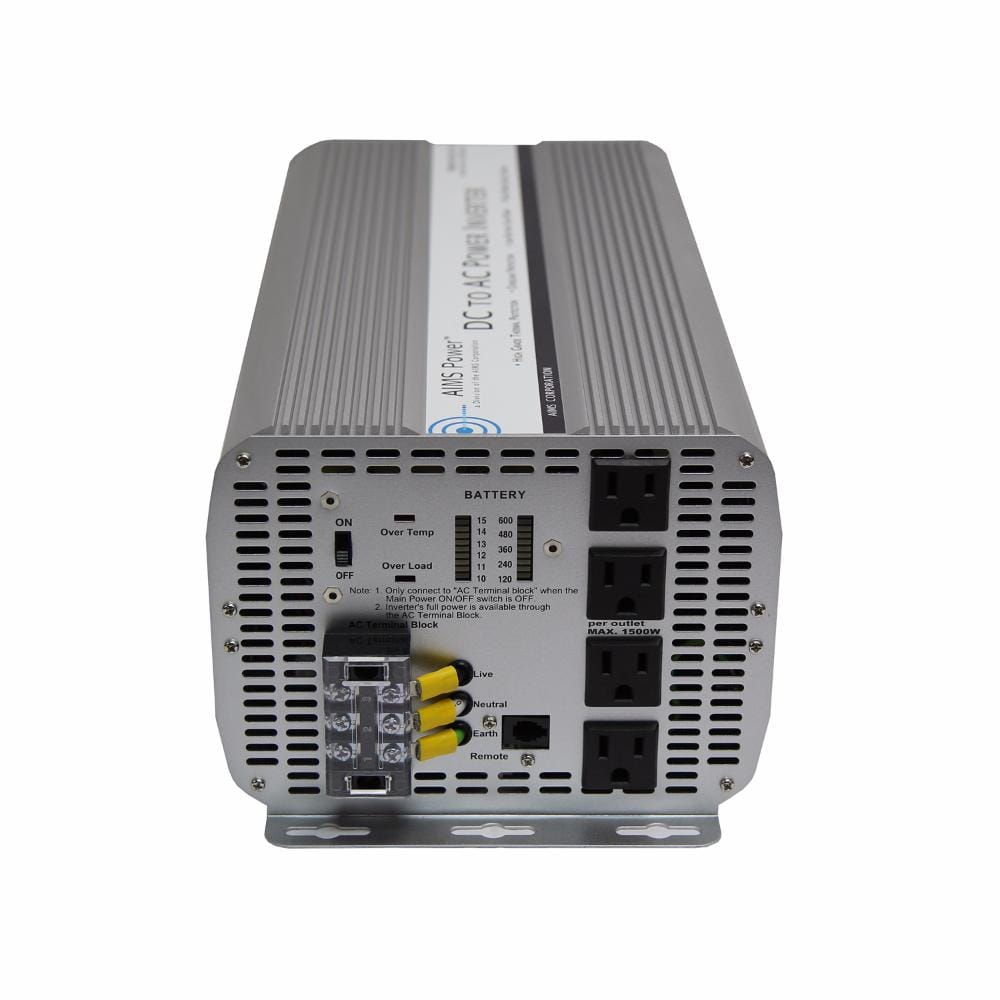

The Aims PWRINV500012W is a 5000 watt inverter that converts 12 volt DC power to 120 Volts of AC power
The unit is equipped with a thermally controlled cooling fan, an AC direct connect terminal block for hard wiring and Quadruple ac receptacles that can be used with any separate splitter to provide even more outlets. The unit is internally fuse protected and comes in an aluminum case for optimal cooling. The PWRINV500012W is backed by a manufacturers 1 year warranty.
- Modified sine wave
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- AC Direct Connect Terminal Block
- Over Temperature LED indicator
- Over Load LED indicator
- Quadruple ac receptacles that can be used with any separate spliter to provide even more outlets
- On/off switch
- Over Temperature protection
- Over Load protection
- Single cooling fan operation thermally controlled
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- Internal fuse protection
- UL maximum recommended per outlet 1500W
Specifications
1/3 load efficiency | 0.95 |
ac output socket type | Quadruple Type 2 -3 Prong |
battery low voltage shutdown | 10.0 +/- 0.5 Volts |
brand | Aims |
dc input / operating voltage | 10 to 15 Volts |
dimensions | 21" L x 8" W x 6.5" L |
full load efficiency | 0.9 |
high input voltage protection | 15V-17V |
input voltage | 12 Volts |
low battery alarm | 10.5 +/- 0.5 Volts |
low input voltage shutdown | 10V |
maximum operating temperature | 55┬░ +/- 5┬░ Celsius (automatic shutdown) (Full Load) |
minimum operating temperature | -15┬░ Celsius (No Load) |
no load current | < 0.6 Amps |
output frequency | 60 Hz +/- 1 Hz |
output voltage | 120 Volts |
surge power | 10000 Watts (Peak Power) |
wattage | 5000 Watts |
waveform | Modified Sine Wave |
weight | 18 lbs |
