Description

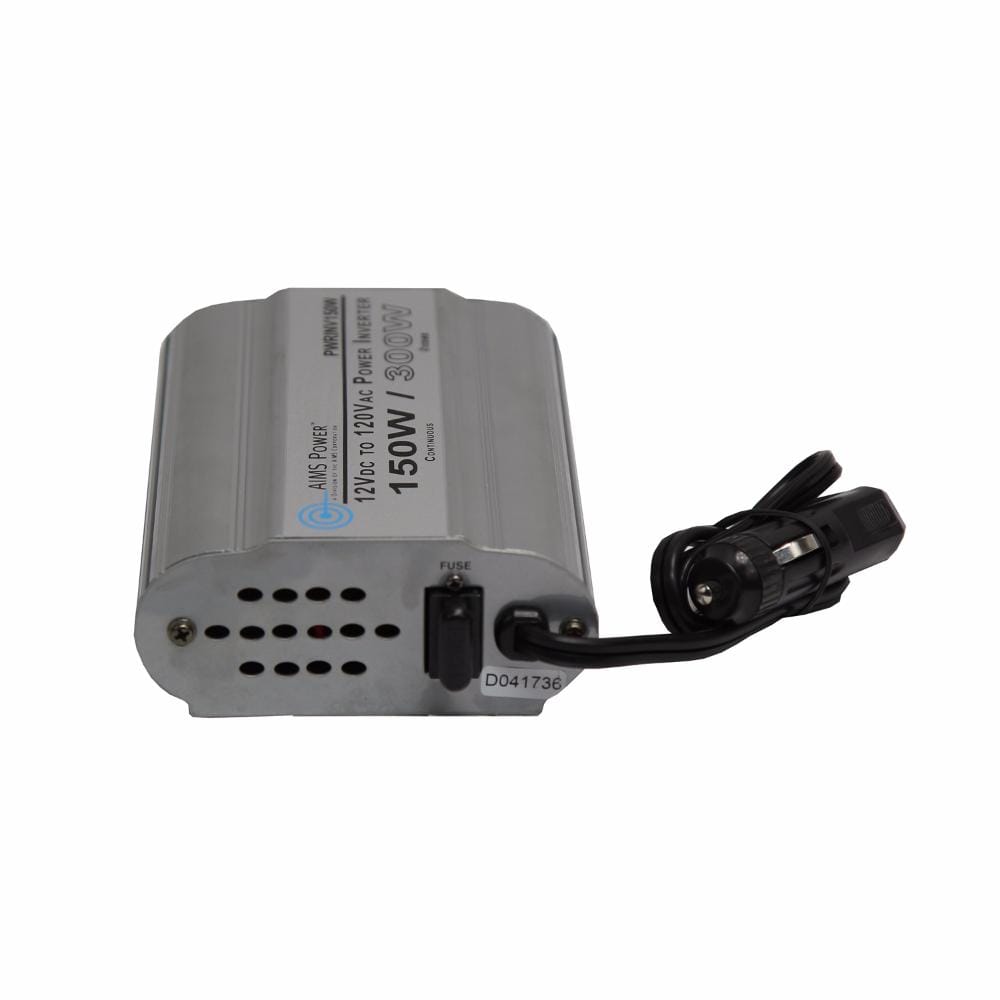

The Aims PWRINV150W is a 150 watt modified sine inverter that converts 12 volt DC power to 120 volts AC power.
The unit comes with a power cord and cigarette lighter plug. Other features include dual AC receptacles, on/off switch, aluminum case for optimal cooling and a full load efficiency of 90%. The PWRINV150W carries a 1 year warranty.
- 150 watt continuous power
- Modified sine wave
- Green LED on front panel to confirm power on
- Red LED on front panel to warn of a faulty condition
- Dual ac receptacles
- On/off switch
- Over Temperature protection
- Over Load protection
- Noise free operation. Includes a thermal cooling fan.
- Enclosed cigarette lighter connections with built in fuse
- ac output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Instruction manual
- Free tech support
- 1 Year Warranty
- 20 amp spade fuse
- External fuse protection
Specifications
| 1/3 load efficiency | 0.95 |
| ac output socket type | Single Type 2 -3 Prong |
| battery low voltage shutdown | 10.0 +/- 0.5 Volts |
| brand | Aims |
| dc input / operating voltage | 10 to 15 Volts |
| dimensions | 4" X 3.25" X 2" |
| full load efficiency | 0.9 |
| high input voltage protection | 15V |
| input voltage | 12 Volts |
| low battery alarm | 10.5 +/- 0.5 Volts |
| low input voltage shutdown | 10V |
| maximum operating temperature | (Full Load) 55┬░ +/- 5┬░ Celsius (automatic shutdown) |
| minimum operating temperature | (No Load) -15┬░ Celsius |
| no load current | < 0.3 Amps |
| output frequency | 60 Hz |
| output voltage | 120 Volts |
| output waveform | Modified Sine Wave |
| surge watts (peak power) | 400 Watts |
| wattage | 150 Watts |
| waveform | Modified Sine Wave |
| weight | 13 oz |
