Description

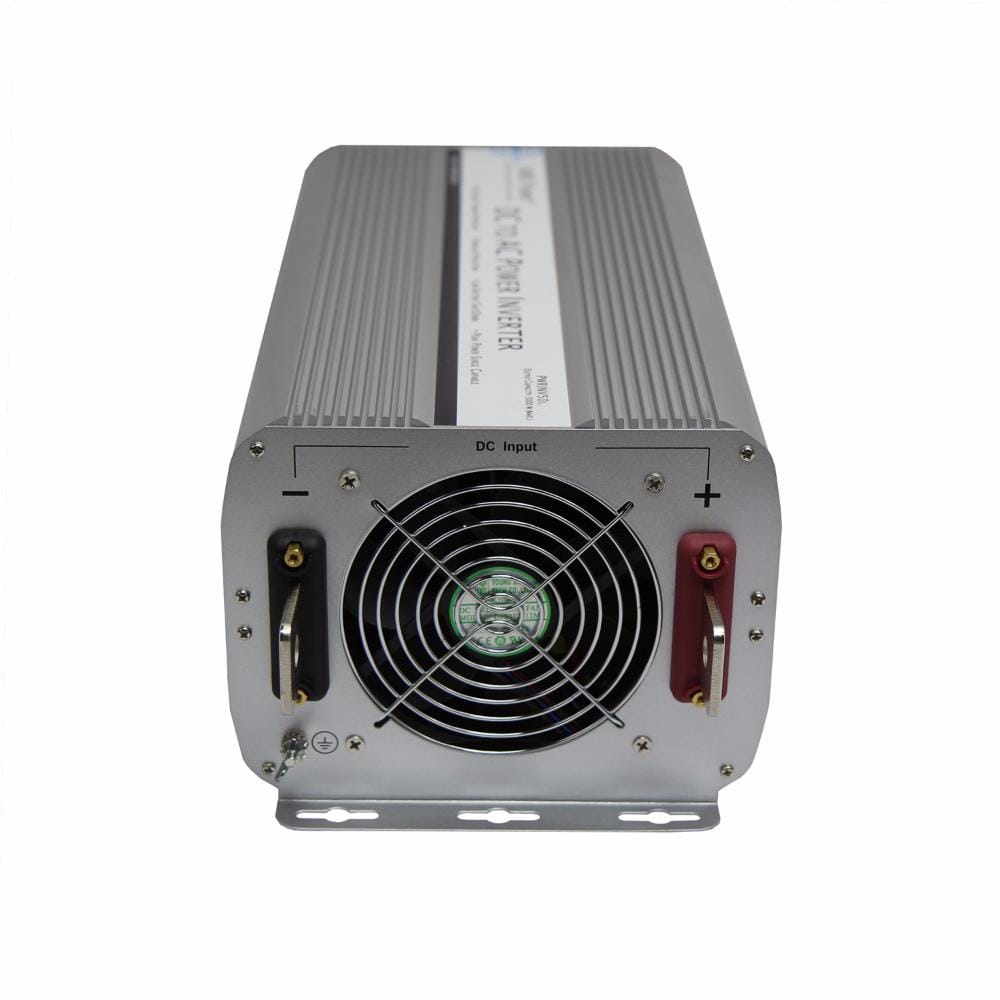

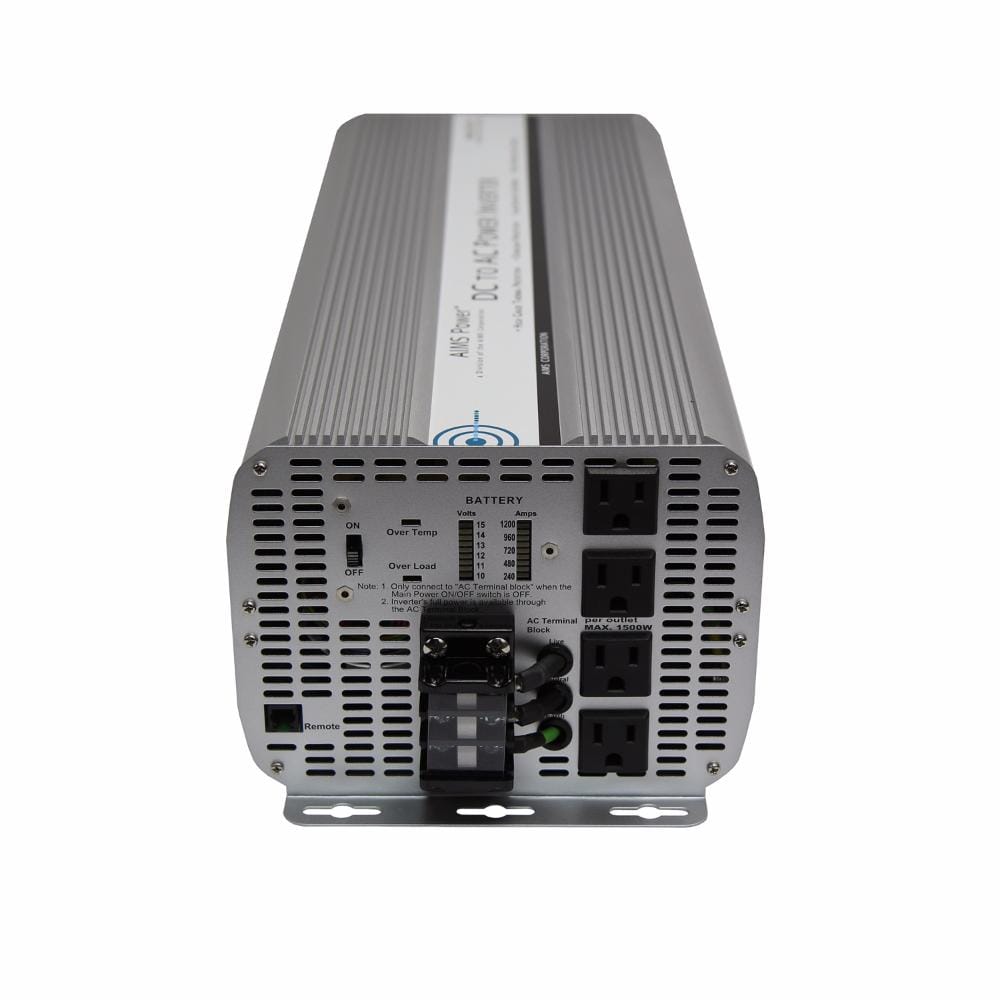

The Aims PWRINV10KW12V 10000 watt 12 volt modified sine wave inverter converts 12 volt DC power to 120 volt AC power.
The unit provides 10000 watts of continuous power and 200000 watts of surge power. Features of this inverter include volt and amp meters on the front panel, soft start technology, an AC direct connect terminal block for hard wiring and dual thermally controlled cooling fans. This unit carries a manufacturers warranty of 1 year.
- Modified sine wave with Pulse Width Modulation technology (soft start)
- Volt meter on front panel to monitor your battery voltage
- Amp meter on front panel to monitor your current use (rate at which battery is drained)
- Over Temperature LED indicator
- Over Load LED indicator
- AC direct connect terminal block for hard wiring
- On/off switch
- Over Temperature protection
- Over Load protection
- Dual cooling fans thermally controlled
- Internally fuse protected
- AC output short circuit protection
- Auto reset on most fault conditions
- Aluminum case for optimal cooling
- Pre-wired for remote on/off switch
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- UL maximum recommended per outlet 1500W
- This inverter requires 2 sets of 4/0 AWT cable if you are going to run at 10000 watts.
Specifications
1/3 load efficiency | 0.95 |
ac output socket type | Quadruple Type 2 -3 Prong |
battery low voltage shutdown | 10.0 +/- 0.5 Volts |
brand | Aims |
dc input / operating voltage | 10 to 15 Volts |
dimensions | 21.1" L x 7.75" W x 6" H |
full load efficiency | 0.9 |
high input voltage protection | 15V-17V |
input voltage | 12 Volts |
low battery alarm | 10.5 +/- 0.5 Volts |
low input voltage shutdown | 10V Internal fuse protection |
maximum operating temperature | 60┬░ +/- 5┬░ Celsius (automatic shutdown) (Full Load) |
minimum operating temperature | -15┬░ Celsius (No Load) |
no load current | < 1.8 DC amps |
output frequency | 60 Hz +/- 1 Hz |
output voltage | 120 Volts |
output waveform | Modified Sine Wave With Phase correction |
surge watts (peak power) | 20000 Watts |
wattage | 10000 Watts |
waveform | Modified Sine Wave |
weight | 21 lbs |
