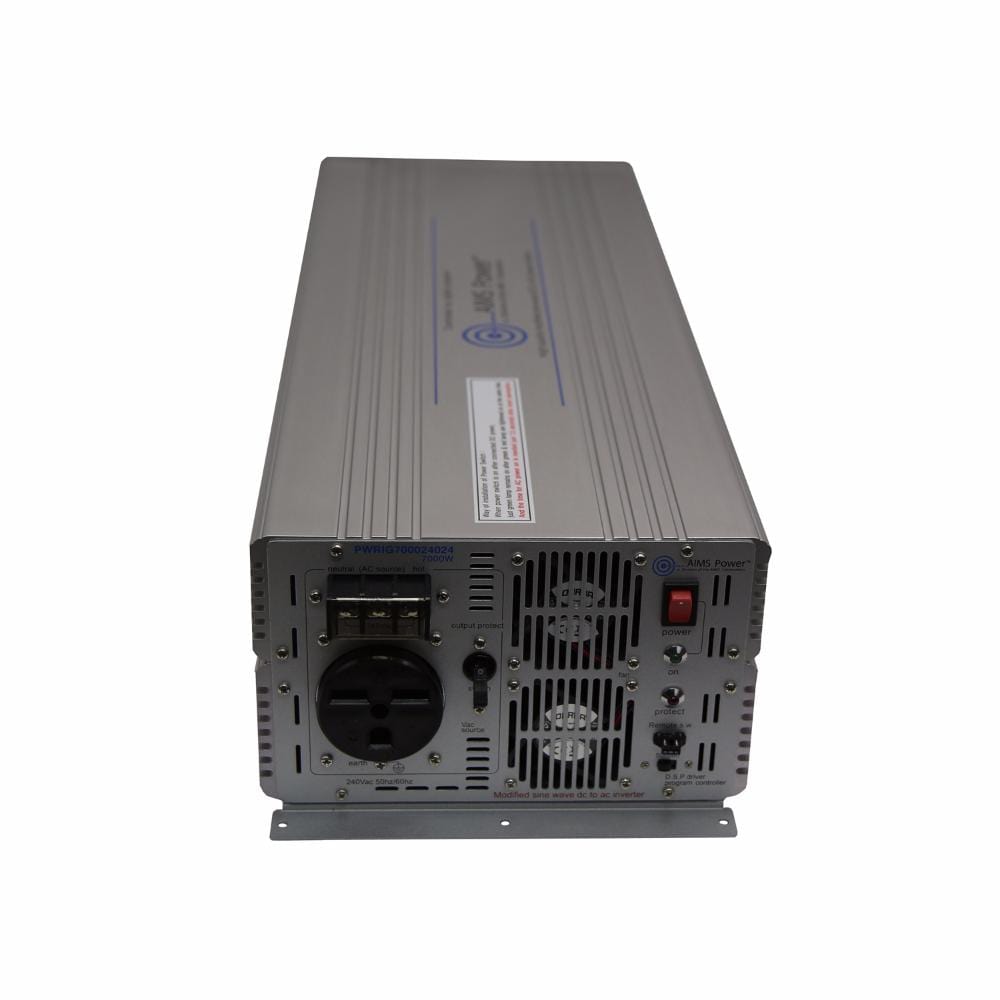

Aims PWRIG700024024 7000 Watt 24 Volt 240 Volt Output Industrial Grade Modified Sine Wave Inverter

AIMS PowerSKU: PWRIG700024024

Sale price$1,099
5 In stock Free Shipping


At 7000 watts continuous power and up to 14000 watts surge power for 9 seconds the Aims PWRIG700024024 24 Volt Industrial Grade Modified Sine Wave Power Inverter with a 240 Volt output promises to be a complete solution for any of your power requirements.

From recreation to industrial applications and back up emergency power needs this 7000 watt modified sine wave inverter delivers enough durable power for high end equipment that requires substantial electricity. The clean and reliable digital output of this inverter is phase corrected . This unit delivers an incredible 7000 watts of continuous power and is designed to reproduce the quality of electricity provided by power companies. This inverter supplies ample power to run large pumps, compressors, power tools, multiple appliances, job sites and even a small house! It has PWM programming which corrects any fluctuation in voltage or frequency caused by battery fluctuation or sudden surges in power usage. It also has a longer than average surge time (9 seconds when over 7000 watts). Additional features of this inverter include an a single 240 volt AC output plug plus a terminal block for hard wiring, LED indicators, thermally controlled cooling fan and 5 externally located re-settable circuit breakers.

  • Power switch LED is also a self test light - Green
  • Overload fail LED - Red
  • Over Temperature LED indicator
  • Over Load LED indicator
  • 1 AC 240 volt receptacle
  • AC Output Socket Type: Single 240 volt plug plus a terminal block for hard wiring
  • Direct connect terminal block for full load applications
  • On/off switch
  • Over Temperature protection
  • Over Load protection
  • Thermally controlled cooling fan
  • Internal fuse protection
  • DC volt Meter - Input meter
  • Percent load usage LED bar
  • 5 Externally located re-settable circuit breakers (60amp)
  • AC output short circuit protection
  • Aluminum case for optimal cooling
  • Pre-wired for remote on/off switch
  • Pre-slotted mounting plate
  • Instruction manual
  • Free 1 year tech support
  • 1 Year Warranty Parts and Labor




ac amps 58A Start Up / 29A Continuous
battery low voltage shutdown 19.5 +/- 0.5 volts
brand Aims
cooling fan on temperature 107┬░ F
dc input / operating voltage 20-30 Volts
dimensions 21.26" L x 8.43" W x 5.35" H
full load efficiency 0.9
high input voltage protection 34 +/-0.5 volts
input voltage 24 Volts
low battery alarm 20 +/- 0.5 Volts
maximum operating temperature 163┬░ F (Full Load)
no load current 200mA
output frequency 60 Hz +/- 1 Hz
output voltage 240 Volts
output waveform Modified Sine Wave With Phase Correction
surge watts (peak power) 14000 Watts
wattage 7000 Watts
waveform Modified Sine Wave
weight 26.5 lbs.
