Description

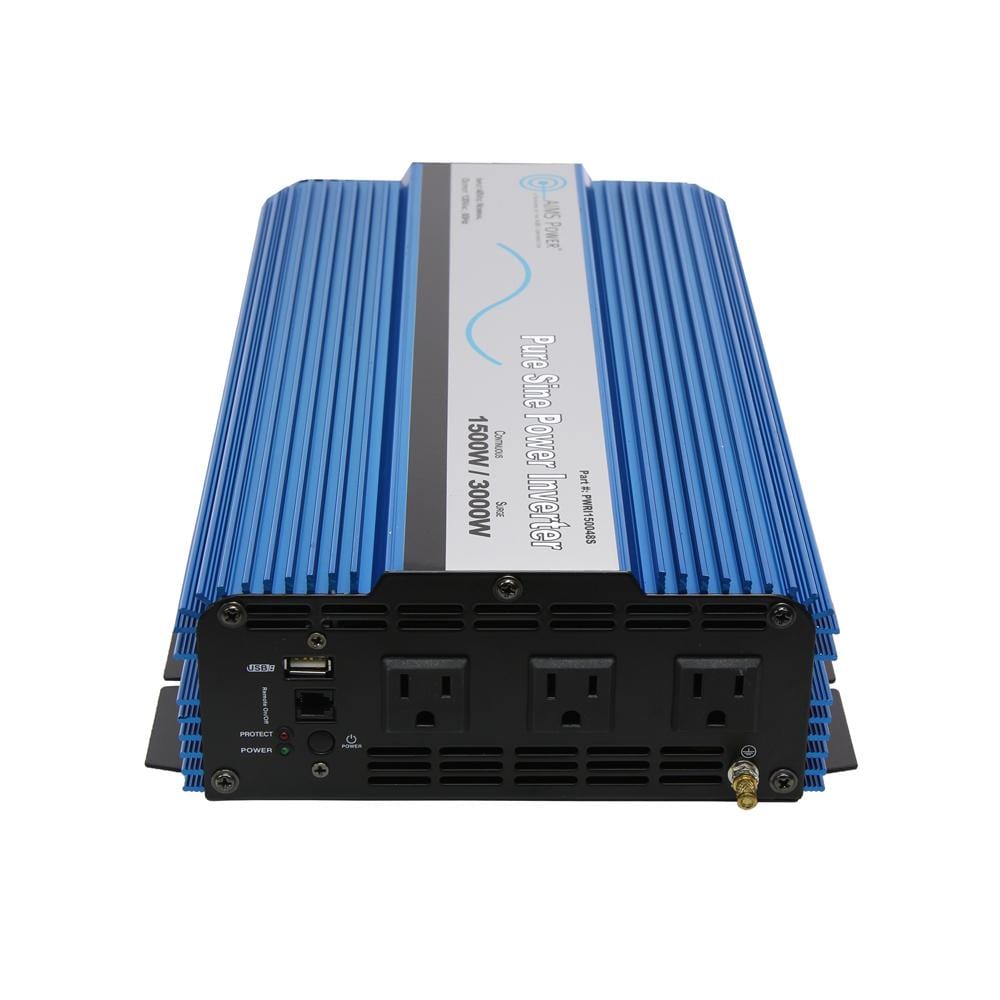

The Aims PWRI150024S 1500 watt inverter converts 24 volt dc power to 120 volts of clean pure sine power.
- 1500W continuous power
- 24 volt DC Input
- Pure sine wave
- USB Port
- Triple ac receptacles
- On/off switch
- Over temperature indicator
- Overload protection
- Low battery voltage warning/shutdown
- High input voltage protection with automatic shutdown
- Over load indicator
- Short circuit protection
- Dual cooling fans thermally controlled
- ac output short circuit protection
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
Specifications
| 1/3 load efficiency | 0.95 |
| ac amps | 12.5 Amps |
| battery low voltage shutdown | 20 +/- 0.5 Volts |
| brand | Aims |
| dc input / operating voltage | 20 to 30 Volts |
| dimensions | 15.25" x 6" x 3.6" |
| efficiency | 85-90% |
| full load efficiency | 0.9 |
| high input voltage protection | 34V |
| input voltage | 24 Volts |
| low battery alarm | 19.4 +/- 0.5 Volts |
| low input voltage shutdown | 17V |
| no load draw | DC amps - 62.50 |
| output frequency | 60 Hz +/- 1 Hz |
| output voltage | 120 Volts |
| surge watts (peak power) | 2500 Watts |
| wattage | 1500 Watts |
| waveform | Pure Sine Wave |
| weight | 9 lbs |
