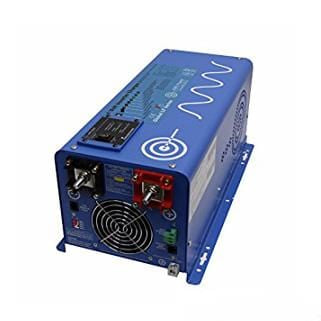

AIMS Power PICOGLF20W24V120VR 2000 Watt Pure Sine Inverter Charger 24 VDC 120 VAC 50/60Hz

AIMS PowerSKU: PICOGLF20W24V120VR

Price:
Sale price$885
Stock:
0 Re-stocking soon Free Shipping

Description

This 2000 watt continuous 6000 watt peak for 20 seconds 16.6 amp 24Vdc pure sine inverter charger, is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 88%.

  • GFCI outlet, auto gen start and output breaker
  • Charge current control dial
  • Battery priority selector



  • 2000 watt low frequency inverter
  • 6000 watt surge for 20 seconds 300% surge capability
  • Battery priority selector
  • AC direct connect terminal Block
  • Marine coated and protected
  • Multi stage smart charger 30 Amp for gel, AGM, lead and lithium LiFePO4
  • Remote panel available
  • Auto frequency
  • 10msec typical transfer time
  • Selectable 25W power save mode (hibernation)
  • 7 battery type settings for charger
  • Automatic transfer switch
  • Inverter Output Specifications:
  • Continuous Output Power: 2000 Watts
  • Surge Rating: 6000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC
  • Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)
  • Nominal Input Voltage: 24.0Vdc
  • Minimum Start Voltage: 20.0Vdc
  • Low Battery Alarm: 21.0Vdc-22.0Vdc
  • Low battery Trip: 20.0Vdc-21.0Vdc
  • High Voltage Alarm: 32.0Vdc
  • Low battery Voltage Restart: 26.6Vdc
  • Idle Consumption: 26.5 watts
  • Power Saver Mode Idle Consumption: 12.2 watts
  • Output voltage: Depends on Battery Type
  • Charger Rate: 30A
  • Over Charge Protection Shutdown 31.4V
  • Selectable Charge Setting
  • Adjustable Charge Current: off-20%-100%
  • Four Stage Smart Charger
  • 30 amp auotmatic transfer switch
  • 10 ms (max)
  • Unit Weight: 50 lbs.
  • Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches
  • Shipping Weight: 53 lbs.
  • Shipping L x W x H 23.5 x 13.0 x 12.5 inches



Warning: Product may contain materials cautioned by California Proposition 65
