Description

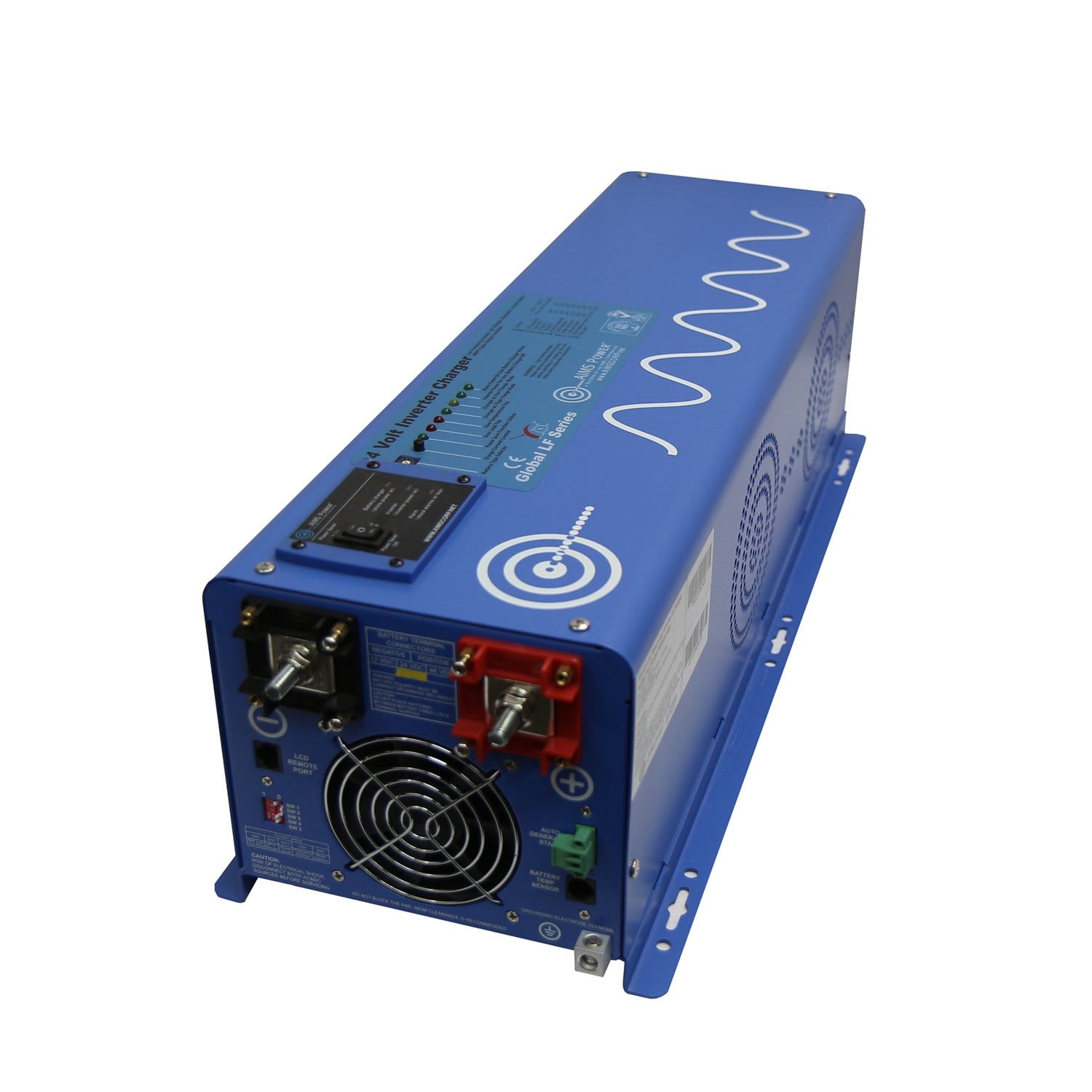

PICOGLF60W48V240VS 6000 Watt Pure Sine Inverter Charger 48 VDC 120/240 VAC 50/60Hz
Specifications
| adjustable charge current | off 20%-100% |
| ambient temperature | 14┬░F to 122┬░F (-10┬░C to 50┬░C) |
| charger rate | 60 A |
| continuous power | 6000 W |
| efficiency | 88% (peak), 95% (line Mode) |
| high voltage alarm | 64 VDC |
| idle consumption | 1.67 Amps DC |
| input voltage | 48 VDC |
| low battery alarm | 42 Vdc-44 VDC |
| low battery trip | 40 VDC-42VDC |
| output frequency | 50/60 Hz (+/- 0.3) |
| output voltage | 100-110-120/220/230/240 VAC ΓÇô split phase 120 & 240Vac |
| output waveform | pure sine/same as input (bypass mode) |
| surge rating | 18,000 W (20 Sec.) |
| thd | < 10% DC |
| typical transfer time | 10ms (Max) |
