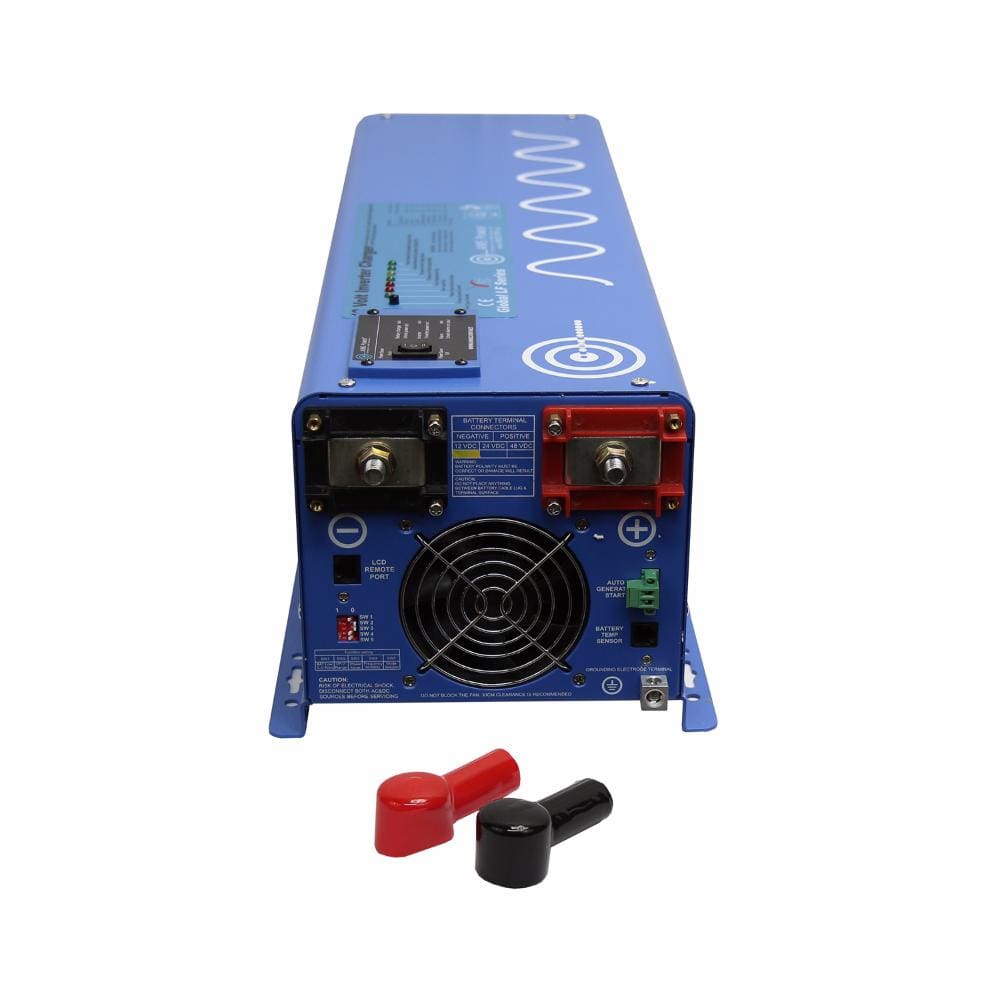

Aims PICOGLF40W12V120V 4000 Watt 12 Volt Low Frequency Pure Sine Inverter Charger


Sale price$1,284 Regular price$1,299.99 Save $15.99
0 Re-stocking soon Free Shipping


This inverter charger is great for mobile applications, because it can operate on your vehicle's standard charging system. It is a perfect product to create an earth-conscious power system. Its high wattage capacity allows for use in almost any application, and the charger's 12 volt capacity allows for maximum efficiency. The PICOGLF40W12V120V is perfect for industrial use but can also be a great tool for savvy consumers.

The unit features a 300% surge rating which gives it the capability to withstand 12,000 watts for up to 20 seconds. This means it has no trouble powering tools with locked rotor startup or Locked Rotor Amperage (LRA), like air compressors or air conditioners.Have a Class-A motor home or a fleet of charter busses that need a reliable 12 volt inverter to power electronics anywhere? This AIMS Power inverter charger is the answer. It will run even the most sensitive mobile technology including construction vehicles that do government sanctioned oil pipeline inspections. This inverter charger accepts any source of 120 volt alternating current (VAC) power for charging a battery bank with a diesel or gas generator or shore power at a truck stop and/or RV Park. This inverter charger even accepts power from a wall outlet in your home, and it can be used globally (in any country that accepts 120VAC output) with the Auto Frequency Detection feature. Have a 12 volt houseboat/party boat you would like to hook up to some serious stereo equipment? This AIMS unit is perfect, because you'll be able to handle high electronic surges, which stereo equipment is known to produce. Whether you're looking to up fit your boat with some enormous speakers, fancy electronic fishing equipment or a massage chair, this inverter charger will provide all the power you need.With the product's battery priority mode, the inverter charger can run directly off a battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a Power Saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter charger will 'sleep' and draw about half an amp per hour, saving precious battery reserve power until it's needed.

  • 4000 watts of continuous pure sine power
  • 12000 watt surge power for 20 seconds 300% surge capability
  • Terminal Block for AC output hardwiring
  • Marine Coated and Protected
  • Multi Stage Smart charger 100 Amp
  • Remote panel available
  • Auto frequency
  • 40 Amp transfer switch with a 10msec typical transfer time
  • Optional 25 Watt power save mode
  • 7 battery type settings for charger
  • Idle Consumption: Power Saver Mode Idle Consumption: Charger Specifications
  • Over Charge Protection Shutdown 15.7V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage 100 Amp Smart Charger
  • Unit Weight: 77 lbs.
  • Unit Size L x W x H: 23.5 x 8.5 x 7.0 inches


charger rate 100A
hertz 50 Hz; 60 Hz
high voltage alarm 16.0Vdc
input voltage 12 Volts
line mode efficiency >95%
low battery alarm 10.5Vdc-11.0Vdc
low battery trip 10.0Vdc-10.5Vdc
low battery voltage restart 15.5Vdc
minimum start voltage 10.0Vdc
nominal efficiency >88% (Peak)
nominal input voltage 12.0Vdc
output frequency 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
output voltage Depends on battery Type
output waveform Pure Sine/Same as input (Bypass Mode)
surge watts (peak power) 12000 Watts
thd < 10% DC
wattage 4000 Watts
waveform Pure Sine Wave
