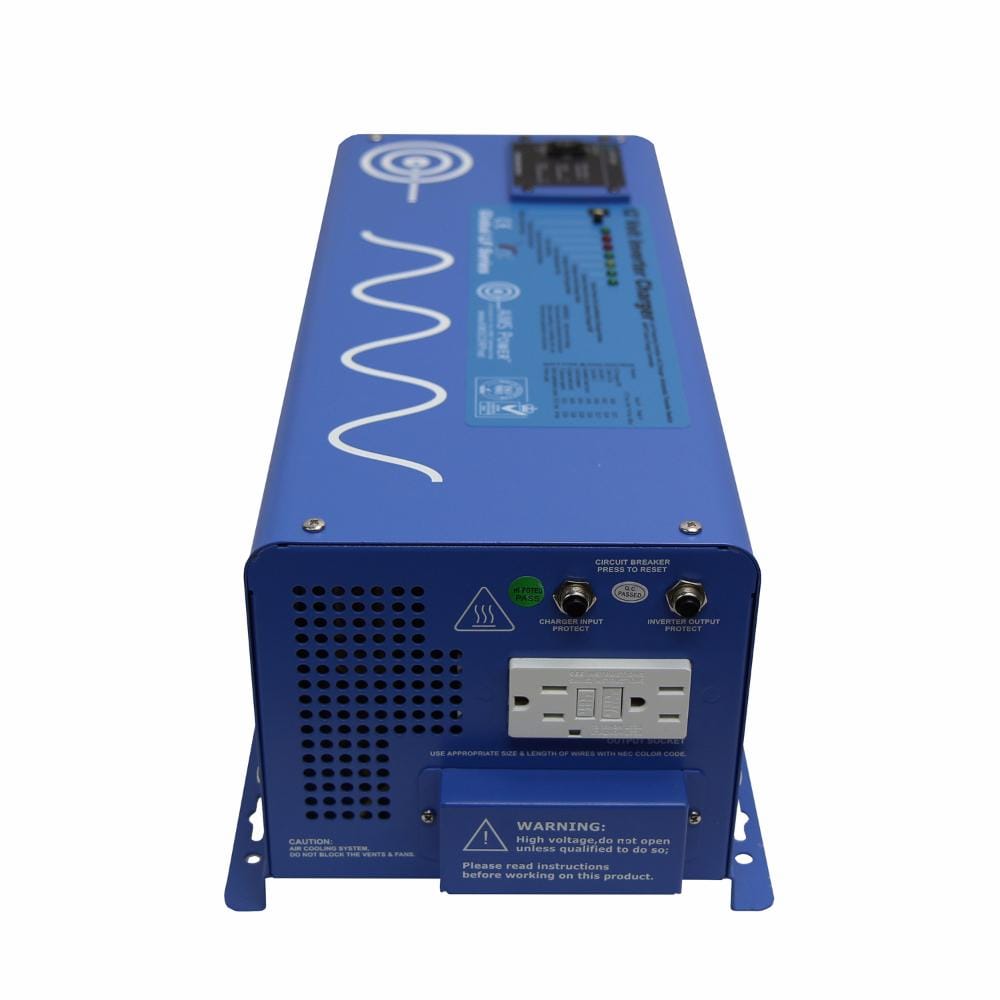

Aims PICOGLF30W12V120V 3000 Watt 12 Volt Low Frequency Pure Sine Inverter Charger


Sale price$1,178
10 In stock Free Shipping


This Aims 3000-watt pure sine inverter is perfect for small sized industrial applications. This pure sine is perfect for when you need to depend upon power being there under heavy load. There are so many uses for the Aims 3000-watt pure sine inverter from boating, to camping, to tailgating. Order one today! Have questions about our inverters? Contact our team today!

This heavy-duty inverter charger is ready to go where ever you need it. From the Camp Site to the Tailgating party all the way to helping power your essential home appliances during a power outage emergency. This inverter is also great in a smaller RV or boat applications. An additional features is a 9000 watt surge power for 20 seconds As an additional feature, this inverter is capable of being used worldwide with it's Auto Frequency Detection in any country that will accept a 120vac output. This inverter will never completely drain your batteries as it's low-voltage shut-down keeps the voltage at around 10 volts or 10.5 volts depending on your selection.With the battery priority mode, you can select that the inverter runs directly off of your battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a Power Saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will "sleep" and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it. An optional wired remote can be added for fast and easy operation if your inverter charger is mounted in a location that is difficult to reach. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.

  • 9000 watt surge for 20 seconds -3x surge capability
  • Battery Priority Selector
  • Terminal Block
  • 1 GFCI outlet
  • Marine Coated and Protected
  • Multi Stage Smart charger 65 Amp
  • Remote panel available
  • Includes auto gen start
  • Auto frequency
  • 10 msec typical transfer time
  • Optional 25 watt power save mode
  • 7 battery type settings for charger
  • Continuous Output Power: 3000 Watts
  • Idle Consumption:Power Saver Mode Idle Consumption:Charger output voltage: Depends on battery Type
  • UL Listed
  • Unit Weight: 46 lbs.
  • Unit Size L x W x H: 23.54" L x 8.59" W x 7.05" H inches



charger rate 65A
dimensions 23.54" L x 8.59" W x 7.05" H
hertz 50 Hz; 60 Hz
high voltage alarm 16.0Vdc
input voltage 12 Volts
line mode efficiency >95%
low battery alarm 10.5Vdc-11.0Vdc
low battery trip 10.0Vdc-10.5Vdc
low battery voltage restart 15.5Vdc
minimum start voltage 10.0Vdc
nominal efficiency >88% (Peak)
nominal input voltage 12.0Vdc
output frequency 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
output waveform Pure Sine/Same as input (Bypass Mode)
surge watts (peak power) 9000 Watts (20 Seconds)
thd < 10% DC
typical transfer time 10ms (Max)
wattage 3000 Watts
waveform Pure Sine Wave
weight 46 lbs
