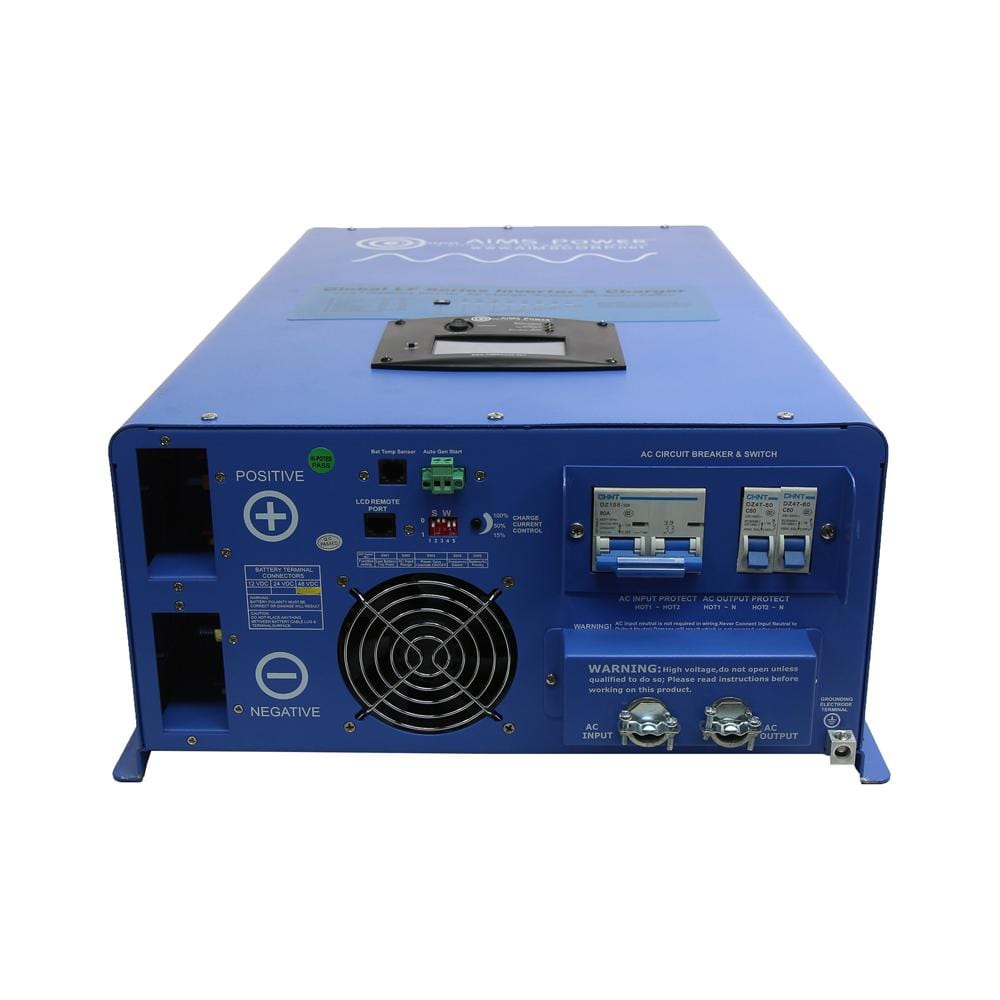

Aims PICOGLF10KW48V240VS Low Frequency 10000 Watt 48 Volt To 120/240VAC Pure Sine Inverter Charger
The Aims PICOGLF10KW48V240VS is inverter technology at its finest. The brand new AIMS Power 10,000 watt 48 volt pure sine low frequency inverter is heavy-duty, built for optimum strength and efficiency.
The PICOGLF10KW48V240VS transforms DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to power tools and appliances of all varieties. A built-in 50 amp transfer switch allows the product to automatically switch from using a battery bank to shore power. This is great in the event of a power outage, as the product will automatically detect the outage and redirect power from your backup battery bank. It also has a built-in 100 amp battery charger which uses AC power, from the grid or from a fuel-powered generator for example, that can be used to recharge a battery bank as well. The battery-type selector on the top of the unit allows the ability to adjust the voltage provided to the bank. One of the most sought-after features of an inverter is its built-in direct-connect terminal block, which allows users to surpass the 10000 watt capacity and harness its 300% surge power (30,000 watts for up to 20 seconds). Built with a 48 volt DC input, this inverter performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using 12 or 24 volts, which can be an attractive feature for sustainability.This inverter will output 120 or 220/230/240Vac, and it can output 50 or 60Hz via the SW4 switch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet. The Aims PICOGL10KW48V240VS is built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans. And it's protected from humidity or airborne dust and dirt by virtue of its marine-coated or "conformal-coated" boards.
- Battery Priority Selector
- Terminal Block for hard wiring
- Special outlet for large pumps
- Marine Coated and Protected
- Multi Stage 100 Amp Smart charger
- Remote panel available
- Auto gen start
- 10msec typical transfer time
- Optional 25 Watt power save mode
- 8 battery charger settings
- Ships Truck Freight
Specifications
| dimensions | 23.3" L x 16.3" W x 7.9" H |
| hertz | 50 Hz; 60 Hz |
| high voltage alarm | 64.0Vdc |
| idle consumption | 3.125 Amps DC |
| input voltage | 48 Volts DC |
| line mode efficiency | >95% |
| low battery alarm | 42.0Vdc-44.0Vdc |
| low battery trip | 40.0Vdc-42.0Vdc |
| low battery voltage restart | 62.0Vdc |
| nominal efficiency | >88% (Peak) |
| nominal input voltage | 48.0Vdc |
| output voltage | 110/220 AC Split Phase Output |
| surge watts (peak power) | 30,0000 Watts (20 seconds) |
| thd | < 10% DC |
| type | Pure Sine Wave |
| typical transfer time | 10ms (Max) |
| wattage | 10,000 Watts |
| weight | 145.5 lbs |
