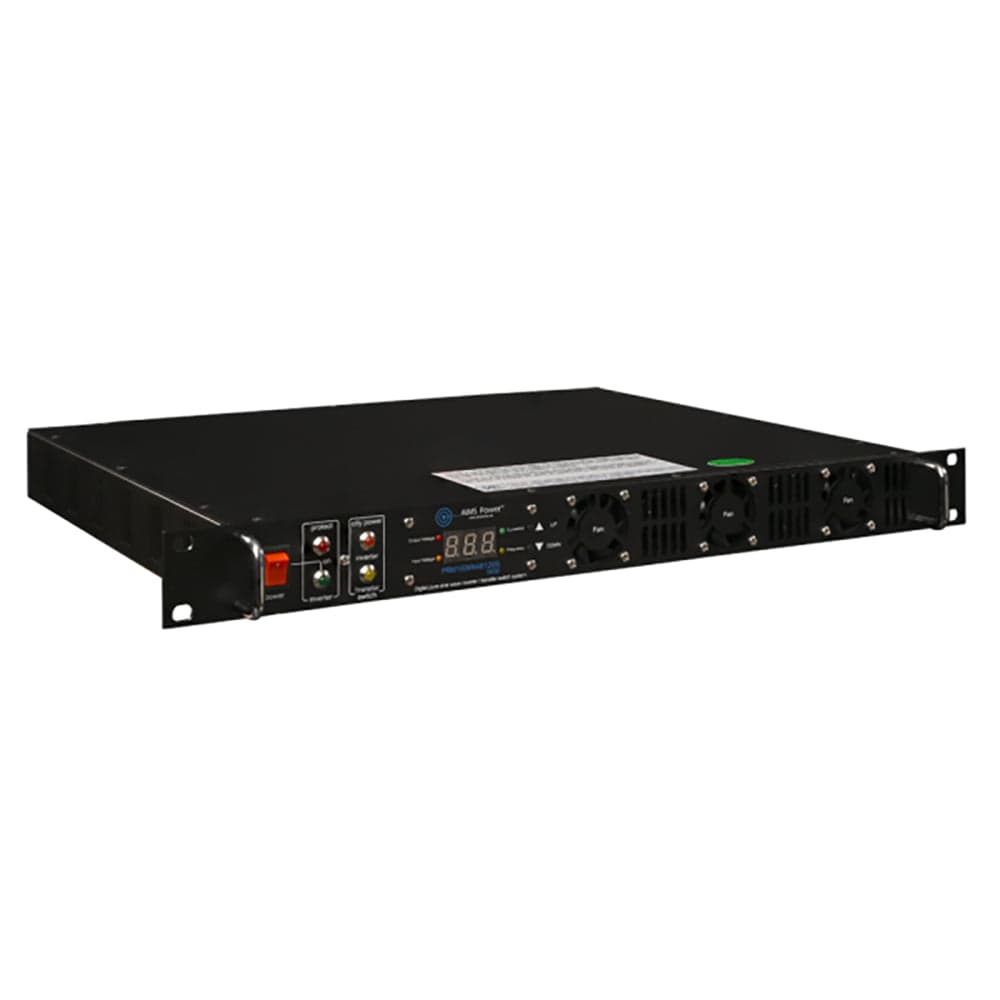

1000 Watt NEGATIVE 48 Volt Rack Mount Inverter To 120 Volt AC – 1U (-48V)
Ensure uninterrupted power with our advanced NEGATIVE 48V, 1U rackmount inverter, designed for telecom and data centers. Ideal for providing backup power to your essential equipment, this inverter generates 1000W of high-quality pure sine power at a stable 120Vac output. Thanks to the built-in 10 Amp transfer switch with a typical transfer time of less than 20ms, power is maintained seamlessly to your equipment. When city/utility power is available, it bypasses to provide consistent power. During outages, the inverter automatically switches to the backup DC power source, supplying power as long as the DC power supply provides enough voltage.
Monitoring is a breeze with the RS232 communication port, which offers real-time insights into DC input voltage, AC output voltage, frequency, and amps. Unmatched reliability, effortless integration, and consistent power supply ensure our rackmount inverter is the perfect solution for any setting where uninterrupted power is essential.
1000W continuous power, NEGATIVE 48 volt to 120 volt
Pure sine wave
1U Rackmount
FCC Class B
RS232 Communication Port – Monitored from a PC
Input dc voltage
Output ac voltage
Frequency
AC Current
Digital status display – Toggle
Input dc voltage
Output ac voltage
Frequency
AC Current
Dual AC receptacle
On/off switch
Utility power bypass
Automatic transfer switch
Over temperature indicator
Overload protection
Low battery voltage warning/shutdown
High input voltage protection with automatic shutdown
Overload indicator
Short circuit protection
Thermal and load based fan
AC output short circuit protection
Instruction manual
Free lifetime tech support
1 Year Warranty parts and labor from manufacturer
Continuous output power: 1000 Watts
Surge power capability (peak power): 2000 Watts
DC input / operating voltage: 41.0 to 60.0 Volts
Output voltage: 120 Volts ac
Output wave form: pure sine wave
Output frequency: 60 Hz
Low battery voltage shutdown: 40.6 Volts
Low battery voltage recovery: 42.7 Volts
Low battery voltage warning/shutdown
No load power consumption: Fan Off 0.27A dc – Fan On 0.32A dc
Frequency: 60hz
Efficiency: 91%
Over temperature protection low: -4 F ± 5 F
Over temperature protection high: 172 F ± 5 F
Operating temperature recovery: 136 F (automatic shutdown) ± 5 F
AC output socket type: dual Type 2 -3 prong
RS232 Communication Port
AC output and bypass protected: 10A Breaker
FCC Class B – F690501/RF-EMC000377(H)
Unit Weight: 11.5 lbs
Unit Size W x D x H: 16.5 x 14 x 1.7 inches – 2 inches with bracket
Battery terminal size: .25
