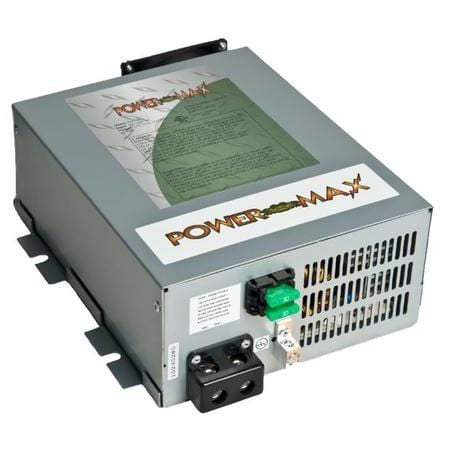

Description
The new, second generation, PowerMax Converter Chargers are here! The PM4 models include new, enhanced, fan control that are extremely quiet and built for optimum cooling.
Specifications
| ac current | @ 108VAC: 12 Amps |
| amps | 75 Amps |
| continuous output power | 75 Amps |
| dc output | No Load Approx. 14.8/13.2/13.6/14.4(DC) |
| dimensions | 7.15"L x 11"W x 3.48"H |
| efficiency | >93% |
| input frequency | 47-63 |
| input voltage range | 105 -135 AC |
| line regulation | 50 mVrms |
| load regulation | <1.0% |
| maximum power output | 1065 Watts |
| output voltage | 110 Volts |
| output voltage tolerance | No Load Approx. + or -.7% |
| overload protection | >100% |
| stages | 4 Stage |
| storage temperature | -20 to 80C |
| weight | 9 lbs |
| withstand voltage | 1240V |
| working temp | 0-45C |
