Progressive Dynamics PD4635LIV 35 Amp Lithium Upgrade / Replacement Converter Section

Progressive DynamicsSKU: PD4635LIV

Price:
Sale price$262.86
Stock:
5 In stock Free Shipping

Description

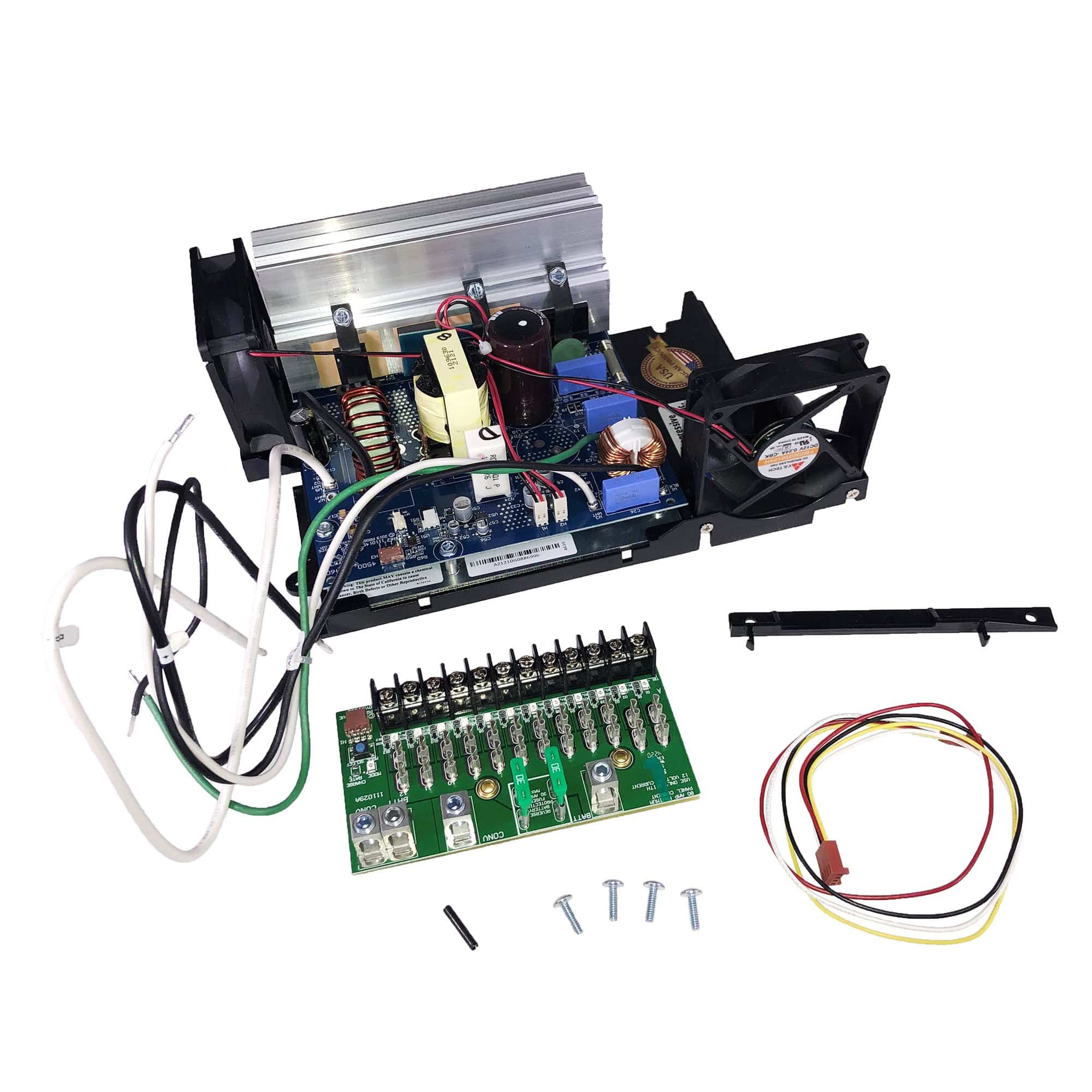

This is a replacement 35 Amp Lithium Converter meant to replace the WFCO 8935 Converter and the Progressive Dynamics PD4635 Lead Acid Converter

  • Replaces: WFCO 8935 Converter, Progressive Dynamics PD4635 Converter
  • This lithium replacement upgrade is designed to be used with 12v Lithium LifePO4 batteries that have a Battery Management System (BMS).
  • The PD4635LIV Lithium RV Converter offers a single stage charging profile that outputs a constant 14.6v designed to keep your Lithium Battery Fully Charged.



  • Compatible with only 12v Lithium LifePO4 Batteries with BMS.
  • Reverse Battery Protection
  • High and Low AC input protection
  • Variable Speed Cooling Fan
  • Thermal Protection
  • Direct Replacement for the WFCO 8935, Progressive Dynamics PD4635 Lead Acid Power Converter



Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Continuous Input Power 550 Watts
Cooling Fan Auto-variable speed
DC Output Voltage 14.6 VDC ±.3 VDC
Dimensions 11.13 x 7.38 x 3.94
Efficiency > 80%
Electronic Current Limiting Yes
Hipot Voltage Test 1240 V @ Input
Input Current @ Rated Power ~7.3 Amps
Input Voltage Frequency 50-60 HZ
Input Voltage Tolerance 105 - 130 VAC
Manufacturer Progressive Dynamics
Max. DC Output 35 Amps
Model PD4635LIV
Operating Temperature -0°C - 50°C
Over Voltage Protection Yes
Peak Inrush Current 32 Amps
Reverse Battery Protection Yes
Ripple / Noise Voltage < 50 MV RMS
Storage Temperature -20°C - 80°C
Thermal Protection Yes
Under Voltage Protection Yes
