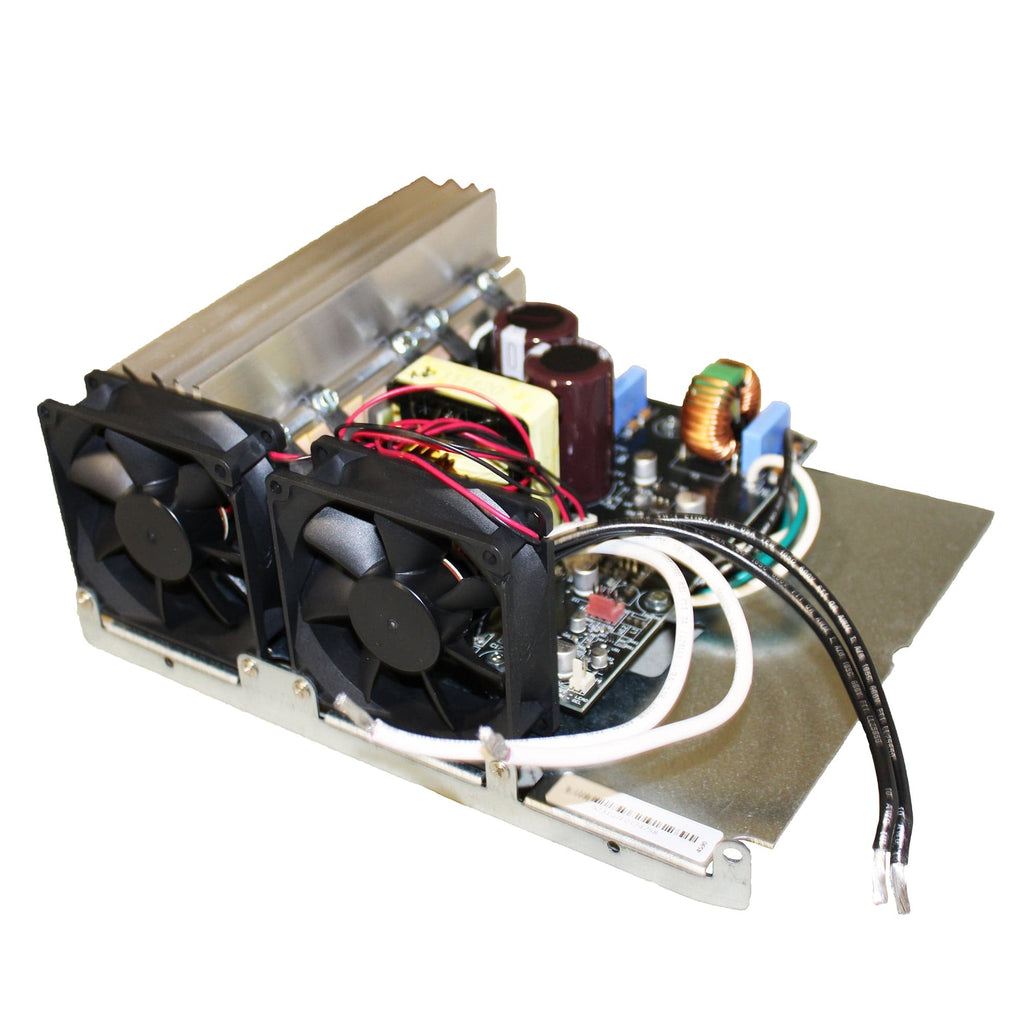

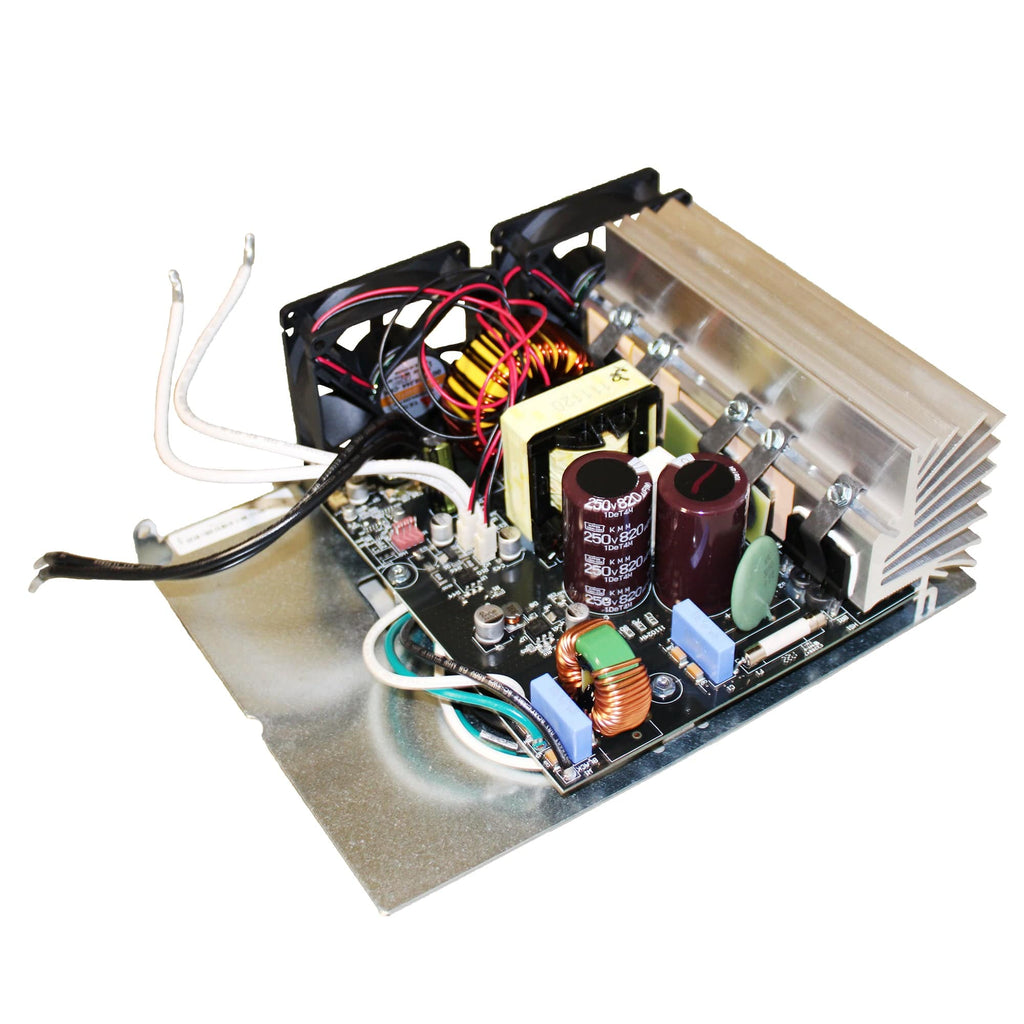

Progressive Dynamics PD4590CSV Inteli-Power Replacement Converter Section 90A

Save $589.39
Progressive DynamicsSKU: PD4590CSV

Price:
Sale price$333.67 Regular price$923.06
Stock:
In stock (9 units)
Free Shipping* (Some exclusions apply)

Description

The Progressive Dynamics PD4590CSV is a replacement converter section designed for the 4500 Series distribution panels. It features built-in charge wizard technology and is rated for 240 VAC at 50 AMPS. The AC Distribution Panel accommodates up to 12 branch breakers (not included) with a center feed dual 50 AMP main breaker option (not included).

Additionally, it offers 12 built-in push and lock strain relief wiring connectors for quick installation, saving over 50% on installation costs. The panel's versatile design allows for vertical or horizontal mounting and is constructed from impact-resistant high temperature polymers.

Features:

  • LED indicators identify which fuse is blown.
  • Converter/Charger section is accessible from the front
  • DC disconnect tie in
  • Electronic current limiting
  • Automatic thermal protection
  • Top ten fuse holders recommended for low current devices such as smoke
    and carbon monoxide detectors.
  • 18 branch fuse holders with 4-30 Amp circuits. Maximum rating 20 Amps
    on remaining circuits — available with terminal blocks .
  • LED indicators identify which fuse is blown.
  • Converter/Charger section is accessible from the front.
  • Converter/Charger ratings of 60, 75 and 90 Amps.
  • Easy access reverse battery protection fuses.
  • DC disconnect tie in.
  • Reverse battery protection
  • Electronic current limiting
  • High and Low AC input protection
  • Intelligent, variable speed, cooling fan
  • Lead Acid/ Lithium Switch is NEW feature
  • Automatic thermal protection
  • Press open door for easy access to circuit breakers
  • Front access to large wiring compartment
  • Optional DC Ground Buss can be user installed in the DC wiring compartment.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Back Up Thermal Protection Yes
Blown Fuse Indicators Yes
Breakers Max. 50 AMP Main | Up to 12 Branch Circuits
Cooling Fan Auto-variable speed
Cutout Size 10.125W x 13.25H
DC Disconnect Yes
DC Fuse Positions 12/18
Efficiency (Typical) > 80%
Electronic Current Limiting Yes
Full Function Charge Wizard Yes
Full Load Output Voltage > 12.6 VDC
Ground Bar Yes
Hipot Voltage Test 1240 V @ INPUT TERMINALS
Input 105-130VAC 50/60HZ 1550 watts
Input Current at Rated Power ˜17.7-AMPS
Input Voltage Frequency 50-60 HZ
Input Voltage Tolerance 105 - 130 VAC
No Load DC Output Voltage 13.6 VDC
No Load Voltage Tolerance +/- .3 VDC
Operating Temperature 0-50C
Output 13.6-14.6 VDC 90 Amps
Over Voltage Protection Yes
Peak Inrush Current 80-AMPS
Product Diameter 7.8"
Product Height 14.125"
Product Width 11.85"
Rating (Maximum Input) 240 VAC/50 AMPS
Rating (Maximum Output) 120 VAC/50 AMPS
Reverse Battery Protection Yes
Ripple & Noise Voltage <100 MV RMS
Storage Temperature -20-80C
Under Voltage Protection Yes
Weight 10 lbs
