Description

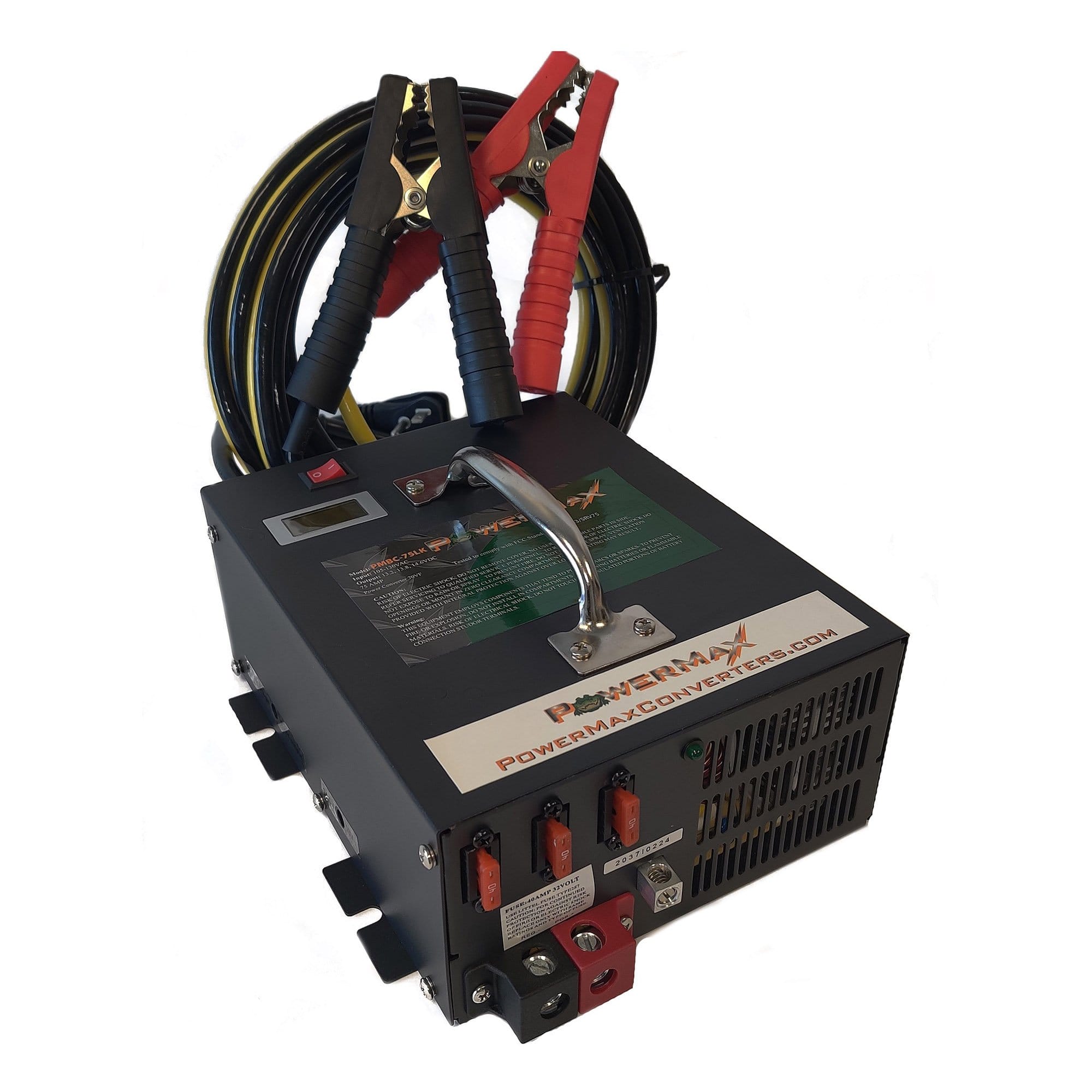

The Powermax PMBC-75LK 12 volt 75 amp converter charger is a state of the art battery charger using advanced switch mode technology to provide a constant supply of clean power. See the details tab for more information.
Specifications
| ac current | @108vac: 12 amps |
| amps | 75 Amps |
| continuous output power | 75 amps |
| dc output | No Load Approx. 13.6/14.4v dc |
| dimensions | 7.5"L x 10.5"W x 3.45"H |
| efficiency | >85% |
| input frequency | 47-63 |
| input voltage range | 105-135 ac |
| line regulation | 100mv ms |
| load regulation | <1.0% |
| maximum power output | 1065 watts |
| output voltage | 12 Volts |
| output voltage tolerance | No Load Approx. +/- .7% |
| overload protection | >100% |
| stages | 3 Stage |
| storage temperature | -20 to 80c |
| weight | 12 lbs |
| withstand voltage | 1240v @ leads |
| working temp | 0-45c |
