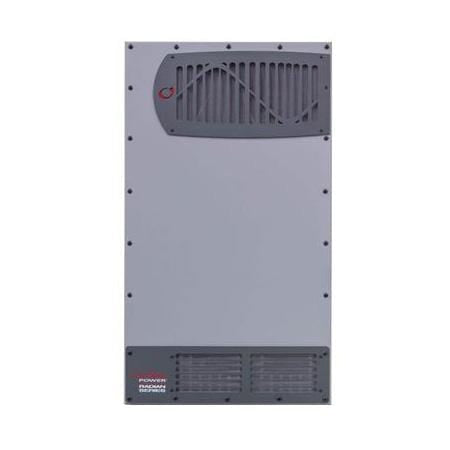

OutBack Power GS4048A-01 A-Series 4000 Watt, 60Hz, 120/240V Pure Sine Wave Inverter/Charger.
The Radian Series Grid/Hybrid™ (full-flexibility grid-interactive/off-grid) Inverter/Charger is engineered toward one goal: making system design and installation easier and faster in grid-interactive and comprehensive off-grid applications. This new series of Inverter/Charger keeps the unique features of the original designed which include easy field upgradeability and stacking capability for larger systems. This also includes dual AC inputs for grid/generator flexibility, boasts unparalleled surge capability and operational stability.
In addition to those features, the new unit also boasts a new Advanced Battery Charging profile option which supports battery technologies such as Lithium-Ion and others, wile additionally providing enhanced diagnostics information. The unit also comes equipped with OutBack’s GridZero technology, which is designed to allow for a smaller Inverter/Charger to perform on a level similar to a larger unit if required.
This unit has the following certifications:
IEC 62477-1, AS4777.2, AS477.3, EN61000-6-1, EN61000-6-3, EN61000-3-2, EN61000-3-3, AS3100, CE,
RoHS compliant per directive 2011/65/EU
|accessory ports||Remote temperature sensor (included), MATE3 and HUB communications|
|ac input voltage range||(MATE Adjustable) L1-N or L2-N: 85 to 140VAC|
|ac output frequency||60Hz (50Hz) (Selectable)|
|ac output voltage||120/240VAC (200-260VAC) (Selectable)|
|advanced battery charging||Flooded, gel, AGM, lithium-ion and flow chemistry|
|battery charge output||57.5ADC|
|continuous ac output current||16.7AAC (@ 25┬░C)|
|continuous power||4000 VA (@ 25┬░C)|
|dc input voltage range||40 to 64VDC|
|dimensions||28 x 16 x 8.7 (HxWxL)|
|grid-interactive frequency||59.3 to 60.5Hz|
|grid-interactive voltage range||L1-N or L2-N: 108 to 132VAC|
|idle power||Invert mode, no load: 34W Search: 10W|
|instantaneous power||8500 VA (100ms)|
|maximum ac input current||50AAC @ 240VAC|
|nominal dc input voltage||48 VDC|
|output voltage regulation||┬▒2%|
|peak power||4500 VA (30 Min)|
|surge power||6000 VA (5 Sec)|
|temperature range||Rated: -20 to 50┬░C Maximum: -40 to 60┬░C|
|total harmonic distortion||Typical: <2% Maximum: <5%|
|utility interactive current||15A|
