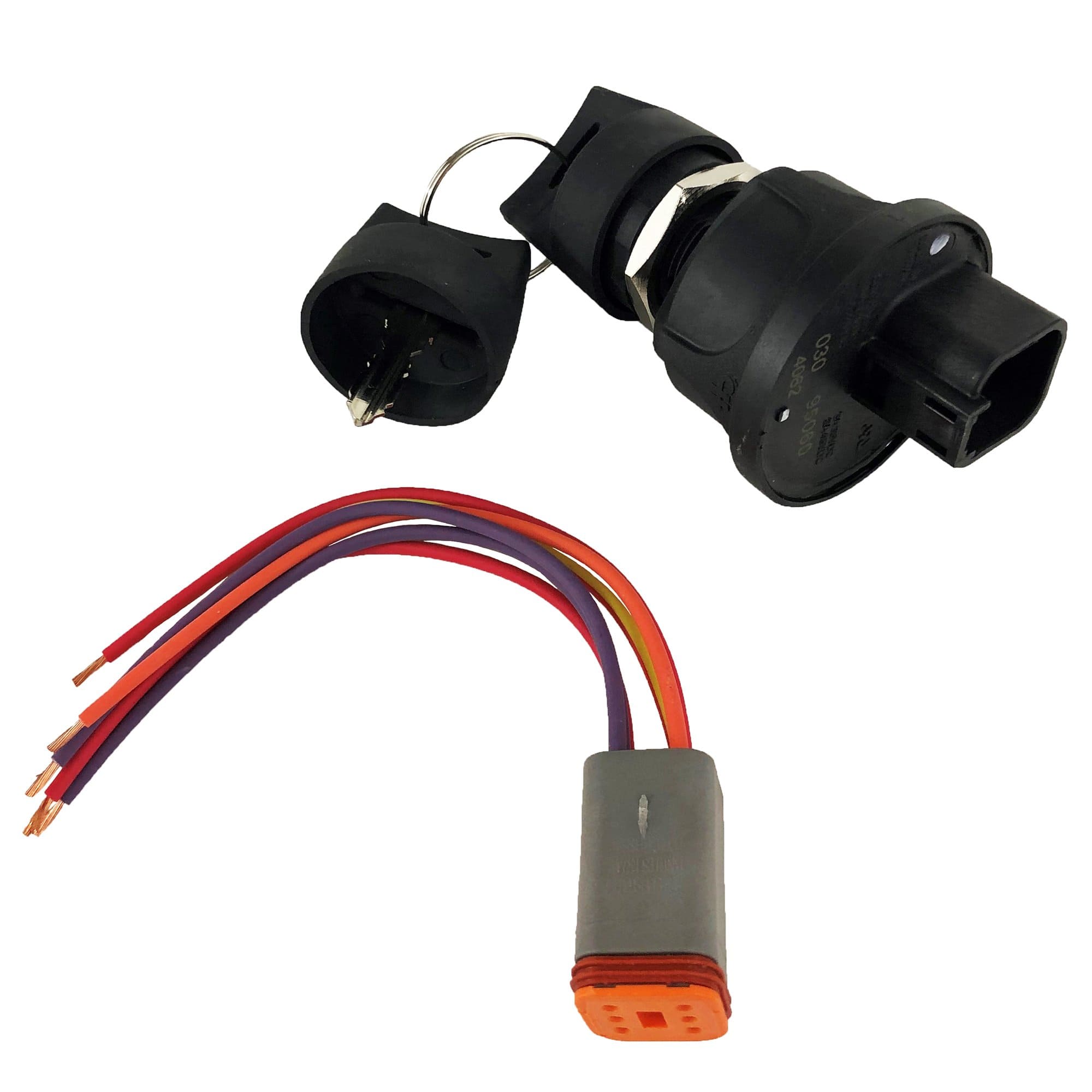

Littelfuse 95060-50-BP Rotary Keyed Ignition Switch 10A/12VDC IP67

LittelfuseSKU: 95060-50-BP

Price:
Sale price$31.75 Regular price$32.99 Save $1.24
Stock:
3 In stock Free Shipping

Description

An extensive series of ignition switches that can also be used as rotary switches. Suitable for a broad range of voltages: 10A at 12V, 5A at 24V, 3A at 36V and 2A at 48V DC. Made of rugged engineering grade plastic, these switches stand up to mechanical shock and vibration, and will not corrode or rust. This switch has an integrated Deutsch-type socket to make electrical connection quick and easy, and to exclude moisture and dust. UL-tested and recognized to SAE J259 for ignition switches. Contacts are sealed front and back to IP67 (with connector installed). Many options available with regard to position, spring return, key boot style and marking, actuator interface and length, and anti-restart features.



  • Engineering thermoplastic construction
  • Fully sealed contact area using O-rings and ultrasonic welding
  • Integrated Sealed Deutsch Connector Interface
  • Anti-restart and spring return options available
  • Tested to SAE J259 for ignition switches
  • Supplied with two matching keys, with or without boot
  • Custom logo can be molded on the boot
  • Multiple key codes or keyed alike available
  • Key is removable only at the -Off- position



Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Actuator Double Bitted Mixed Codes
Actuator Details Key Boot (With CH Logo)
Contact Material Copper
Current Rating (Continuous) 10A
Housing Engineered Thermoplastic
Input Terminals Accepts Deutsch Dt06-6s Connector Or Equivalent.
Number of Positions 4
Positions Acc - Off - Ign/Acc - Start with Spring Return to Ign/Acc and No Anti-Restart
