Dometic 3312487.337U A&E 9100 Power Awning Right Hand Arm Hardware - Reduced

Save $70.71
DometicSKU: 3312487.337U

Price:
Sale price$358.07 Regular price$428.78
Stock:
In stock (3 units)
Free Shipping* (Some exclusions apply)

Compatible With

8952003.400 Awning Hardware Systems only, it will not work with other 9100 awning hardware.

Includes

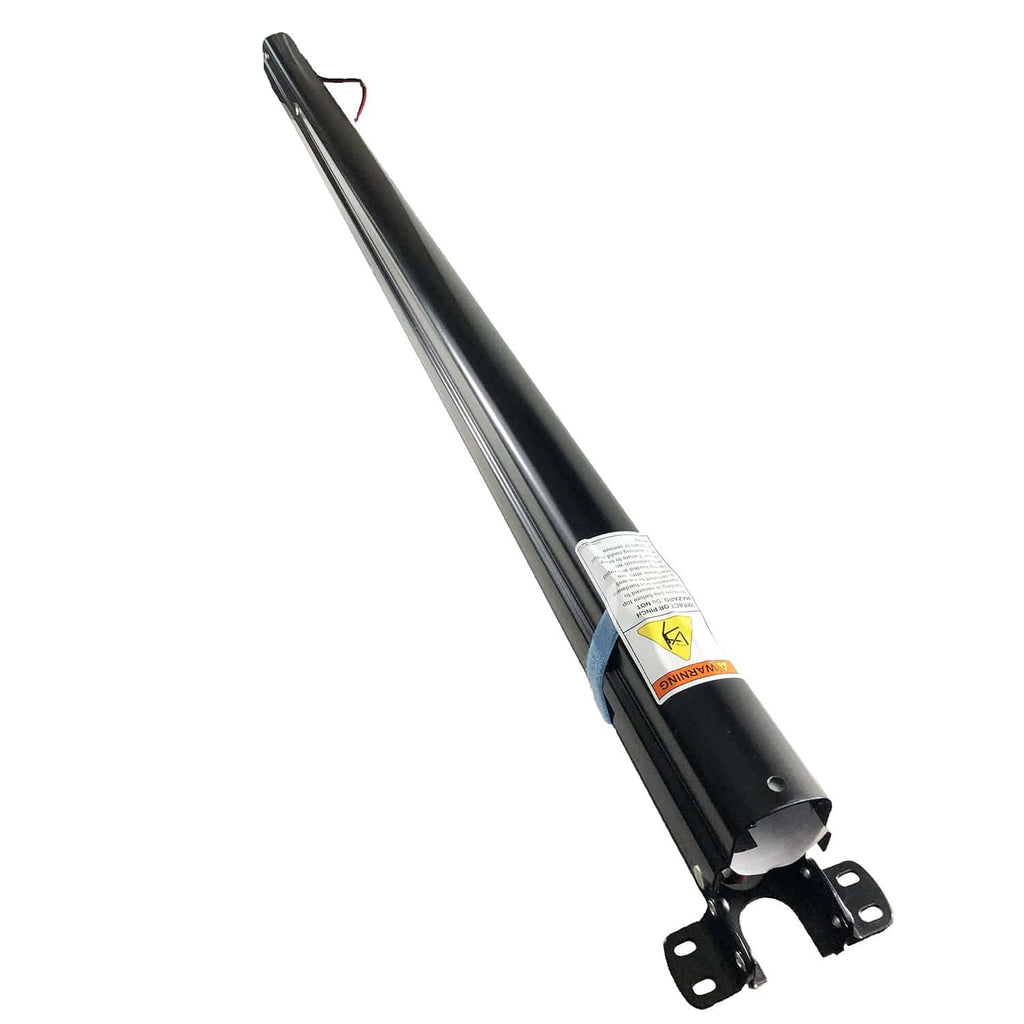

Awning Arm (RH)
Wire Harness (in RH Arm)

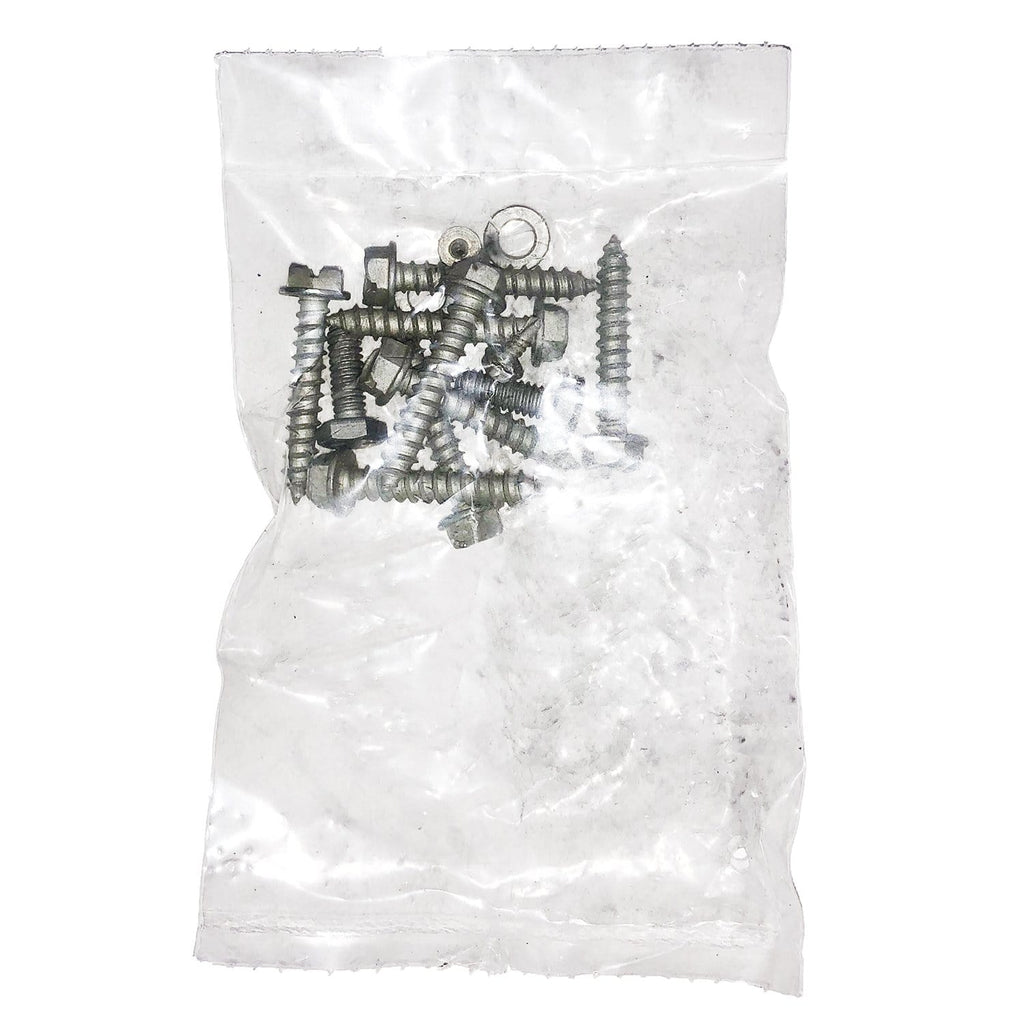

4x Lag Screws

Description

This right side awning arm hardware is designed specifically for use with Dometic 9100 or 9200 Power Awnings.


  • Compatible with 8952003 and 8962003 Series Awning Arm Hardware Systems
  • Reduced Style: Designed with a raised pivot point for a reduced pitch when extended
  • Adjustable Pitch: Adjust the arm pitch for protection from the weather
  • Gas Strut Support: Equipped with superior awning support



The adjustable pitch feature of this awning allows for better shade and protection from the sun, as well as preventing rainwater from pooling on the surface. Simply loosen the knob on the adjustable arm to change the angle of the awning, then tighten it to secure the arm in place.


Equipped with a gas strut, this replacement arm provides tension and support to keep the awning in place, even in windy conditions. It also helps distribute the weight and prevent stress on other parts of the RV.

The reduced pitch awning arms are not as common but are still used by some RV manufacturers. They come with standard lengths for both the back channel and front channel. However, the pivot point is raised resulting in a 2" drop of the awning when extended.

NOTE: The hardware back channel may have a slight bow due to the manufacturing process, but this is not a defect and will sit flat against the RV upon installation. The lightweight awning arm hardware relies on the strength of the RV's surface for support.

Compatibility: 8952003.400 and 8962003.400 Awning Hardware Systems


Back Channel Length: 65-5/8"

Front Channel Length: 64-7/8"

Lower Pivot Height: 33-3/8"

Projection with Awning: 91-1/2"

Extension Pitch Drop: 2"

Specifications

Back Channel Length 65-1/2"
color Black
Extension Pitch Drop 2"
hardware included Screws
Projection with Awning 91-1/2"
