Description

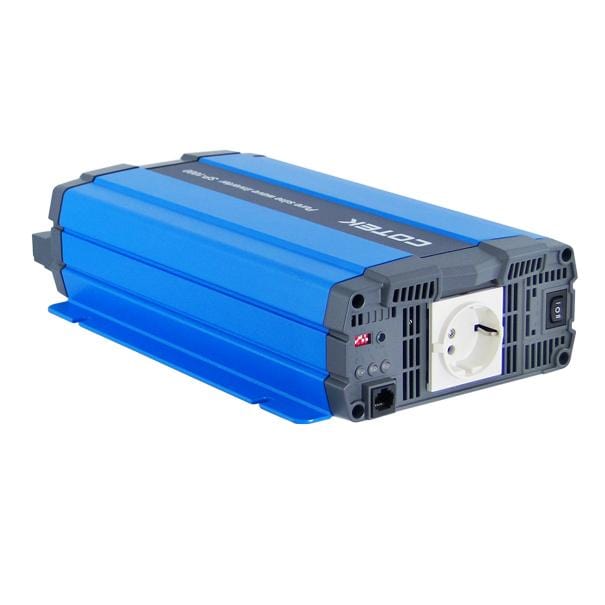

The Cotek SP1000-224 is a 1000 watt, 220 volt AC, 24 volt DC, pure sine inverter.
Specifications
| accessory (optional) | Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40 |
| ac regulation | ┬▒3% |
| ac voltage | 200 / 220 / 230 / 240VAC |
| brand | Cotek |
| dc input reverse polarity | By fuse |
| dc voltage | 24VDC |
| dimensions | 7.87"W x 3.27"H x 14.65"D |
| dry contact terminal | By relay |
| e-mark | Certified CISPR 25 ISO 7637-2 |
| efficiency | (Max): 94% |
| emc standards | Certified EN 55022 class B; EN 55024 EN 61000-3-2, -3-3 EN 61000-4-2, 3, 4, 5, 6, 8, 11 |
| frequency | 50/60 Hz -/+5% |
| input | 21.0 ┬▒0.5VDC (Under - Voltage Protection) |
| input over - voltage recovery | 29.0 ┬▒0.5VDC |
| input under - voltage recovery | 25.0 ┬▒0.5VDC |
| input voltage | 24 Volts |
| input voltage range | 21 - 33 Volts DC |
| led indicator | Input voltage level, output load level and faulty status |
| maximum output current | >1000VA~1150VA (100%~115%) |
| maximum power output | (1 min): >1000VA-1150VA (100%-115%) |
| no load current | Γëñ0.8A@24VDC |
| operating temperature | -4 to 104 degrees F (-20 to 40 degrees C) |
| output overload | Shutdown output voltage, restart to recover |
| output short | Shutdown output voltage, restart to recover |
| output voltage | 220 Volts |
| output waveform | Pure Sine Wave |
| over temperature | Heat sink temperature over 80┬░C ┬▒5┬░C |
| power saving mode | <0.05A@24VDC |
| rated power | 1000 VA |
| regulation | -/+3% AC |
| remote control terminal | 6-port green terminal |
| safety standards | Certified EN 60950-1 |
| storage temp. | -30┬░C ~ +70┬░C |
| storage temp. & humidity | 10 ~ 95% RH |
| surge power (max.3 sec) | <1750VA |
| voltage range | 21.0 ~ 33.0VDC |
| wattage | 1000 Watts |
| waveform | Pure Sine Wave |
| weight | 7.2 lbs |
