Description

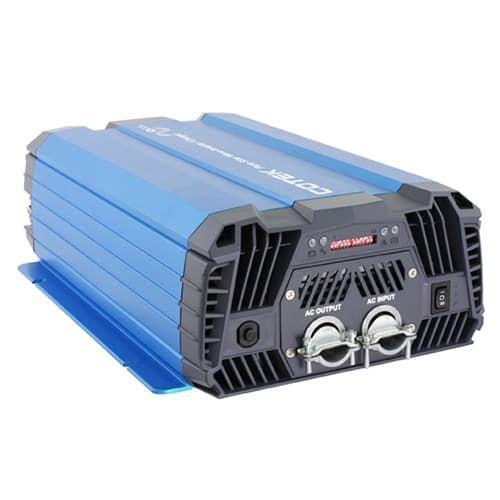

Cotek SC2000-212 2000W 12V Pure Sine Wave Inverter/Charger.
The Cotek SC2000-212 2000W 12V Pure Sine Wave Inverter/Charger is a Bi-directional inverter and charger that uses a 3-stage charging function. The unit uses automatically various operation modes: 1. Inverter mode 2. Charger mode 3. Power Sharing 4. Power Generation 5. Power Support. The unit has a wide working temperature range of -20oC ~ 40oC and high-power density (1200W @4.55kg, 2000W @ 6 kg).
Features:
- Bi-directional inverter and charger
- Automatically various operation mode: Inverter mode, Charger mode, Power Sharing, Power Generation, Power Support
- 3 stage charging function
- Wide working temperature range ΓöÇ-20oC ~ 40oC
- UL & CE Certified. Such as UL458 with marine supplement, UL1741, FCC approved
- -20oC~40oC full load operation without derating
- High Power density (1200W @4.55kg, 2000W @ 7.5 kg)
- Remote controller CR-20C / CR-16B / CR-8 (Optional)
- Charging Compensation via The Temperature Sensor (optional)
Specifications
ac output voltage | 100/110/115/120VAC ┬▒ 3%; 200/220/230/240VAC ┬▒ 3% |
dc input / operating voltage | 12V |
dc input voltage range | 10.5 ~ 16.5 VDC; 21 ~ 33 VDC |
dimensions | 251 x 116 x 453mm |
efficiency | >88% |
frequency | 50/60 Hz ┬▒ 0.3 Hz (User-selectable) |
operating temperature | -20C ~ 40C |
output waveform | Pure Sine Wave |
rated power | 2000W |
safety | UL458 & Supplement SA , FCC class A |
storage temperature | -30C ~ 70C |
surge power | Load 101%~115% (1 Min) ; 4000 VA (2 Sec) |
weight | 6Kg |
