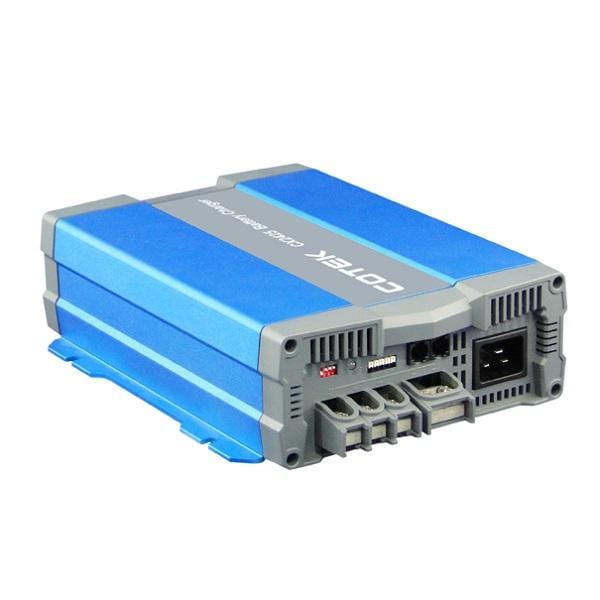

Cotek CX2425 Automatic Battery Charger / Power Supply

Save $57.63
Canadian PowerSKU: CX2425

Price:
Sale price$333.00 Regular price$390.63
Stock:
In stock (5 units)
Free Shipping* (Some exclusions apply)

Description

The Cotek CX2425 is a high performance, high efficiency 24 volt 25 amp 4 stage automatic battery charger and power supply that can be used in marine, RV and off grid applications.

Specifications

ac current 8.3 A / 100VAC 3.6A / 240VAC
alarm signal NC. / NO. Relay contact output (Please refer to page 5 Alarms Signal & Fan Control )
amps 25 Amps
banks 3 Bank
current range 0 ~ 25A
dimensions 8.3W x 3.0H x 10.7D inches; 213 x 76.5 x 272 mm
efficiency At 230VAC: 90%
ems immunity IEC 61000-4-2, 3, 4, 5, 6, 8, 11; ENV 50204
frequency 47 ~ 63Hz
input voltage 90 ~ 264VAC
isolation resistance I/P-O/P: 100M Ohms / 500VDC
leakage current For earth < 1mA / 240VAC
main output 3
main rated current 25A
output voltage 24 Volts
over voltage 17.5V 1%, Protection type: Shut down output (recovery after resetting AC power on)
power factor PF > 0.92 at full load
power mode Supply 13.2V Current limit output voltage
short circuit current rating Current is reduced to < 1A continued 30sec. , fan will operate 30 seconds then turn off
single output current limit 25A
stages 3 Stage
standard boost charge voltage 28.8V / 29.4V (Select by S1-1)
standard float charge voltage 27.6V / 27V (Select by S1-2)
temp. coefficient 0.03% (0 ~ 50 degrees C)
temperature compensation -10mV / 0.5 degrees C with COTEK temperature sensor
vibration 10 ~ 500Hz, 2G 10min. / 1cycle period for 60min. each along X, Y, Z axes
weight 6.3 lbs. ; 2.9 kg.
withstand voltage I/P-O/P: 4242VDC, I/P-FG: 1768VDC, O/P-FG: 700VDC
working humidity 20 ~ 90% RH non-condensing
working temp -20 ~ 50 degrees C (refer to output load de-rating curve)
