Cole Hersee 48512 Standard Low Voltage Disconnect Battery Isolator 150A

LittelfuseSKU: 48512

Sale price$88.35 Regular price$146.16 Save $57.81
0 Re-stocking soon Free Shipping

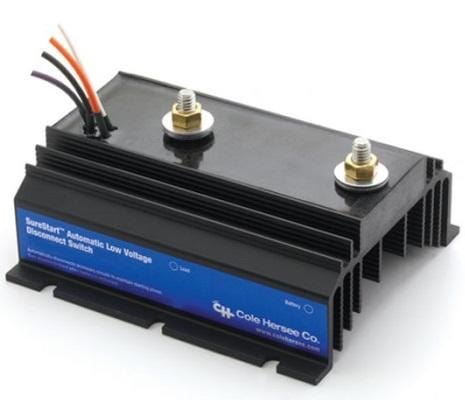

The Cole Hersee 48512 Is a standard low voltage disconnect battery isolator rated for 150 amps.

The Cole Hersee 48512 battery isolator automatically disconnects non-critical loads from a battery when the battery voltage drops below the predefined threshold. The unit then reconnects when when the battery is being charged to prevent damage.

  • Automatically prevents load disconnect during starting
  • Built-in factory programmable "snooze-timer" allows one hour override
  • Vibration and mechanical shock resistant design
  • Helps eliminate contact wear and extends battery life
  • Overcurrent, short circuit, and over temperature protection built in
  • Ignition Proof meets ISO 8846


amps 150 Amps @ 12VDC
amp draw 2mA Draw when not in use
dimensions 6"L x 5.1"W x 3"H
disconnect voltage 12.1 Volts DC (2 Min.)
reconnect voltage 13 Volts DC (10 Sec.)
