Bob's Machine 100-406000 - 6" Fixed Setback bracket 300HP

Save $508.78
Bob's MachineSKU: 100-406000

Sale price$284.35 Regular price$793.13
In stock (7 units)
Free Shipping* (Some exclusions apply)


These Jack Plates ship from the manufacturer and are built to order.

Please contact us prior to ordering for an ETA

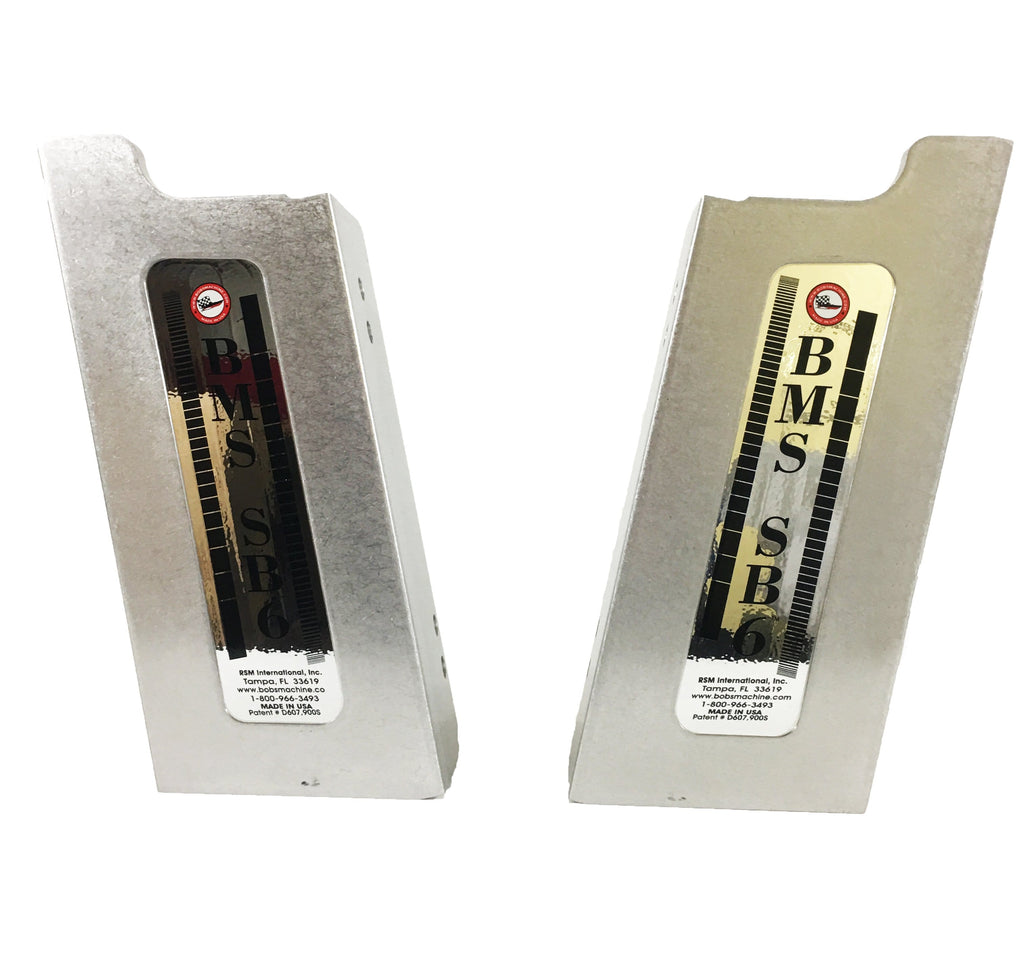

The 100-406000 is a 6", fixed setback bracket from Bob's Machine. It is designed to handle up to 300HP engines with ease. With 1.5 inches of built-in lift and the option to add up to 2.5 inches of lift using the two mounting holes, these brackets offer exceptional strength and versatility. Made from heavy-duty 6061 T6 aircraft-grade aluminum, they are among the strongest available in the market.

Installing these setback brackets provides numerous benefits for boaters, including improved fuel economy, better top speed, and a drier ride. By repositioning the motor into cleaner water, propeller efficiency is increased, reducing prop slippage and drag. The increased distance between the propeller and the hull also enhances boat operation in reverse.

The installation process is straightforward, requiring only the removal of the motor and installation of the brackets in the transom's existing holes. There's no need to plug and re-glass old holes, as the brackets are designed to fit all motors with the standard BIA bolt pattern. Additionally, the brackets come pre-drilled with two sets of mounting holes for different engine height adjustments, providing further flexibility and customization options.


  • Limited limited manufacturer's warranty
  • Handles up to 300HP engines
  • 1.5 inches of built-in lift
