Description

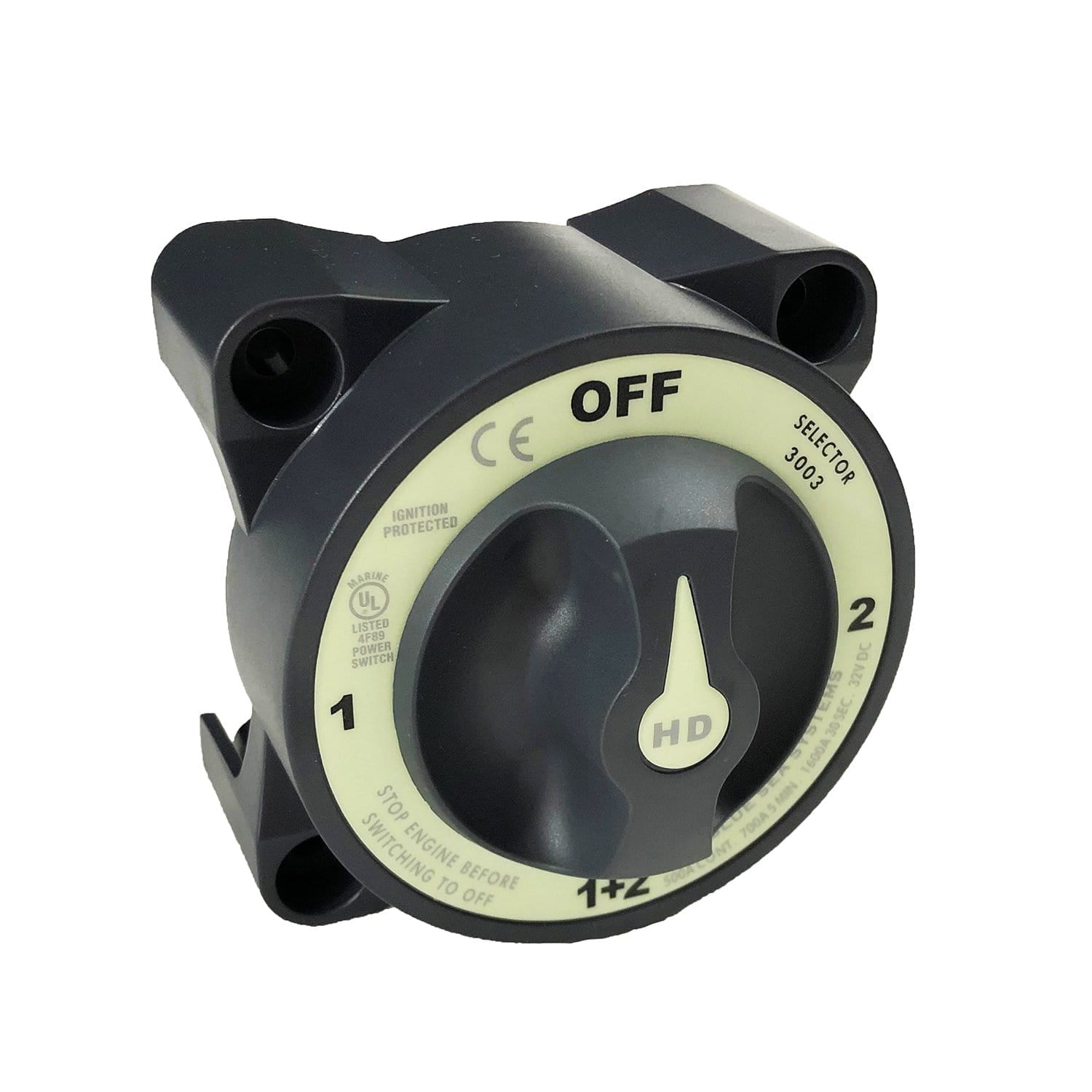

3003-BSS HD-Series Heavy Duty Selector Battery Switch with AFD by Blue Sea Systems. Switches isolates battery banks to all loads or combines battery banks to all loads.
Features:
- Includes AFD (Alternator Field Disconnect)
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm²) battery cables
Specifications
| alternator field disconnect | Yes |
| battery combine | Yes |
| battery inputs | 2 |
| cable clearance | 1.10in (27.94 mm) |
| cable size to meet ratings | 4/0 AWG (120mm┬▓) |
| color | Grey |
| continuous rating | 500A |
| cranking rating | 30 sec: 1600A |
| intermittent rating | 700A |
| max. voltage | 32V DC |
| mounting hole | Accept 1/4" (M6) Screw |
| stud material | Tinned Copper |
| switch positions | 4 |
| switch type | Selector 4 position |
| terminal stud size | 1/2" (M12) |
| terminal stud torque | 220 in-lb (24.86 Nm) |
