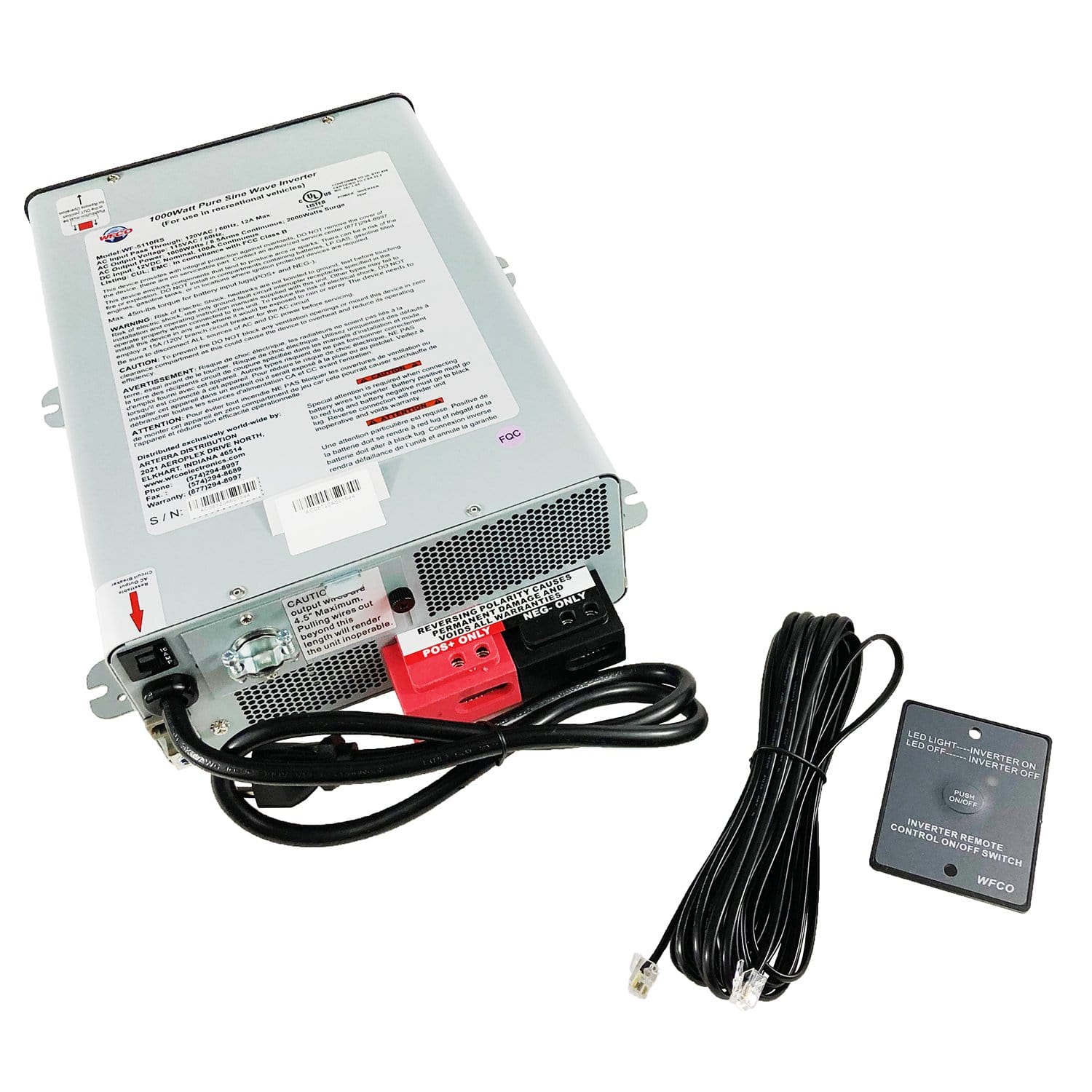

The WF-5110RS is a 1000W Pure Sine Wave inverter from WFCO.
This new and improved 1000 Watt WFCO inverter reduces parasitic draw and also maximizes battery efficiency and power. Reverse Polarity protection is featured and is automatically resettable. This unit is also protected from permanent damage if the battery were to be connected backwards. Once the batterie’s connections are corrected, the unit will resume normal operation. The model also has an exclusive internal transfer system automatically allowing AC input to bypass the inverter once connected to an AC power source.
The WF-5110RS improves on battery life and also provides high-efficiency power at full—load conditions with safeguards which include overload protection, over-temperature protection, and short-circuit protection. The cooling fan’s operation is controlled by the amount of load incurred by the inverter, this enhances the fan’s efficiency. The WF-5110RS is FCC Class B compliant meaning the inverter is designed to not interfere with televisions, radios, or other signals.
|certifications||FCC Class B compliant|
|continuous output power||1000 W|
|cooling||Load Controlled Cooling Fan|
|dc input||12V DC|
|dc input voltage regluation||10-15V DC|
|output voltage frequency||120 VAC/60Hz +/- 0.05%|
|output waveform||Pure Sine Wave (THD <3%)|
|output wiring||Hard Wired|
|protection||AC Output Fuse, GFCI, Over Temperature, Over, Overload, Reverse Polarity, Short Circuit|
|status indicator lights||Greed LED: AC Input Status, Red LED: Inverter Failure, Yellow LED: Battery Back Up Status|
|transfer time||<50 milliseconds|
