Description

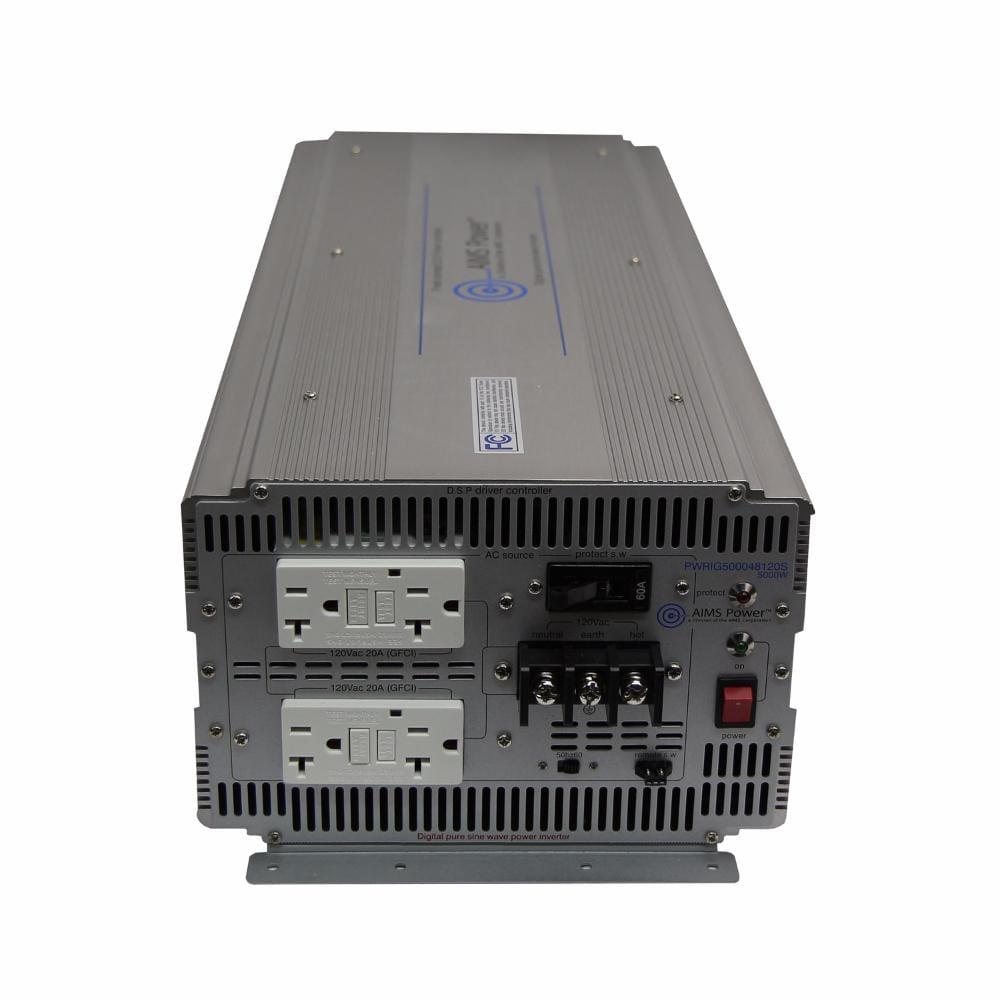

The Aims PWRIG500048120S is a 5000 Watt, 48 Volt, Pure Sine Power Inverter.
- 24 Volt DC input
- 60hz or 50hz switch
- Highly efficient - improved ouptut at low voltage
- 2 - GFCI Dual Outlet
- GFCI Outlets rated at 20A per block.
- Direct connect AC Terminal Block
- Connector and cable for remote on/off switch
- Isolated ground & neutral (bondable)
- Short circuit protection (GFCI and AC Breaker)
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker
- Dual cooling fans thermally controlled
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
Specifications
brand | Aims |
cooling fan on temperature | 40 C┬░ |
dc input / operating voltage | 48 V (41V-60V) |
dimensions | 23.75" L x 8.88" W x 6.25" H |
efficiency | 0.9 |
high battery return on power | 58.8V |
high battery shut down | 62.9V |
input voltage | 48 Volts |
low battery return on power | 42.5V |
low battery shut down | 40.0V |
no load current | (Fan Off) 0.60A 48V / (Fan On) 1.08A 48V |
output frequency | 50/60 Hz |
output voltage | 120 Volts |
over temperature protection | -25 C - 79 C |
surge watts (peak power) | 10000 Watts |
wattage | 5000 Watts |
waveform | Pure Sine Wave |
weight | 27 lbs |
