Description

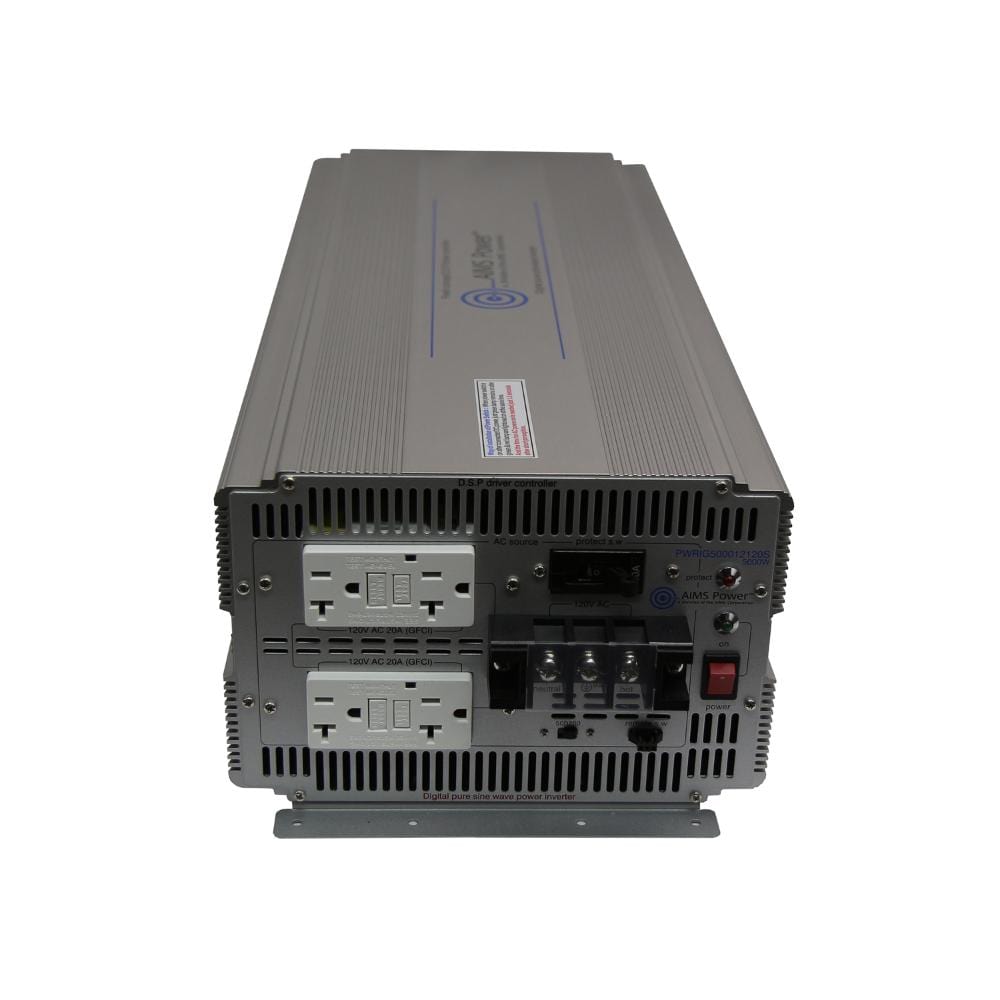

The Aims PWRIG500024120S is a 5000 Watt, 24 Volt, Pure Sine Power Inverter.
- DC Input Voltage 26.4V (21V-30V)
- Output Voltage no load 120Vac +/- 3%
- Continuous 5000 Watts
- Surge 10000 Watts
- 91% Efficiency full load
- Dual cooling fans thermally controlled
- Direct connect AC Terminal Block
- Isolated ground and neutral
- Short circuit protection (GFCI and AC Breaker)
Specifications
| brand | Aims |
| cooling fan on temperature | 40 C┬░ |
| dc input / operating voltage | 26.4V (21V-30V) |
| dimensions | 23.75" L x 8.88" W x 6.25" H |
| efficiency | 0.91 |
| high battery return on power | 22.4V |
| high battery shut down | 31.7V |
| input voltage | 24 Volts |
| low battery return on power | 22.4V |
| low battery shut down | 20.0V |
| no load current | 1.3A 24V (Fan Off) / 2.2A 24V (Fan On)  |
| output frequency | 50/60 Hz |
| output voltage | 120 Volts |
| over temperature protection | -25 C┬░ - 79 C┬░ |
| surge watts (peak power) | 10000 Watts |
| wattage | 5000 Watts |
| waveform | Pure Sine Wave |
| weight | 27 lbs |
