Description

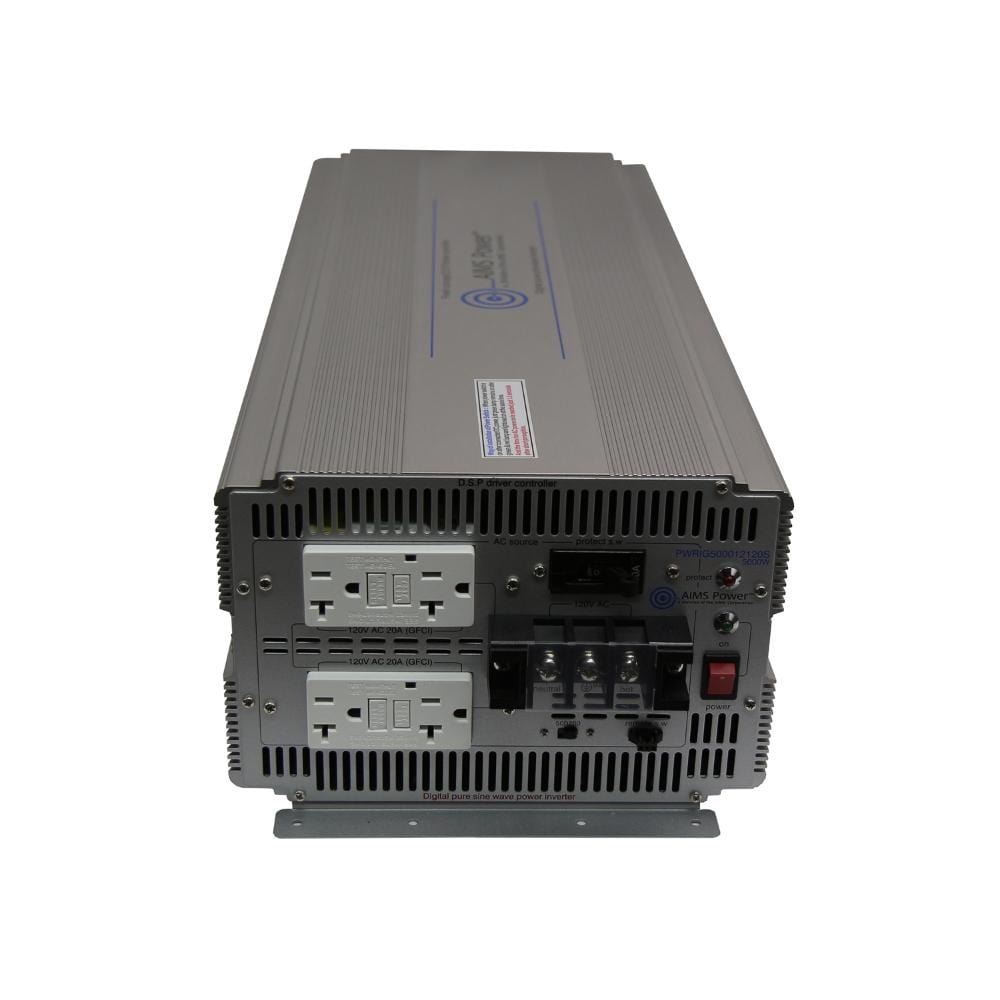

The Aims PWRIG500012120S is a 5000 Watt, 12 Volt, Pure Sine Power Inverter. See the specs tab for more information.
- 12 Volt DC input
- 60hz or 50hz switch
- Highly efficient - improved ouptut at low voltage
- 2 - GFCI Dual Outlet Direct connect
- AC Terminal Block Connector and cable for remote on/off switch
- Isolated ground & neutral (bondable)
- Short circuit protection (GFCI and AC Breaker)
- GFCI Outlets rated at 20A per block.
- On/off switch
- 5 Function Protection LED indicator
- AC Breaker Dual cooling fans thermally controlled
- Instruction manual
- 1 year tech support
- 1 Year Warranty Parts and Labor replacement
Specifications
brand | Aims |
cooling fan on temperature | 40 C┬░ |
dc input / operating voltage | 13.2 V (10.5V-15V) |
dimensions | 23.75" L x 8.88" W x 6.25" H |
efficiency | 0.91 |
high battery return on power | 15.0V |
high battery shut down | 15.9V |
input voltage | 12 Volts |
low battery return on power | 11.2V |
low battery shut down | 10.0V |
no load current | 2.6A 12V (Fan Off) / 4.4A 12V (Fan On) |
output frequency | 50/60hz |
over temperature protection | -25 C┬░ to 79 C┬░ |
surge watts (peak power) | 10000 Watts |
wattage | 5000 Watts |
waveform | Pure Sine Wave |
weight | 27 lbs |
