Aims PICOGLF10W12V120V 1000 Watt 12 Volt Low Frequency Pure Sine Inverter Charger


Sale price$738
5 In stock Free Shipping

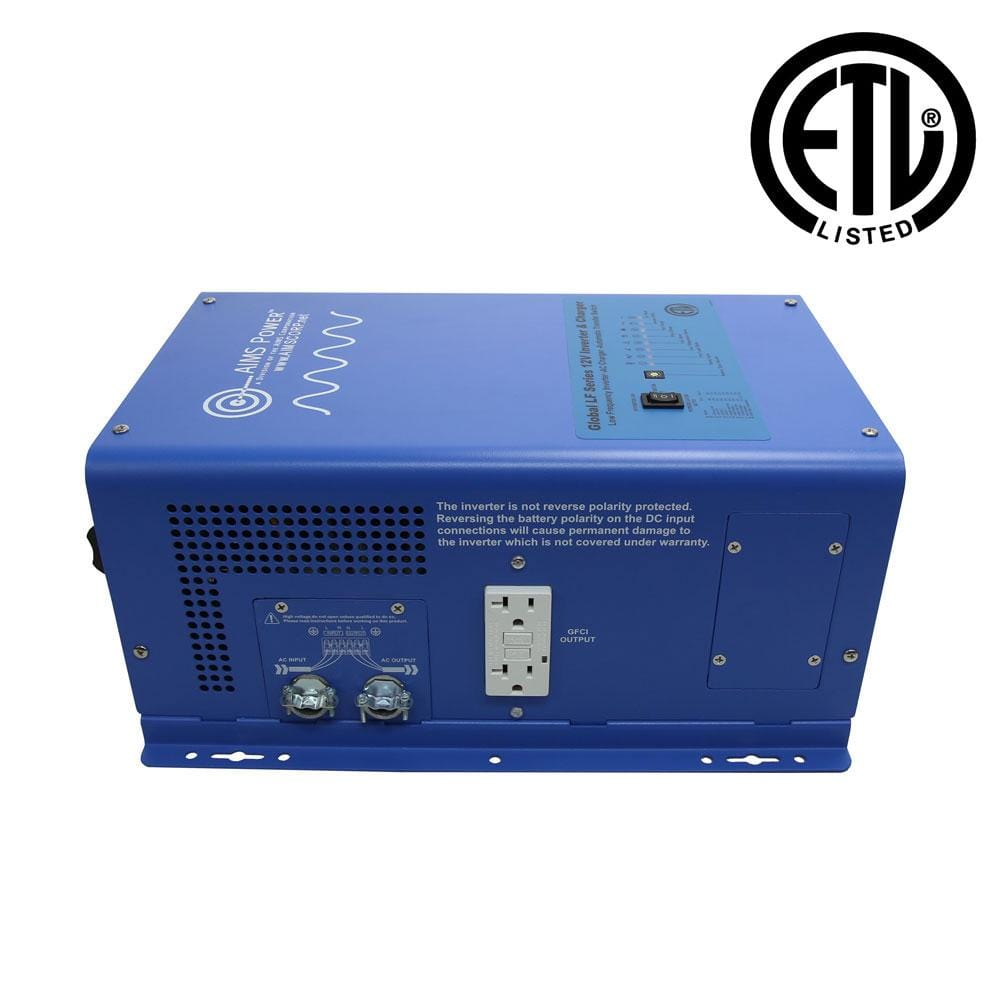

The AIMS Power PRICOGLF10W12V120VR is a 1000 Watt Pure Sine Low Frequency Inverter with Built-in Charger. This inverter charger is perfect for small sized industrial applications where you need to depend upon power being there under heavy load.

This heavy-duty inverter charger is ready to go where ever you need it. From the Camp Site to the Tailgating party all the way to helping power your essential home appliances during a power outage emergency. This inverter is also great in a smaller RV or boat applications. The picoglf10w12v120v inverter charger is capable of accepting any source of 120v AC power to charge your batteries from a gas or diesel generator to shore power at an RV Park or truck stop. It will even accept power from an extension cord from the home. This inverter charger is capable of a 3000 watt surge for 20 seconds, and can run at 1000 watts continuous. As an additional feature, this inverter is capable of being used worldwide with it's Auto Frequency Detection in any country that will accept a 120vac output. It works with Type-A plugs or a direct 3-wire terminal connection. This inverter comes with a Dual-Plug GFCI outlets with a reset button. This inverter will never completely drain your batteries as it's low-voltage shut-down keeps the voltage at around 10 volts or 10.5 volts depending on your selection. With the battery priority mode, you can select that the inverter runs directly off of your battery back-up system instead of a generator or tertiary source of AC Power. The inverter charger comes with a Power Saver mode that pulses every 30 seconds, attempting to detect a necessary load of 25 watts or more before it will turn on. Otherwise, the inverter will "sleep" and draw right around a half an amp per hour, saving you precious reserve power in your batteries until you need it. An optional wired remote can be added for fast and easy operation if your inverter charger is mounted in a location that is difficult to reach. This allows the unit to be operated within the cab of a vehicle or from another location in the home or campsite.

  • 1000 watt low frequency inverter
  • 3000 watt surge for 20 seconds 300% surge capability
  • Battery Priority Selector
  • Terminal Block for hard wiring
  • GFCI outlet
  • Marine Coated and Protected
  • Multi Stage 20 amp Smart charger
  • Remote panel available
  • Auto frequency
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 7 battery type settings for charger
  • Idle Consumption:Power Saver Mode Idle Consumption:Output voltage: Depends on battery Type
  • Over Charge Protection Shutdown 15.7V
  • Selectable Charge setting based on battery type
  • Adjustable charge current off-20%-100%
  • Four Stage Smart Charger
  • 30 amp automatic transfer switch, 10 ms (max)
  • Dimensions
  • Unit Weight: 35 lbs.



charger rate 20A
continuous output power 1000 Watts
hertz 50 Hz; 60 Hz
high voltage alarm 16.0Vdc
line mode efficiency >95%
low battery alarm 10.5Vdc-11.0Vdc
low battery trip 10.0Vdc-10.5Vdc
low battery voltage restart 15.5Vdc
minimum start voltage 10.0Vdc
nominal efficiency >88% (Peak)
nominal input voltage 12.0Vdc
output frequency 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
output voltage 12 Volts
surge rating 3000 watts (20 seconds)
thd < 10% DC
type Pure Sine Wave
typical transfer time 10ms (Max)
wattage 1,000 Watts
