Description

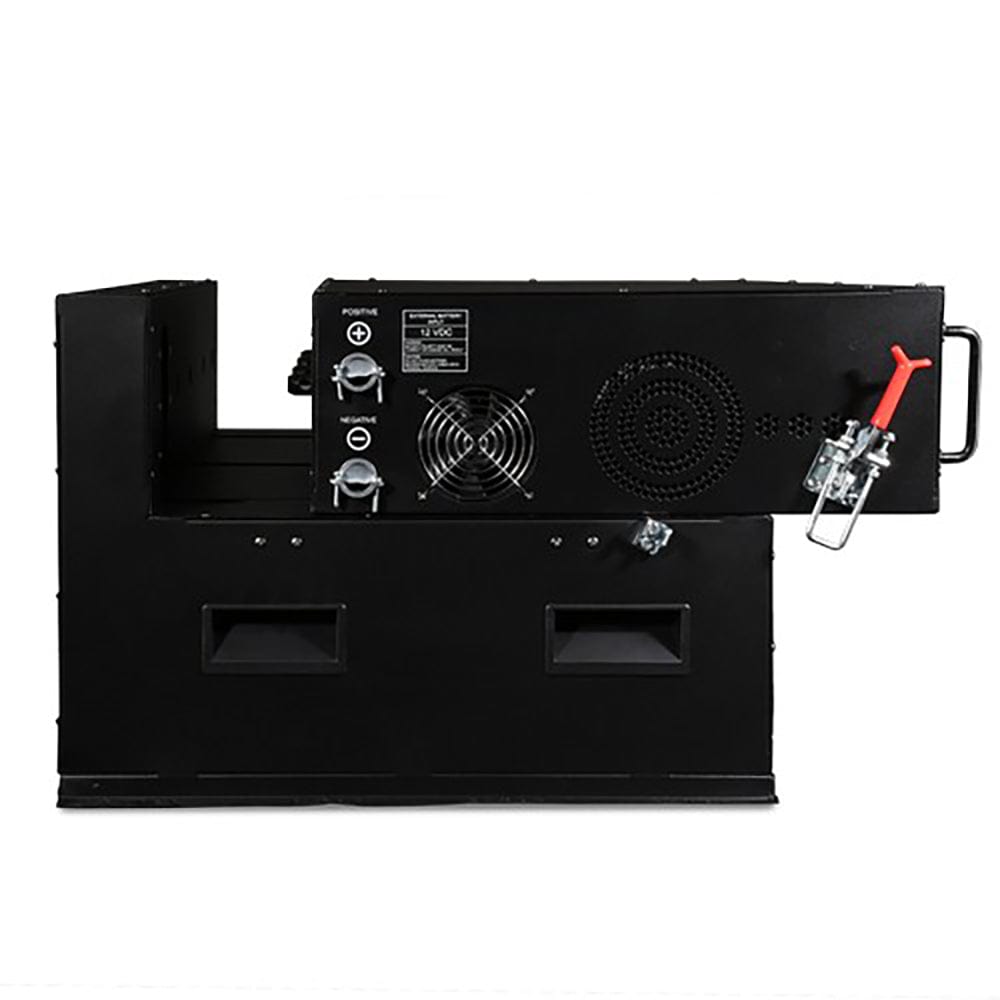

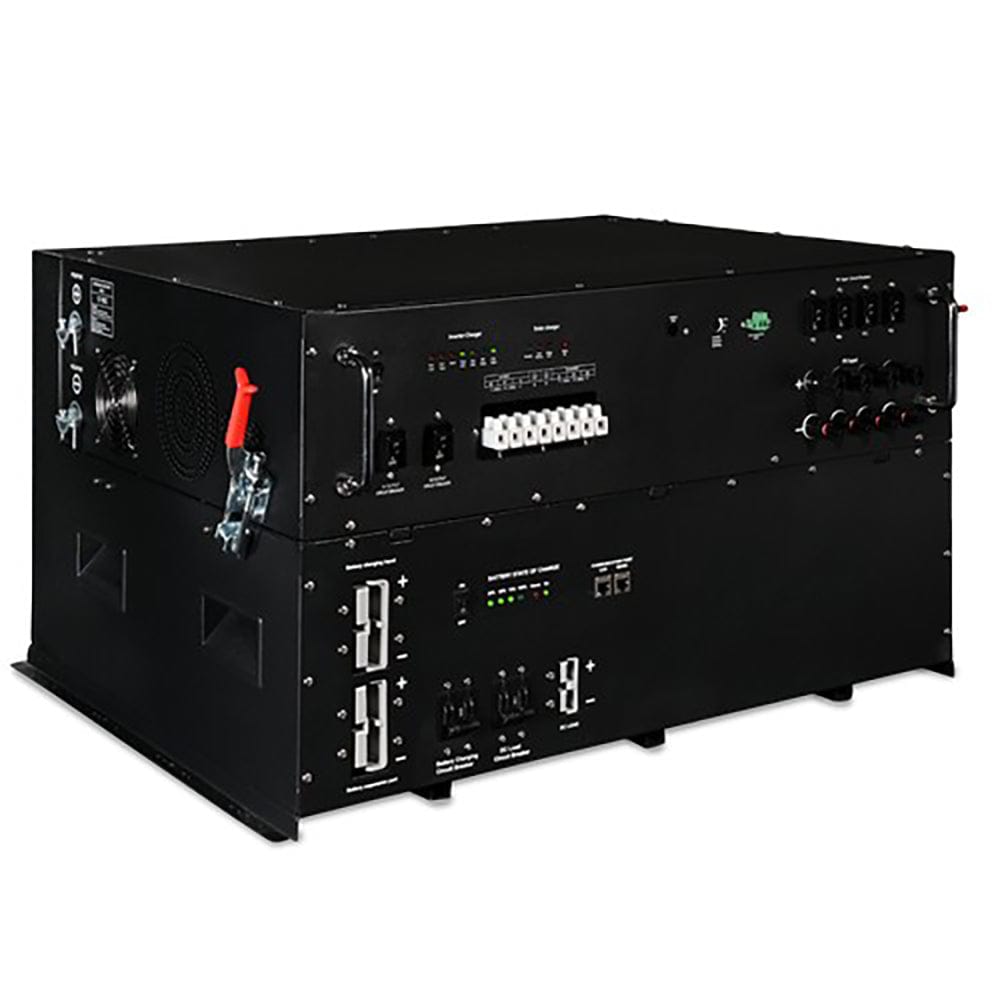

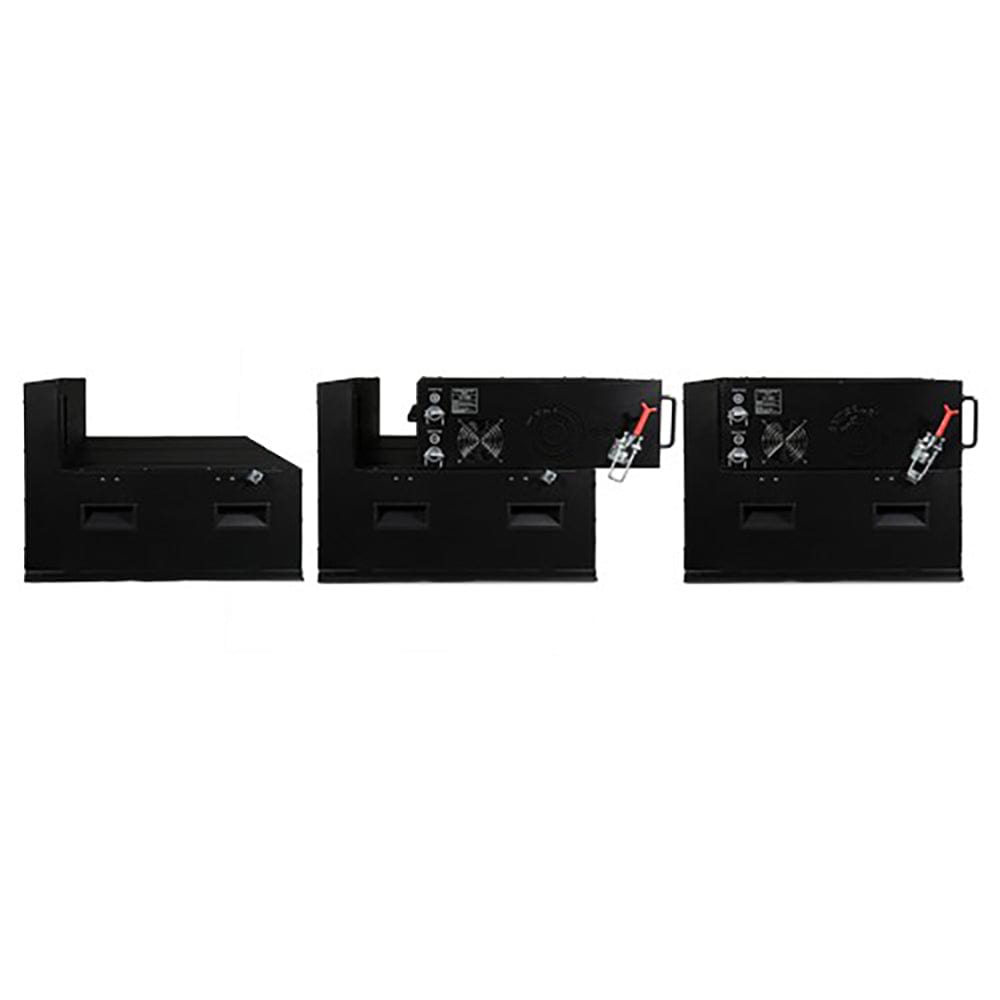

5.58 kWh Lithium Battery 12V, 420A. This battery is used as an extra add-on for the All in One Solar Power box. The AlO Solar Power Box can use up to 8 aux batteries for large amounts of stored power, up to 50,274 WH (50.27 KWH)! The solar power box recharges the batteries using solar, alternator, grid, generator or a combination.
Specifications:
INVERTER OUTPUT:
Continuous Output Power: 3000W
Continuous Output voltage: 120V Inverter - 120/240V Bypass Mode
Surge Rating(20s): 9000W
Electric Motor Starting Capacity: 3HP
Output Waveform: Pure Sine Wave
Nominal Efficiency: 83%(Peak)
Line Mode Efficiency: >95%
Power Factor: 0.9-1.0
Nominal Output Voltage rms: 120Vac
Output Voltage Regulation: ±10% rms
Output Frequency: 60Hz ± 0.3Hz
AC Short Circuit Protection: Yes. Current Limit Function (fault after 1s)
Max THD Under Full Load: <10% DC-AC
Typical Transfer Time: 10ms (Max)
DC INPUT:
Nominal Input Voltage: 12V
Minimum Start Voltage: 11.5/12V
Low Battery Alarm: 12/12.5V
Low Battery Trip: 11.5/12V
High Voltage Alarm & Fault: 16V
High DC Input Recovery: 15.5V
Low Battery Voltage Recovery: 12.5V
CHARGE:
Input Voltage Range: 90-135Vac
Input AC Current: 15A for Charge Only | 50A Bypass
Output Voltage: 13.6V
Charger Breaker Rating: 30A
Max Charge Current (DC): 100 Amp
Battery Initial Voltage for Start Up: 11.5/12V
Over Charge Protection Shutdown: 14.6V when using the lithium battery, see DC Input specs for other battery types
Charge curve (4 stage constant current ) digital controlled progressive charge: Bulk, Absorb, Float, Restart
LiFePO4 Battery Type: Fast V, Float V
Charge for Lithium Battery: 14.2, 14.2
BYPASS & PROTECTION:
Input Voltage Waveform: Sine wave (Grid or Generator)
Nominal Voltage: 120 AC Output and 120/240 VAC Bypass
Low Voltage Trip: 90V±4%
Low Voltage Re-engage: 100V±4%
High Voltage Trip: 140V±4%
High Voltage Re-engage: 135V±4%
Max Input AC Voltage: 150VAC
Nominal Input Frequency: 60Hz
Low Freq Trip: 40±0.3Hz
Low Freq Re-engage: 42±0.3Hz
High Freq Trip: 70±0.3Hz
High Freq Re-engage: 68±0.3Hz
Overload Protection: Circuit Breaker
Output Short Circuit Protection: Circuit Breaker
Wake-up Feature for Lithium: Yes
Breaker Rating for AC Output: 50A
OTHER:
Operating Temp: -20 to 50˚C/-4 to 122˚F
Bluetooth: Optional Bluetooth Dongle (AIMS PRO)
Remote: Optional LCD Display (REMOTELF)
