Description

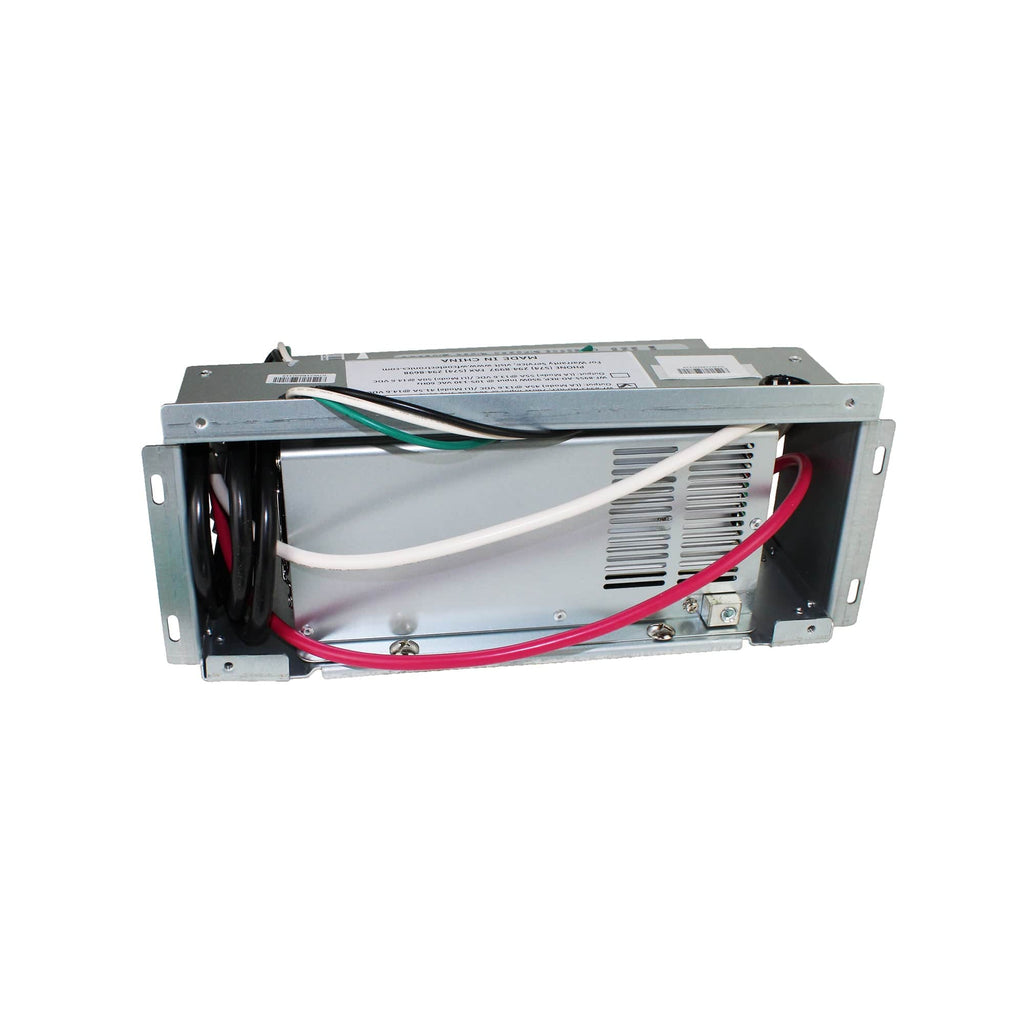

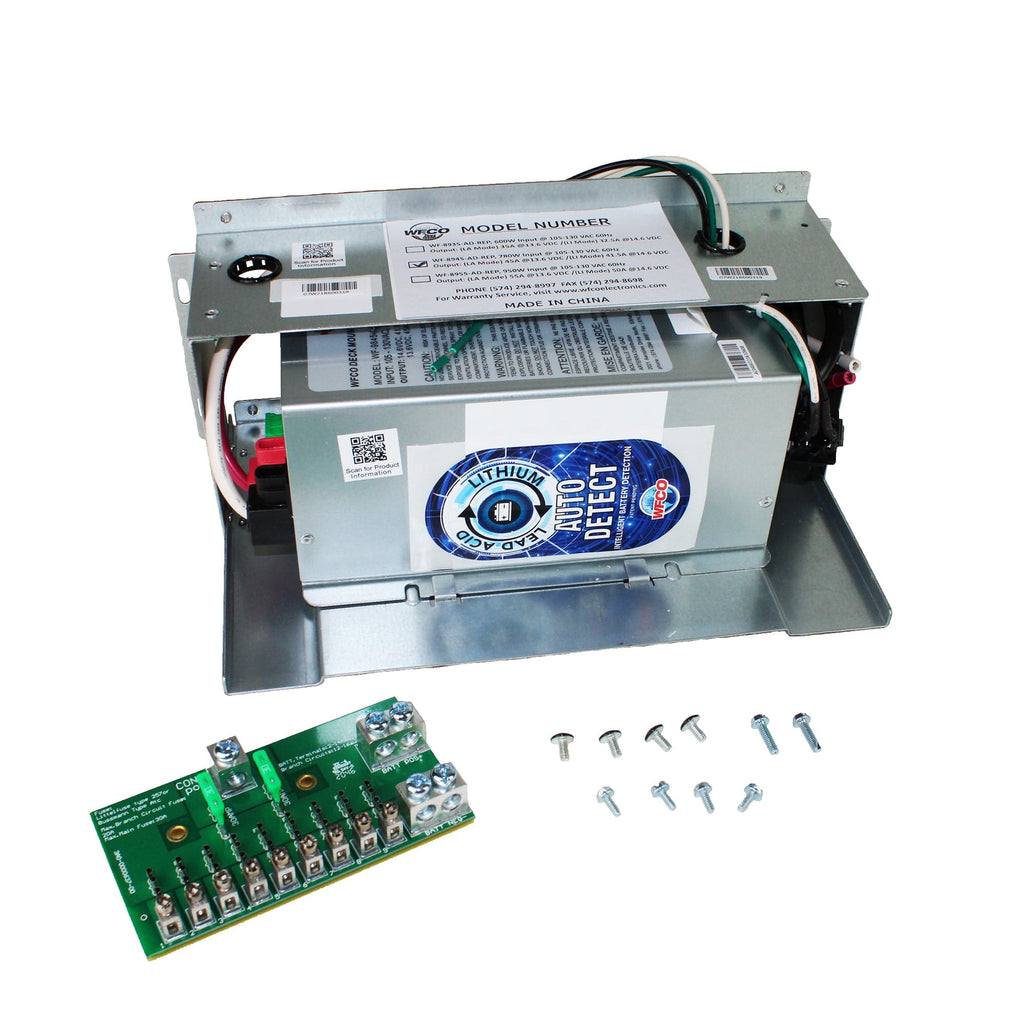

This is the WFCO WF-8900 Series WF-8945-AD-REP 45-amp DC universal deckmount auto detect converter replacement kit. Featuring Patent Pending Auto-Detect technology. This new microprocessor-driven technology detects lithium ion and lead acid battery chemistries and automatically adjusts the charging profile to match the battery type.
No more buttons. No more switches. Creating peace of mind that batteries will be accurately charged, eliminating over and undercharging risks. Additionally, battery life will be maximized with multi-stage charging and current monitoring in both lead acid and lithium profiles.
- Multi-stage charging to maximize battery life
- Auto detect capability
- Current monitoring
- Adjusts charging profile to match battery type
- No buttons, no switches
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
Absorption Mode | 13.6V DC (nominal voltage) |
AC Circuits (twin breakers) | 1 main and 5 branch circuits, 10 (Main and 9 Branch Circuits) |
Bulk Mode | 14.4V DC (quick charging voltage) |
Certifications | FCC |
Converter Type | Three-Stage Converter Charger, Two Stage Converter Charger |
Cooling System | Yes |
DC Circuits | (2 30A max), 11 (9 20A max) |
Dimensions | 12 3/16″ x 10 7/8″ x 7 1/4″ |
Float Mode | 13.2V DC (trickle charge voltage) |
Input Voltage/Hz | 105-130 VAC, 60 Hz |
Output Current | 41.5A, 45 A |
Output Power | 770W |
Over Current | Yes |
Over Temperature | Yes |
Over Voltage | Yes |
Replacement Board | WF-8945-MBA (Main Board Assembly, 45 Amps) |
Reverse Polarity | Yes |
Voltage Output | Lead Acid - 13.2 - 14.4V DC Range, Lithium-Ion - 13.2 - 14.6 VDC, 13.6 - 14.6 VDC |
