Description

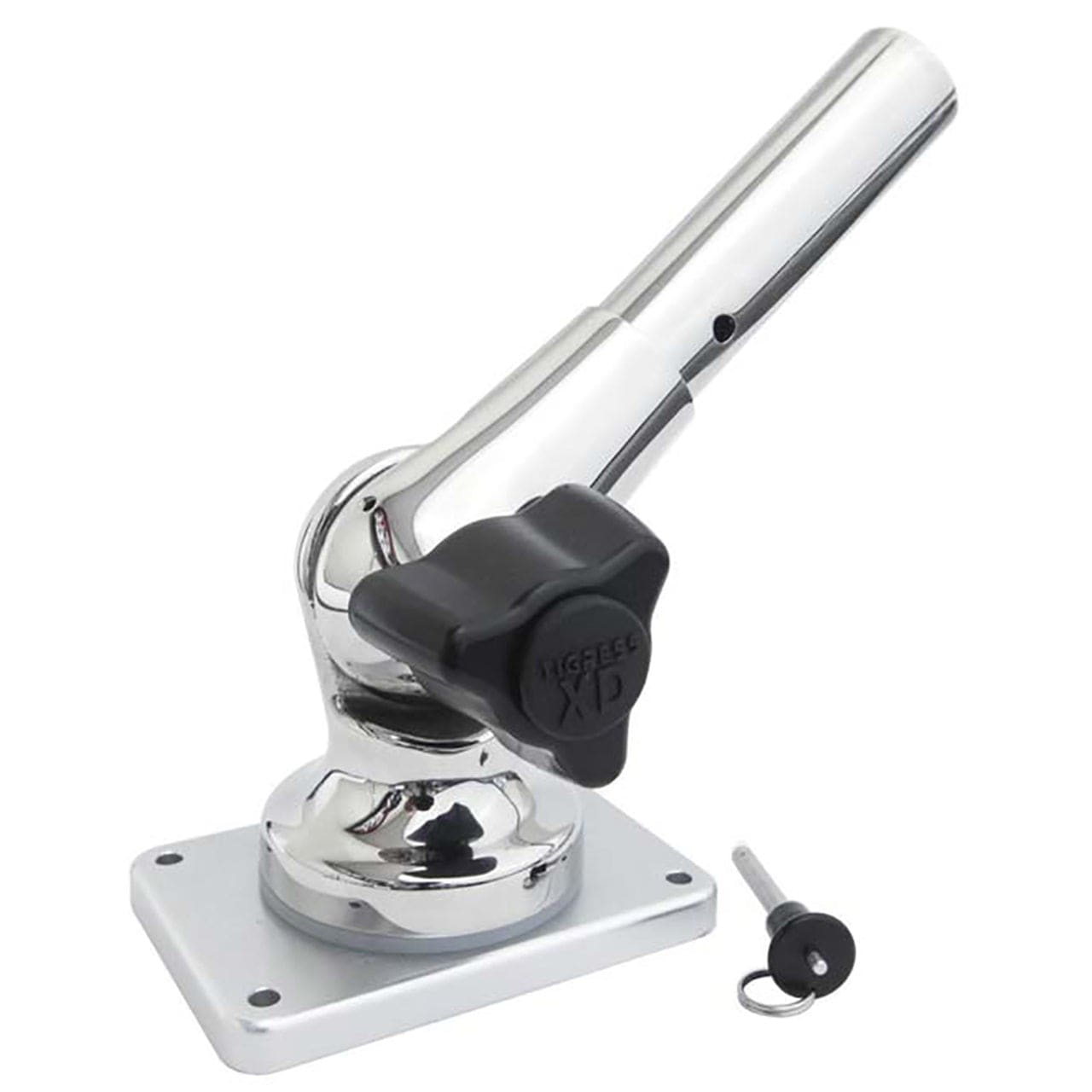

This is a 1-1/8” diameter XD center rigger top mount
- For use on sport fishing boats up to 40 feet
- Accepts all Tigress XD 1-1/8” butt diameter center riggers
- 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316 Stainless Steel tooth locking design with horizontal stops
- Large ‘XD’ Aluminum 12mm thick baseplate with four corner mounting
- Extreme-duty 316 Stainless Steel and anodized aluminum construction
- Ambidextrous mounting option to accommodate the side the tri-lobe knob is positioned on
- 1/4” through x 4.050” x 2.625” 4-bolt pattern
- Standard ¼” diameter stainless steel locking push-in-pin for outriggers
- Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
- 3-Year Limited Warranty
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Diameter | 1-1/8" |
| Material | Aluminum / Stainless-Steel |
| Warranty | 3 Year from Manufacturer |
