Description

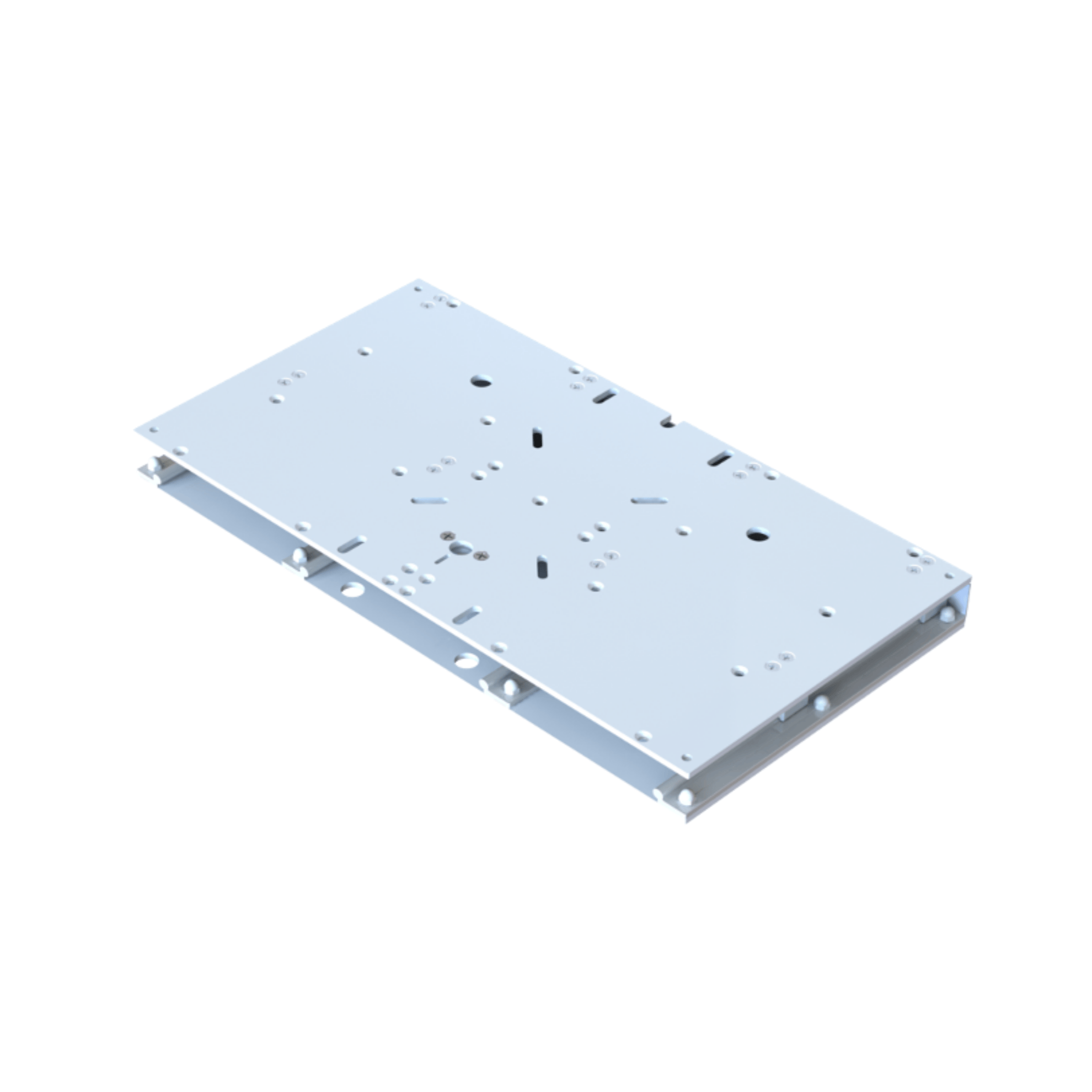

Electric Low Profile Adjustable Seat Slide, 13-1/8" X 24" Introducing a fully electric Low Profile Adjustable Seat Slide! Perfect for seats and benches 29" to 40" wide, this 13-1/8" X 24" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.
Features and Benefits
Ideal for seats 29" to 40"
Features 5" of travel distance (stroke length)
Water-resistant IP66 rating
Meets H31 testing standards for seat applications
Precision-machined 6000-series aluminum chassis
Rail/Linear Glide system are self-lubricating, dirt resistant, quiet, corrosion free, light weight and shock resistant
Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
Quiet operation ? 58dB
Electric actuator
Self-locking at any given position (at rated loads)
No racking in any direction due to precision tolerances in the track/glide system
All electric seat slides and components are acid etched clear anodized
Made in the USA
1-year limited warranty
Motor Specifications
12V DC 9 AMP Max current
Max load 3500N
Push and pull force of 1500N
IP66 Rated
Speed 13.5 mm/Sec @ 1500N
