Description

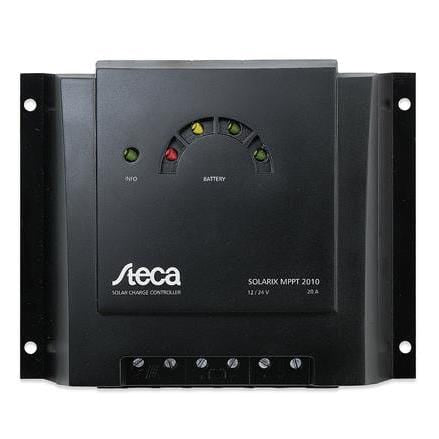

Steca Solarix MPPT 2010 20 Amp Solar Charge Controller. The Steca MPPT 2010 is a maximum power point tracker controller that optimally charges batteries and will work with thin film modules. It is specifically designed to connect PV-modules which are used in grid connection systems. The Steca MPPT 2010 is a reliable controller that provides maximum flexibility in module configuration. The new technology in this unit guarantees professional battery care combined with modern design and outstanding protection features.
Specifications
| ambient temperature | -25 degrees c...+50 degrees c |
| amps | 20 Amps |
| boost charge voltage | 14.4 v ( 28.8 v ) |
| deep discharge protection | <30% / 11.5 v (23.0v) |
| dimensions | 7.48""l x 5.9""w x 2.76""h (190mm l x 150mm w x 70mm h) |
| end of charge voltage | 13.9 v ( 27.8 v ) |
| equalize charge voltage | 14.9 v ( 29.8 v ) |
| max. efficiency | 0.97 |
| mpp voltage | >17v (>34v) |
| nominal power | 250 w ( 500 w ) |
| open circuit voltage solar | Module: 20 a |
| reset voltage (soc/lvr | > 50% / 12.5 v (25.0 v) |
| self consumption | 10 ma |
| system voltage | 12 v ( 24 v ) |
| weight | 1.98 lb (0.9 kg) |
