Description

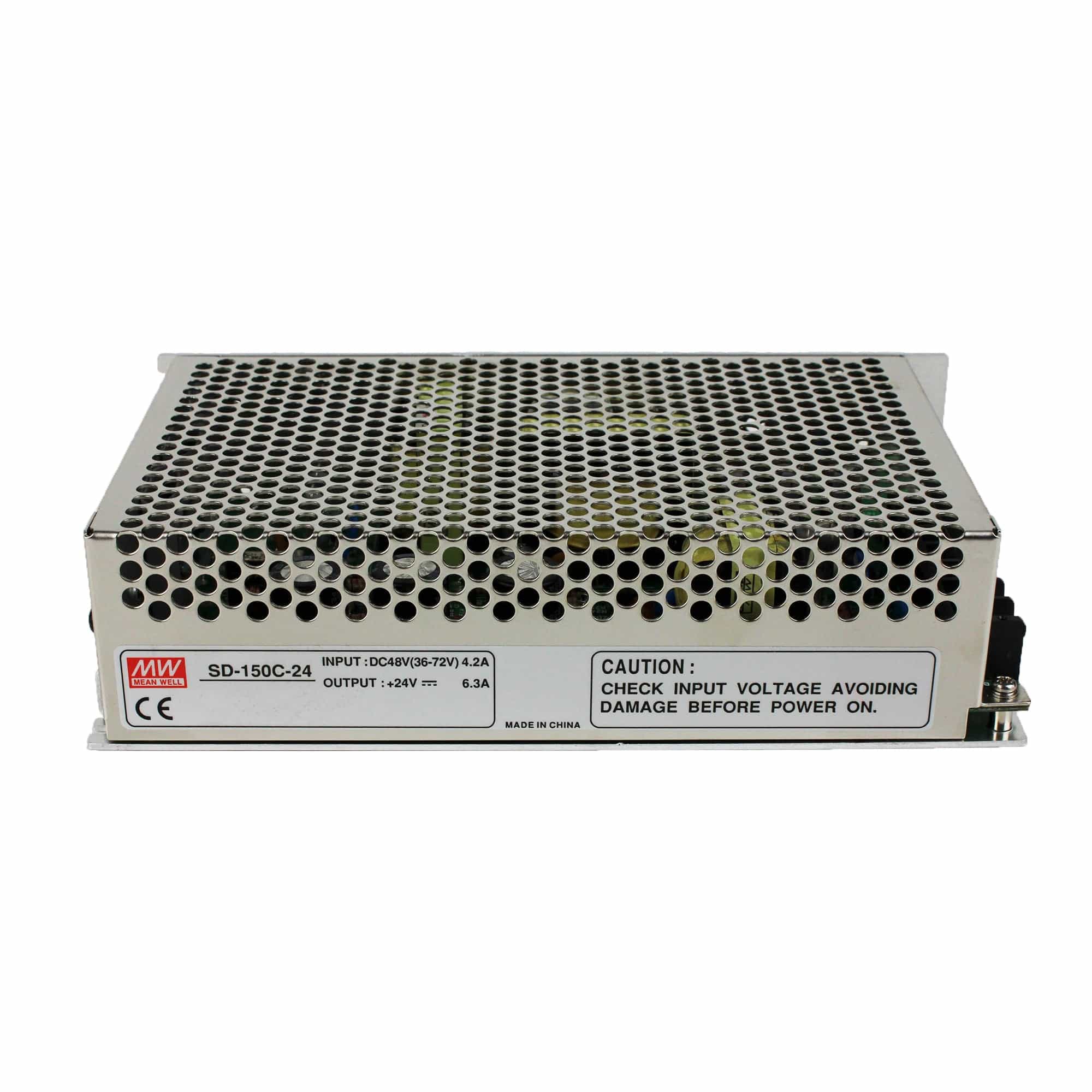

This is a 24-volt enclosed switching converter with screw terminal connections.
Features:
- Enclosed type DC/DC converter with screw terminal I/O connections
- Wide 2:1 input range
- Operating temperature: -10~+60°C1500Vac I/O isolation
- Protections: short circuit / over load / over voltage
- 2-year warranty
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Height | 50 mm |
| Input Voltage | 36 V to 72 V |
| Input Voltage, Max | 72 V |
| Input Voltage, Min | 36 V |
| Isolation Voltage | 1.5 kV |
| Length | 199 mm |
| Max. Operating Temperature | + 60 C |
| Min. Operating Temperature | - 10 C |
| Mounting Style | Chassis |
| Number of Outputs | 1 Output |
| Output Current-Channel 1 | 6.3 A |
| Output Power | 151.2 W |
| Output Voltage-Channel 1 | 24 V |
| Warranty | 2 Year Warranty from Manufacturer |
| Width | 110 mm |
