Description

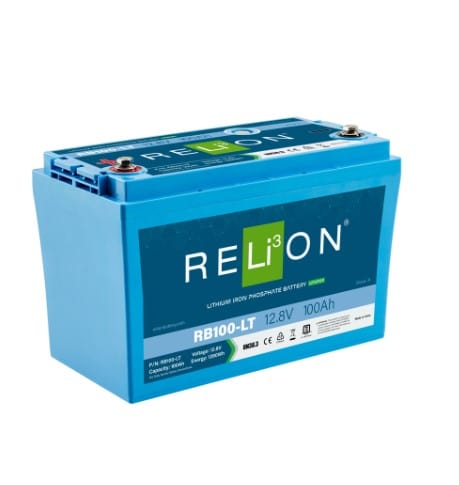

The RB100-LT is an ideal choice for use in RVs, off-grid solar, electric vehicles, and in any application where charging in colder temperatures is necessary. RELiON’s Low-Temperature Series lithium iron phosphate batteries can safely charge at temperatures down to -20°C (-4°F) using a standard charger. These items ship directly from the manufacturer.
|
ELECTRICAL SPECIFICATIONS |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 100 Ah |
| Capacity @ 25 A | 240 min |
| Energy | 1280 Wh |
| Resistance | ≤30 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Batteries Connected in Series | 1 (Single-Use) |
|
MECHANICAL SPECIFICATIONS |
|
|---|---|
| Dimensions (L x W x H) | 13 x 6.8 x 8.4” (329 x 172 x 214 mm) |
| Weight | 27.9 lbs (12.64 kg) |
| Terminal Type | M8 x 1.25 |
| Terminal Torque | 80 - 100 in-lbs (9 - 11 N-m) |
| Case Material | ABS |
| Enclosure Protection | IP67 |
| Cell Type - Chemistry | Cylindrical - LiFePO4 |
