Description

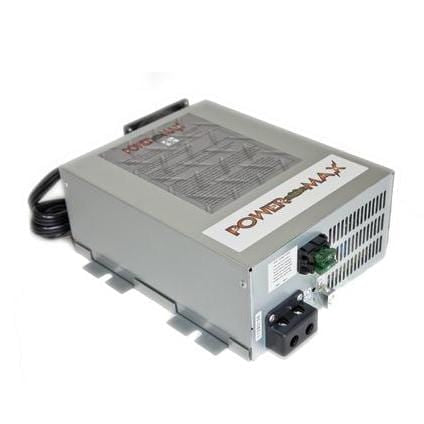

The Powermax PM3-30-24 is a 30 amp, 24 volt, converter charger with 3 stage automatic smart batter charger.
Specifications
| ac current | @108vac: 9 amps |
| amps | 30 Amps |
| dc output | No Load Approx. 27.2v DC |
| dimensions | 5"L x 10.5"W x 4"H |
| efficiency | >85% |
| input frequency | 47-63 |
| input voltage range | 105-135 ac |
| line regulation | 100mv ms |
| load regulation | <1.0% |
| maximum power output | 820 watts |
| output amps | 30 amps |
| output voltage | 24 Volts |
| output voltage tolerance | No Load Approx. +/- .7% |
| overload protection | >100% |
| stages | 3 Stage |
| storage temperature | -20 to 80c |
| weight | 9 lbs |
| withstand voltage | 1240v @ leads |
| working temp | 0-45c |
