Description

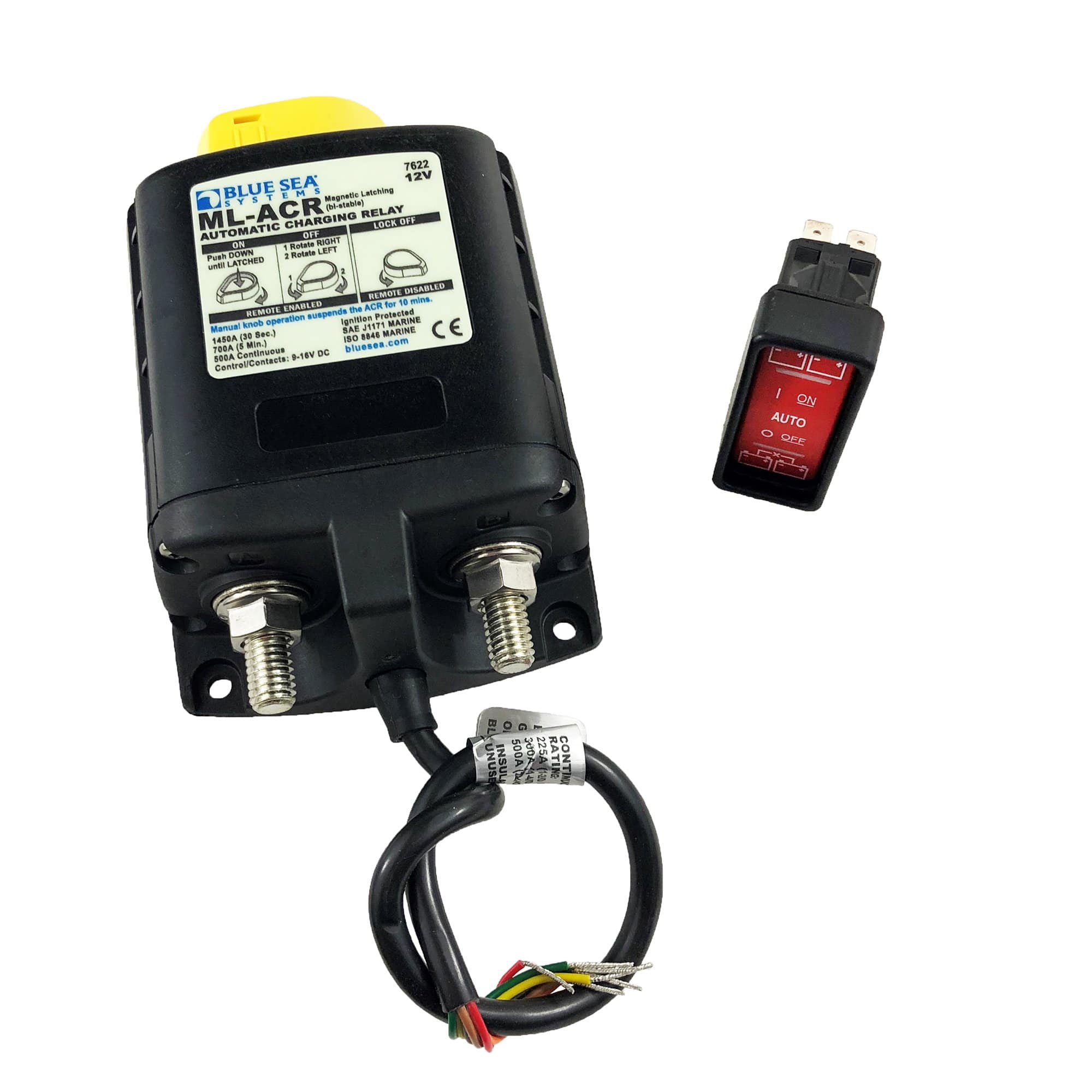

The 7622-BSS is a ML-ACR 12V, DC, 500A, automatic charging relay with manual control
Specifications
| amperage operating current | 13mA |
| cable size to meet ratings | 4/0 AWG x 2 |
| changing state amp current | <7.0A |
| continuous rating | 500A |
| control circuit connection | Tinned Wire |
| cranking rating (30 sec) | 1450A DC |
| engine isolation | Yes |
| intermittent rating | 700A (5 min) |
| live current switching | 300A @ 12V DC |
| manual control | Yes |
| maximum operating temperature | 60┬░ C |
| minimum operating temperature | -10┬░ C |
| mounting | #10 |
| nominal voltage | 12V DC |
| start assist | Yes |
| start isolation | Yes |
| stud material | Tinned Copper |
| switching cycles | 100000 |
| terminal ring dia. clearance | 1.12in (28.45 mm) |
| terminal stud length | 140 in-lb (15.82 Nm) |
| terminal stud size | 3/8" - 16 (M10) |
| wire size | 20 AWG |
